LC Meter (Positive Displacement): The Industry Benchmark for High-Accuracy Marine Fuel Measurement

Introduction: In the maritime industry, where fuel constitutes the largest single operational expense, precise measurement is not just a matter of good practice—it is a critical pillar of cost control, energy efficiency, and regulatory compliance. Every drop of fuel must be accounted for, from bunkering to consumption. With a variety of Flow meter technologies available, a crucial question arises for ship operators and engineers: which device offers the most reliable and accurate data, especially under the demanding conditions of marine operations?

Among the contenders, the Positive Displacement (PD) Flow meter, and specifically trusted brands like the LC Meter, has earned a reputation as the gold standard for measuring viscous fluids like Heavy Fuel Oil (HFO). But why is this the case? This article provides an in-depth analysis of the LC Meter's advantages, compares its working principles to the common turbine meter, and offers a practical guide to selecting the right technology for your vessel's specific needs.

A Tale of Two Principles: PD vs. Turbine Flow Meters

To understand why one meter excels where another falters, we must first look at their fundamental operating mechanisms.

1. The Principle of the Positive Displacement (PD) Meter

A PD meter operates like a highly precise fluid engine. Its core mechanism involves a measuring chamber with meticulously machined moving components (such as gears, vanes, or rotors). As fluid enters the meter, it fills the chamber and physically displaces the components. This motion traps and isolates a precise, known volume of fluid. The fluid is then discharged as the chamber rotates. The flow rate is determined by simply counting the number of times the chamber is filled and emptied. Each rotation of the internal rotors corresponds directly to a fixed volume of fluid passing through.

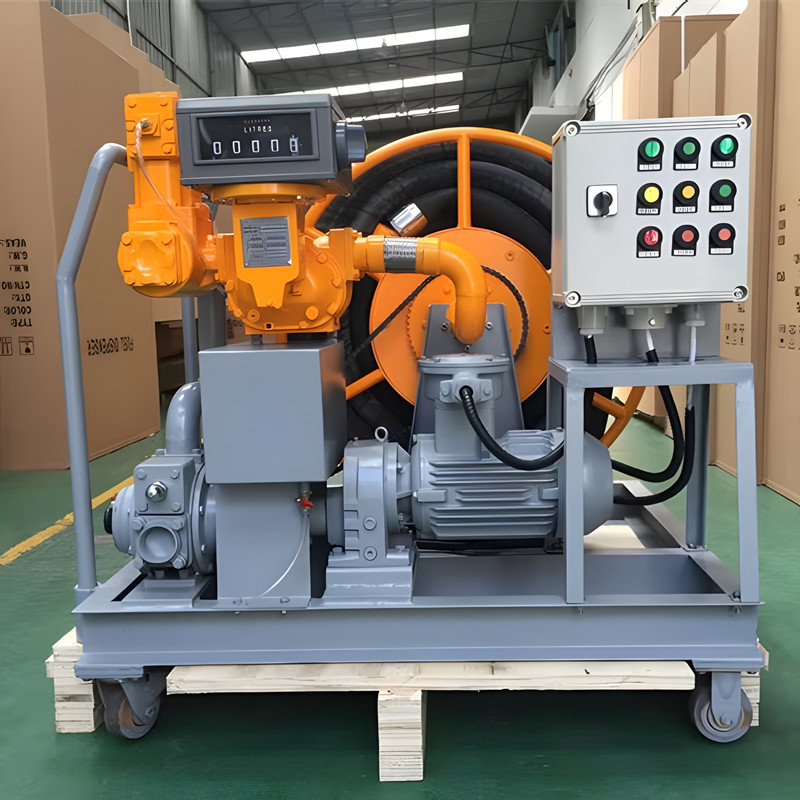

The LC Meter is a classic example of a high-precision PD meter, where the accuracy is rooted in this direct, physical measurement of volume.

(Visual Suggestion: Imagine two interlocking gears in a tight-fitting housing. As liquid is forced through, it fills the spaces between the gear teeth and the housing, causing the gears to rotate. Each rotation transfers a fixed pocket of liquid from the inlet to the outlet.)

2. The Principle of the Turbine Meter

A turbine meter works on a completely different principle. It contains a multi-bladed rotor (a turbine) suspended in the flow path. As fluid flows past, it imparts kinetic energy to the blades, causing the rotor to spin. The rotational speed of the turbine is directly proportional to the velocity of the fluid. By measuring the speed of this rotation electronically (often with a magnetic pickup sensor), the meter calculates the volumetric flow rate. Its measurement is therefore an inferred one, based on fluid dynamics.

Core Advantages of the LC Meter (PD) in Marine Applications

This is where the distinction in principles translates into significant real-world advantages for PD meters in the maritime sector.

1. Superior Performance with Viscous Fluids

Industry Insight: The lifeblood of many large vessels is Heavy Fuel Oil (HFO) or Marine Diesel Oil (MDO). At ambient temperatures, these fuels can be extremely viscous, behaving more like molasses than water. This is the single greatest challenge for many flow meters, but it's where the PD meter excels.

PD Advantage: Because a PD meter measures by physically displacing volumes, it is largely immune to changes in fluid viscosity. The fluid's thickness does not alter the fixed volume of the measuring chamber. In fact, within a certain range, higher viscosity can actually improve the meter's performance by enhancing the capillary seal between the rotors and the chamber wall, minimizing internal leakage (slippage) and thereby increasing accuracy.

Turbine Contrast: A turbine meter's performance is highly dependent on viscosity. As viscosity increases, the fluidic drag on the turbine blades rises significantly. This increased resistance slows the rotor's rotation, especially at lower flow rates. The meter's electronics, calibrated for a lower-viscosity fluid, will interpret this slower rotation as a lower flow rate, leading to severe under-measurement and substantial financial losses over time.

Pro Tip: For fuels with highly variable viscosity-temperature characteristics, pair a PD meter with a viscometer and temperature sensor. This allows for real-time temperature compensation to convert the measured volume into a highly accurate mass flow value, which is the ultimate standard for fuel consumption and emissions reporting.

2. Exceptional Low-Flow and Start-Stop Measurement

Industry Insight: A ship's engine does not always run at full power. During maneuvering, in-port operations, or low-load sailing, fuel consumption can drop to a fraction of its service speed rate. These low-flow conditions are notoriously difficult to measure accurately.

PD Advantage: The LC Meter shines in this scenario. The direct force of the fluid displacement is sufficient to move the rotors even at a trickle. This means PD meters have an extremely low minimum flow requirement and can maintain their high accuracy across a very wide operational range, capturing every drop of fuel consumed during start-up, shutdown, and low-power states.

Turbine Contrast: Turbine meters have a distinct "cut-off velocity." Below this minimum flow rate, there is simply not enough kinetic energy in the fluid to overcome the mechanical and viscous drag to make the rotor spin. Any flow below this threshold goes completely unrecorded. This "missed fuel" can accumulate into a massive discrepancy over the course of a voyage, distorting fuel efficiency calculations and inventory management.

3. High Accuracy and a Wide Turndown Ratio

PD Advantage: By their very nature, PD meters are among the most accurate flow meters available, with accuracies often reaching ±0.1% of reading. Just as importantly, they maintain this accuracy over a wide range of flow rates. This is described by the "turndown ratio"—the ratio of the maximum to the minimum flow rate the meter can accurately measure. PD meters commonly offer turndown ratios of 10:1 or even higher, making them perfectly suited to handle a vessel's entire operational profile, from full-ahead to idle.

Turbine Contrast: While a turbine meter can be very accurate within its designed optimal flow range, its turndown ratio is typically narrower. As the flow rate moves toward the upper or lower ends of its range, its accuracy tends to decline more rapidly than that of a PD meter.

4. Insensitivity to Changing Fluid Properties

PD Advantage: Since a PD meter measures a fixed, physical volume, its reading is less affected by shifts in the fluid's density or viscosity (though temperature compensation is still needed to calculate mass). It provides a reliable volumetric reading regardless of whether the fuel is hot and thin or cool and thick.

Turbine Contrast: The performance of a turbine meter is linked to the fluid's properties. Changes in density, viscosity, and temperature all affect the fluid dynamics and the interaction with the rotor blades, directly impacting the measurement. This requires more extensive and complex calculations to compensate for these variables and maintain accuracy.

Where Turbine Meters Fit: Applications and Limitations

To provide a balanced perspective, turbine meters have their place. Their strengths, however, highlight why they are often less suitable for heavy fuel applications.

Turbine Advantages:

Clean, Low-Viscosity Fluids: They perform exceptionally well when measuring clean, stable, and low-viscosity fuels like Marine Gas Oil (MGO) or distillates.
High Flow Rates: In applications with steady, high-velocity flow, they can provide excellent accuracy and repeatability.
Cost and Pressure Drop: They generally have a lower initial purchase cost and a simpler, less obstructive internal design, which results in a lower pressure drop across the meter.

Turbine Limitations:

Vulnerability to Contamination: Particulate matter in the fuel can easily damage the delicate bearings and rotor blades, altering the meter's calibration factor or, in worst-case scenarios, causing the rotor to seize completely. This necessitates the installation and maintenance of fine-mesh filters.
Requirement for Straight Pipe Runs: Turbine meters are highly sensitive to flow profile disturbances. For an accurate reading, they require long, straight sections of pipe both upstream and downstream to ensure the flow is stable and non-swirling. This can be a significant installation constraint in the cramped machinery spaces of a vessel. PD meters are far more tolerant of non-ideal piping configurations.

A Practical Guide: Choosing the Right Meter for Your Vessel

Use this checklist to guide your decision-making process:

What fuel are you measuring?
- Heavy Fuel Oil (HFO) / Sludge: The choice is clear. A Positive Displacement meter like the LC Meter is the premier solution.
- Light Oils (MGO/MDO): Both technologies are viable. Your decision should be based on the following factors.
What is the flow range?
- Highly Variable (frequent low-load, start-stop): A PD meter is strongly preferred to capture the full range accurately.
- Stable and Consistently High Flow: A turbine meter can be considered as a cost-effective option.
What is your budget and maintenance philosophy?
- Focus on long-term accuracy and stability, budget allows: A PD meter is a superior long-term investment.
- Limited initial budget, clean fluid, and capacity for regular calibration: A turbine meter may suffice.
What are the installation constraints?
- Limited space, no room for long, straight pipe runs: The PD meter's tolerance for such conditions makes it the better choice.

Frequently Asked Questions (FAQ)

Q1: What is the relationship between an "LC Meter" and a "PD meter"? A: LC Meter is a well-known brand name, while PD (Positive Displacement) Meter is the technical category describing its working principle. The relationship is like that of "iPhone" to "smartphone." In this article, we use LC Meter as a representative of high-quality, reliable PD meter technology.

Q2: Why are PD meters typically more expensive? A: Their higher cost stems from the high-precision manufacturing required for the internal measuring chamber and rotors. The materials and machining tolerances are exacting to ensure high accuracy and long life. However, the fuel savings from their sustained accuracy and reliability provide a rapid return on this initial investment.

Q3: Do PD meters require frequent maintenance? A: They require periodic maintenance, but the intervals are generally long. Maintenance typically involves inspecting the rotors and chamber for wear or obstruction and cleaning if necessary. This is far less frequent than the potential bearing maintenance or replacement required for turbine meters operating in less-than-ideal conditions.

Q4: Can I use just one flow meter to monitor all fuel consumption? A: It is not best practice. The recommended approach is a dual-meter system: one high-precision PD meter on the main engine supply line to measure consumption, and another larger PD meter on the bunkering line for fuel transfers. This ensures accurate consumption data and allows for cross-verification during bunkering, protecting you from costly disputes.

Q5: How can flow data be integrated into ship management systems? A: Modern fuel flow meters are equipped with pulse or analog (e.g., 4-20mA) outputs and support standard communication protocols like Modbus. This allows for seamless integration of real-time flow data into a vessel's Fuel Monitoring System (FMS), Energy Efficiency Management System (EEMS), or central alarm system for monitoring, logging, and reporting.

Conclusion

In selecting a fuel flow meter for marine applications, there is no one-size-fits-all answer, but there is always a most suitable choice. When dealing with the industry's most challenging and common fuels—viscous heavy oils—and the complex, variable operational demands of a modern vessel, the Positive Displacement meter, exemplified by the LC Meter, stands as the undisputed premier solution.

Its inherent immunity to viscosity effects, its outstanding performance at low flow rates, and its sustained high accuracy provide an overwhelming advantage. Investing in a high-quality PD flow meter is a strategic decision that pays dividends in accurate fuel data, robust cost control, and confident adherence to environmental regulations. It is the cornerstone of any effective fuel management strategy.
