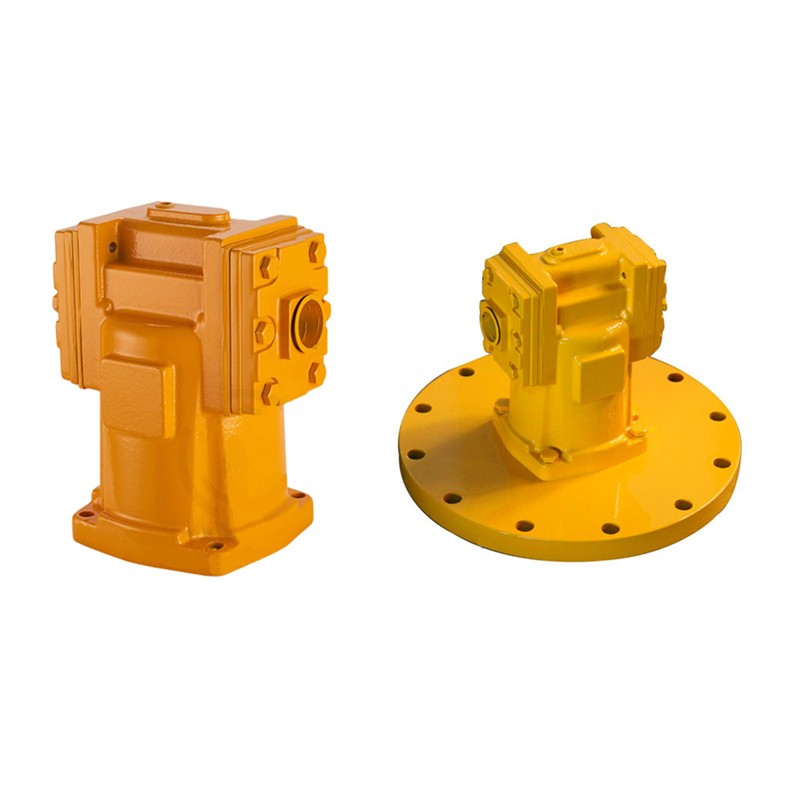

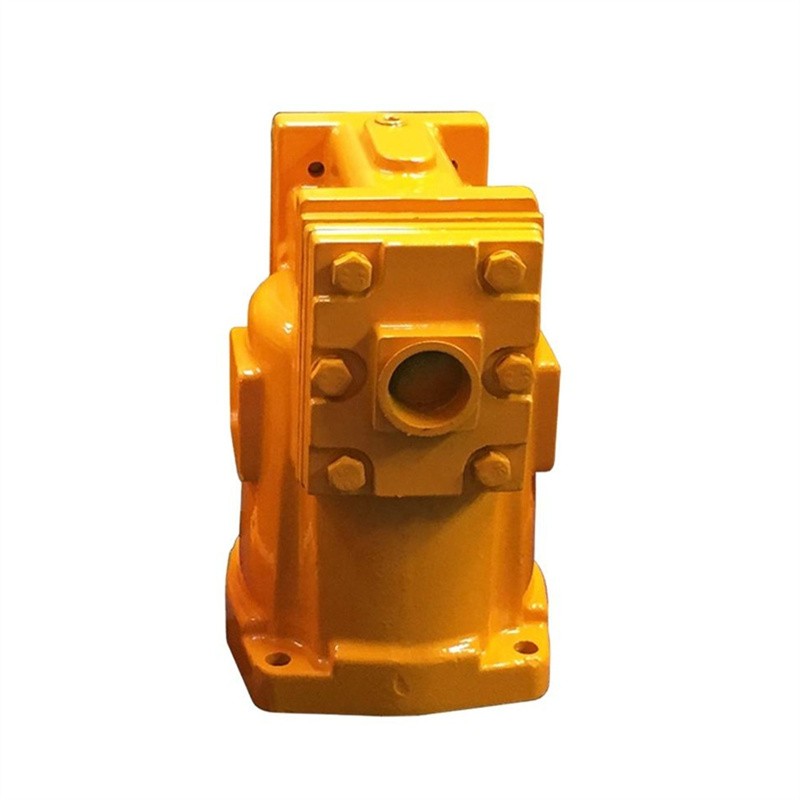

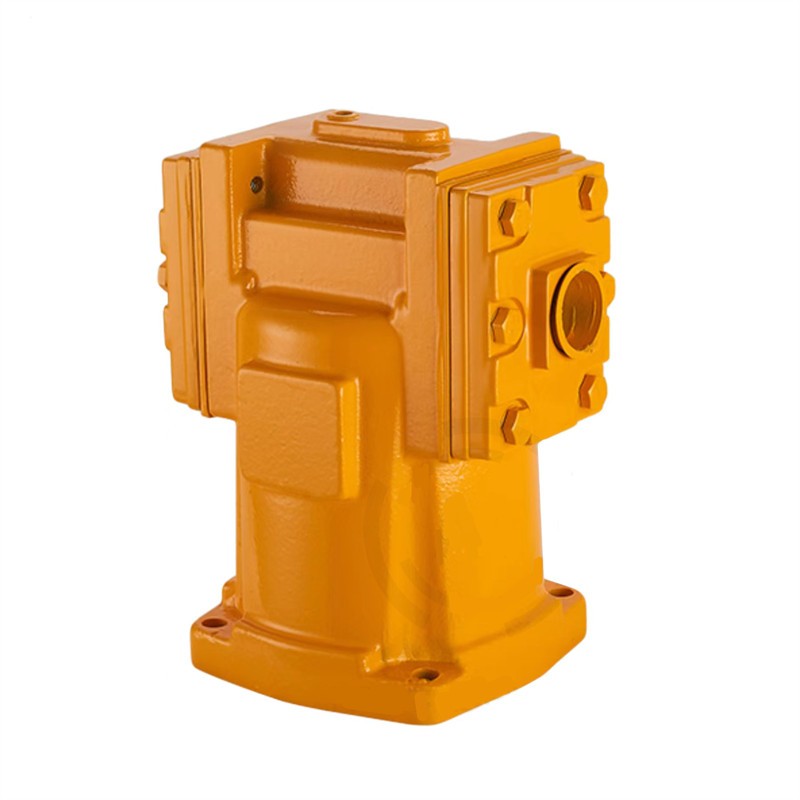

FL Series Air Eliminator for PD Flow meters (Aluminum / Cast Iron / Stainless Steel)
Ensure Precision Metering with Advanced Air and Vapor Elimination
The FL Series Air Eliminator is an essential component for protecting the accuracy and longevity of positive displacement (PD) Flow meters. Designed to remove air and vapor from metering systems, this device ensures that only pure liquid passes through the meter, eliminating measurement errors caused by gaseous phases. Its robust construction and intelligent mechanical design make it ideal for use with diesel, gasoline, fuel oil, heating oil, solvents, and other industrial fluids.
Key Features
-
Efficient Air/Vapor Removal: Utilizes an internal float mechanism connected to stainless steel reeds. When the system is filled with liquid, the float rises, closing the vent ports. When air or vapor enters, the float drops, opening the ports to direct gases to a recovery line or storage tank.
-
Durable Material Options:
-
Aluminum: Suitable for M-Series PD flow meters, operating at pressures up to 150 PSI (10.5 bar).
-
Hard-Anodized Aluminum: Optimized for high-pressure applications (up to 350 PSI or 25 bar) with MA-Series meters in Class 10 services, including LPG.
-
Stainless Steel: Compatible with M-Series meters for corrosive liquids or acidic pH environments, rated for 150 PSI (10.5 bar).
-
-
Seamless Integration: Designed for easy connection to vapor recovery lines, ensuring compliance with environmental and safety standards.
-
Low Maintenance: Simple mechanical operation with minimal moving parts reduces the need for frequent servicing.
Technical Specifications
-
Materials: Aluminum, Cast Iron, Stainless Steel
-
Compatible Media: Diesel, Gasoline, Fuel Oil, Heating Oil, Solvents
-
Weight: 2.5 kg
-
Pressure Ratings:
-
Standard Aluminum: 150 PSI (10.5 bar)
-
Hard-Anodized Aluminum: 350 PSI (25 bar)
-
Stainless Steel: 150 PSI (10.5 bar)
-
Applications
-
Fuel dispensing and custody transfer systems
-
Lubricant and solvent metering
-
Chemical processing and industrial batching
-
LPG and hydrocarbon service
Why Choose the FL Series Air Eliminator?
By preventing air and vapor from interfering with meter operations, the FL Series ensures consistent accuracy and protects downstream equipment. Its versatile material options allow customization for specific fluids and operating conditions, making it a reliable choice for critical metering applications.
