Description

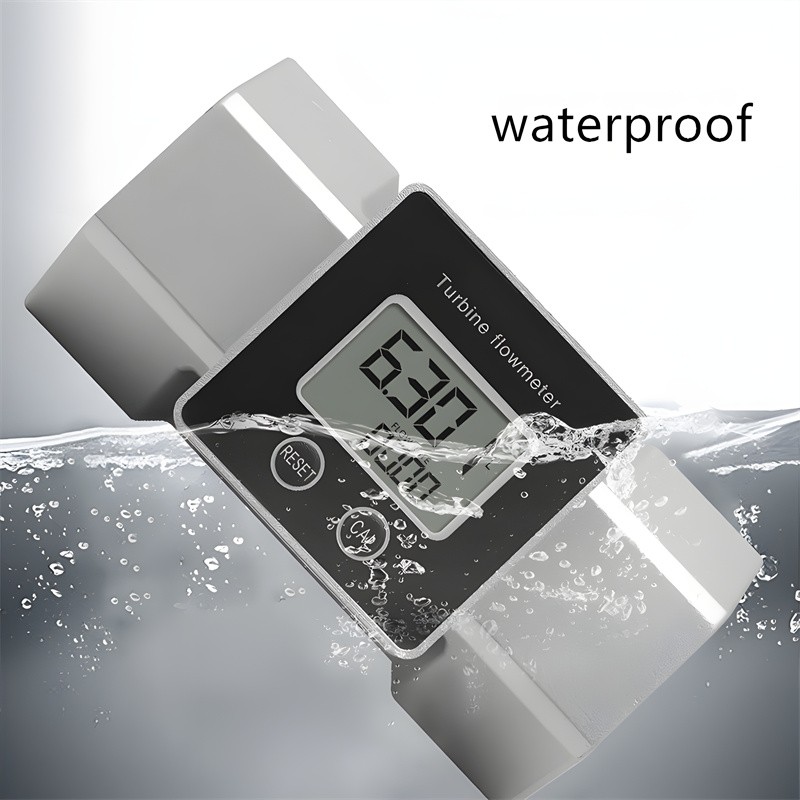

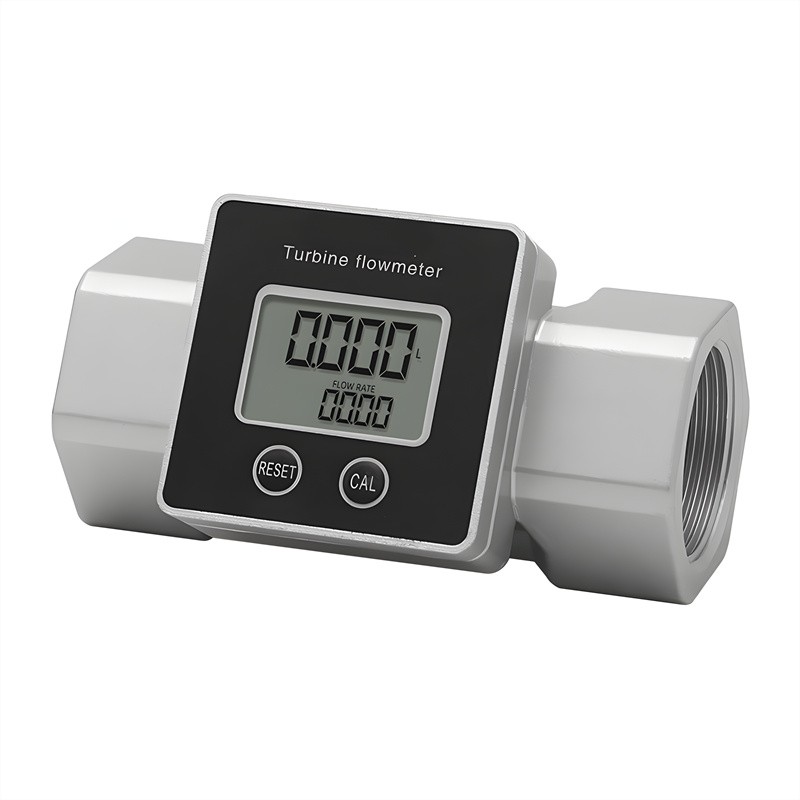

The Electronic Turbine Flowmeter is a high-performance flow measurement device engineered for precision and durability. Constructed with a robust combination of 304 Stainless Steel, Aluminum Alloy, and Tungsten Steel components, it ensures reliable operation across a wide range of industrial and commercial applications. Designed with versatility in mind, it is available in multiple diameters—0.75 inch, 1 inch, 1.5 inch, and 2 inch—to accommodate various flow requirements. Its internal threaded connection simplifies installation and guarantees a secure fit.
With an exceptional measurement accuracy of ±0.5% and repeatability of ±0.3%, this flowmeter delivers consistent and trustworthy data for both instantaneous and cumulative flow monitoring. The integrated electronic LCD display provides real-time visibility into flow rates, while the low-power design ensures extended operation when battery-powered. Additional functionalities include data reset capabilities and storage for up to 10 historical records.
Ideal for use with water, diesel, gasoline, and lightly corrosive chemical liquids, this flowmeter is widely employed in industrial factories, petrol stations, municipal water supply systems, and agricultural manufacturing. Optional customization for 485 signal output is available to meet specific integration needs.
Detailed Specifications
Flow meter Type: Electronic Turbine Flowmeter
Material: 304 Stainless Steel, Aluminum Alloy, Tungsten Steel
Diameter Options: 0.75 inch, 1 inch, 1.5 inch, 2 inch

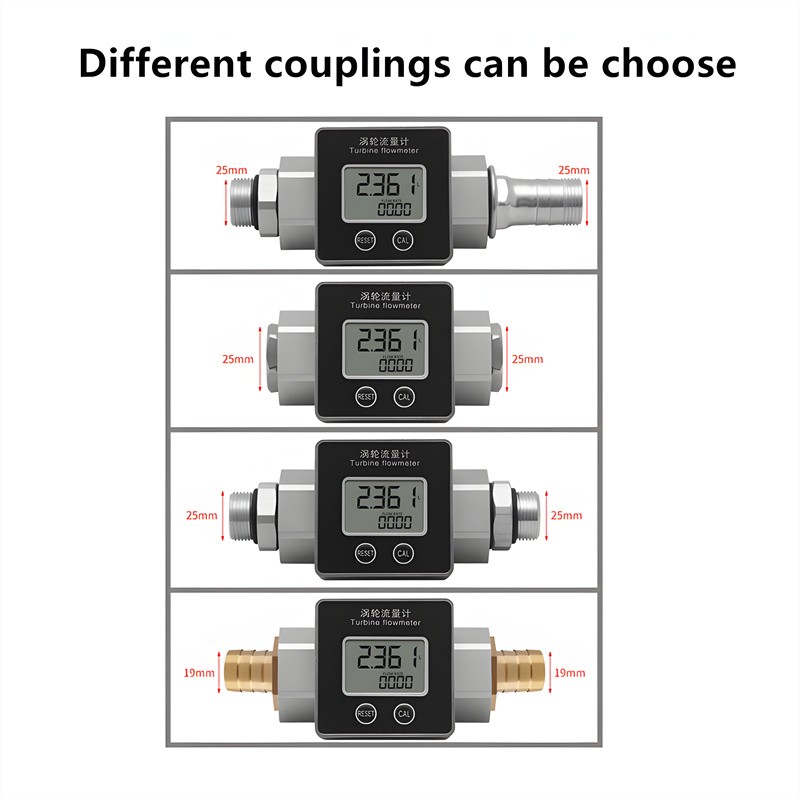

Connection Type: Internal Threaded Connection
Flow Rate Range:
0.75 & 1 inch: Minimum 10 L/min – Maximum 120 L/min
1.5 inch: Minimum 25 L/min – Maximum 250 L/min
2 inch: Minimum 30 L/min – Maximum 300 L/min
Measurement Accuracy: ±0.5%
Repeatability: ±0.3%
Display: Electronic LCD Screen
Display Features:
Real-time instantaneous flow rate
Total accumulated flow volume
Supports data reset
Stores up to 10 historical records
Features:
Anti-corrosion construction
High precision real-time measurement
Battery-powered operation
Low power consumption
Compatible Media:
Water
Diesel
Gasoline
Chemical liquids (with mild corrosion)
Optional Customization:
485 signal output (available upon request)
Applications
This turbine flowmeter is suitable for a wide range of industries and fluid types, including:
Industrial Factories: Monitoring coolant, fuel, and process liquids.
Petrol Stations: Measuring dispensed fuels accurately.
Municipal Water Plants: Tracking water distribution and usage.
Agricultural Manufacturing: Controlling irrigation and chemical dosing systems.
Chemical Processing: Handling mildly corrosive liquids with reliability.
Notes:
Default configuration includes no output signal.
485 signal output requires customization.
Suitable for mildly corrosive environments thanks to corrosion-resistant materials.
