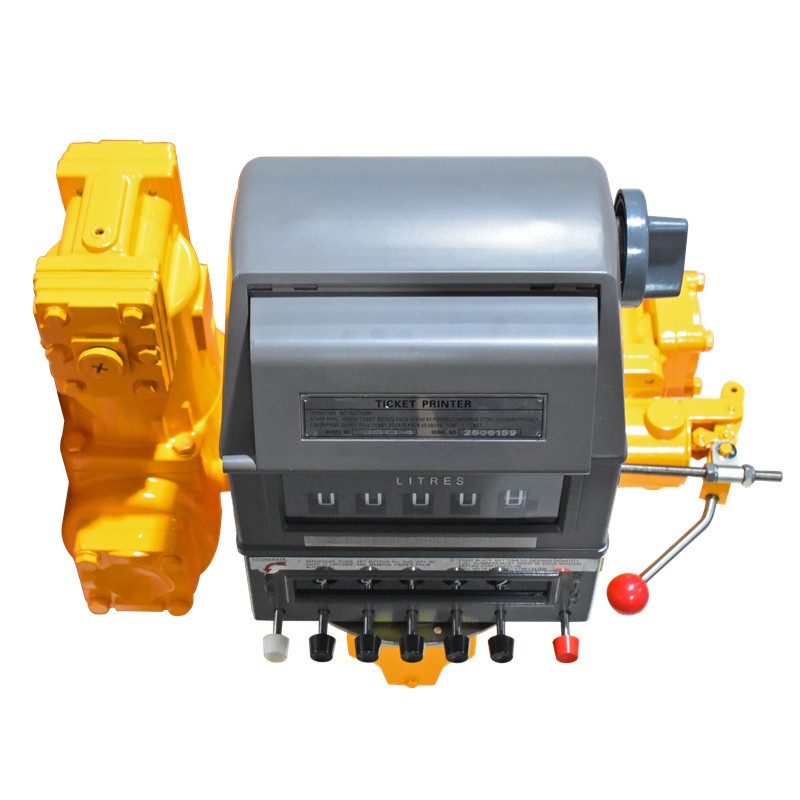

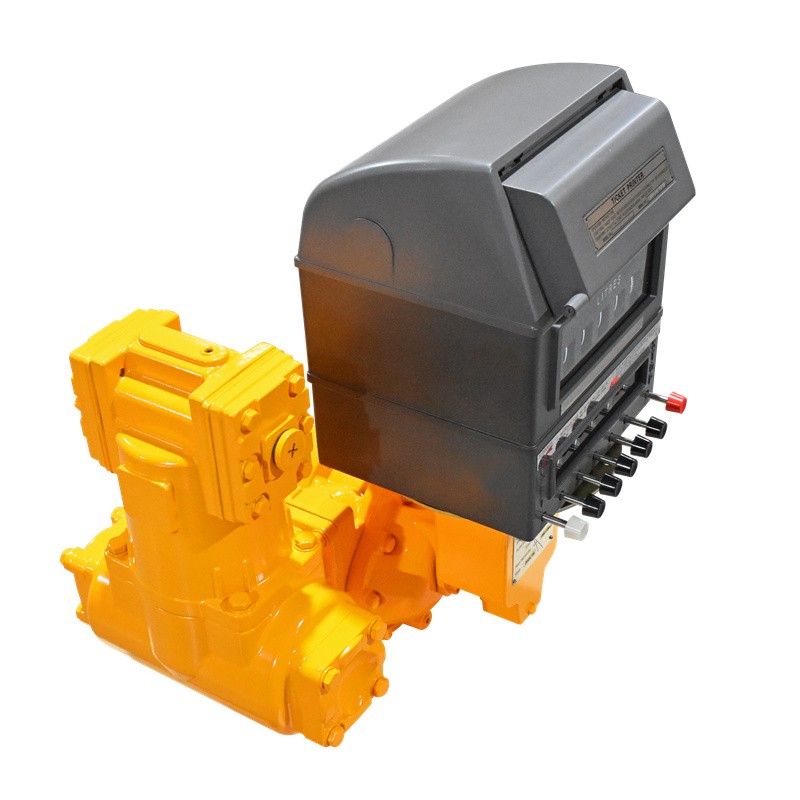

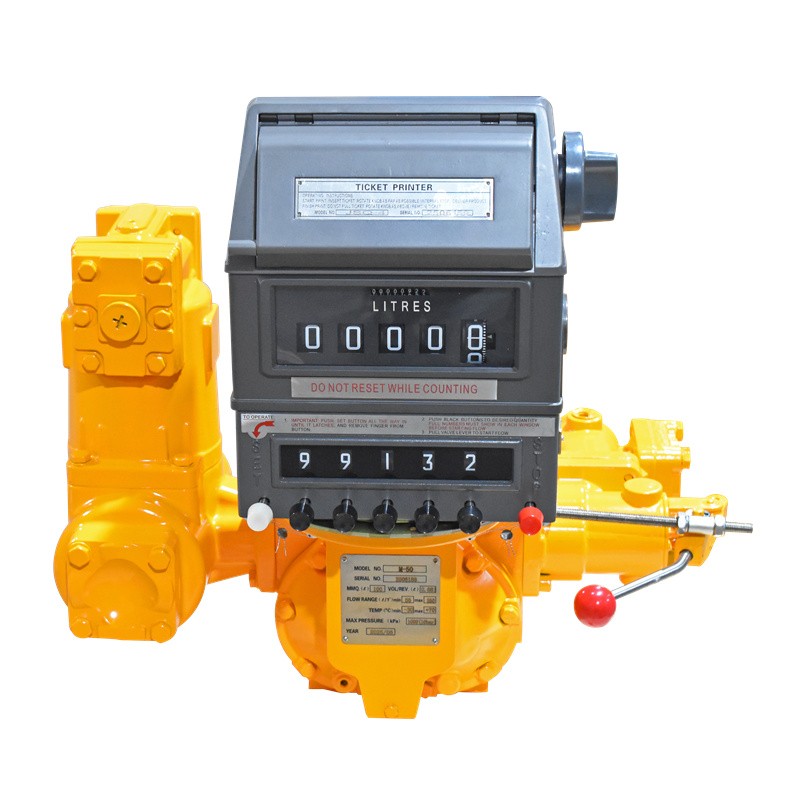

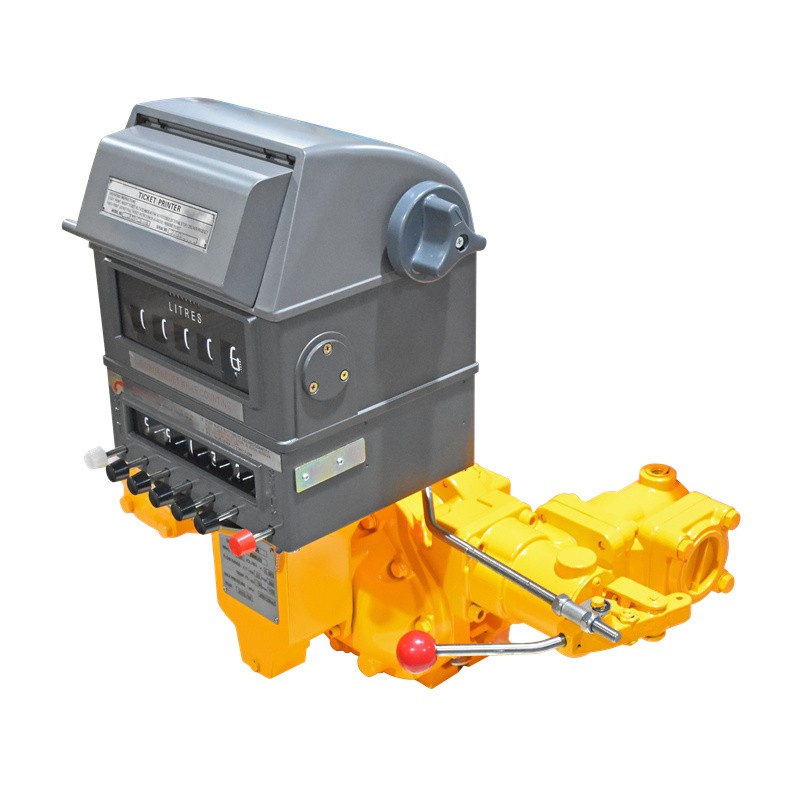

LC Positive displacement Flow meter with Bypass Valve gallon
Positive Displacement Flow meter: Advanced Design and Applications
The Positive Displacement (PD) flow meter is engineered with a precision-measuring chamber and a non-contact drive mechanism, ensuring minimal wear and extended operational lifespan. This innovative design enables low-pressure loss operation, effectively functioning under gravity-driven flow conditions. Its performance remains unaffected by fluctuations in pressure, temperature, or fluid viscosity, delivering exceptional accuracy and repeatability across a broad range of flow rates.
Key Features
Precision Engineering
Equipped with a stepless adjustment mechanism for fine-tuning measurements.
Maintains high accuracy at constant flow and wide-ranging flow dynamics.
Durability and Low Maintenance
Non-metallic contact components in the measuring chamber eliminate friction-related wear.
Cast iron body ensures robustness against harsh environments.
Efficiency and Versatility
Low-pressure loss design optimizes energy efficiency.
Independent performance under varying pressure, temperature, and viscosity conditions.
Integrated Functionalities
Resettable totalizer and special dosing totalizer for precise volume tracking.
Built-in shut-off valve and air filter enhance safety and reliability.
Top-mounted printer for real-time data recording.
Micro-calibration capability for fine adjustments.
Applications
Oil and Lubricant Systems: Accurate dosing in industrial lubrication processes.
Fuel Dispensing: Reliable measurement for gasoline, diesel, and other fuels.
Industrial Monitoring: High-precision flow tracking in manufacturing and chemical industries.
Process Automation: Efficient distribution and control of lubricants in automated systems.
Advantages
Minimal Maintenance: Long-term reliability with reduced downtime.
Adaptability: Suitable for viscous fluids and fluctuating operational conditions.
Cost-Effective: Low-pressure loss reduces energy consumption.
| Technical Specification | |||||||||
| Model | M-40-1 | M-50-1 | M-50H-1 | M-80-1 | M-80H-1 | M-100-1 | M-100H-1 | M-150-1 | M-150H-1 |
| Size | 40mm / 1.5 | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 " | ||||
| Flow Range | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
| (L/Min) | |||||||||
| Volume /Rev. | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
| Max. Pressure | 10Bar/150PSI | 25Bar/350PSI | |||||||
| Accuracy | 0.20% | ||||||||
| Repeatability | 0.05% | ||||||||
| Standard Measurement | Liter / US Gallon/IMP Gallon | ||||||||
| Viscosity | 30SSU~1,500,000SSU | ||||||||
| Packaging Data | |||||||||
| Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 | ||||
| Packaging | 1 pc/Wooden Case | ||||||||
| Net Weight | 23Kgs | 26Kgs | 40Kgs | 70Kgs | 130Kgs | ||||
| Gross Weight | 35Kgs | 38Kgs | 55Kgs | 90Kgs | 155Kgs | ||||
| Size | 53x48x53cm | 53x48x53cm | 58x50x61cm | 76x64x72cm | 80x65x79cm | ||||
