Description

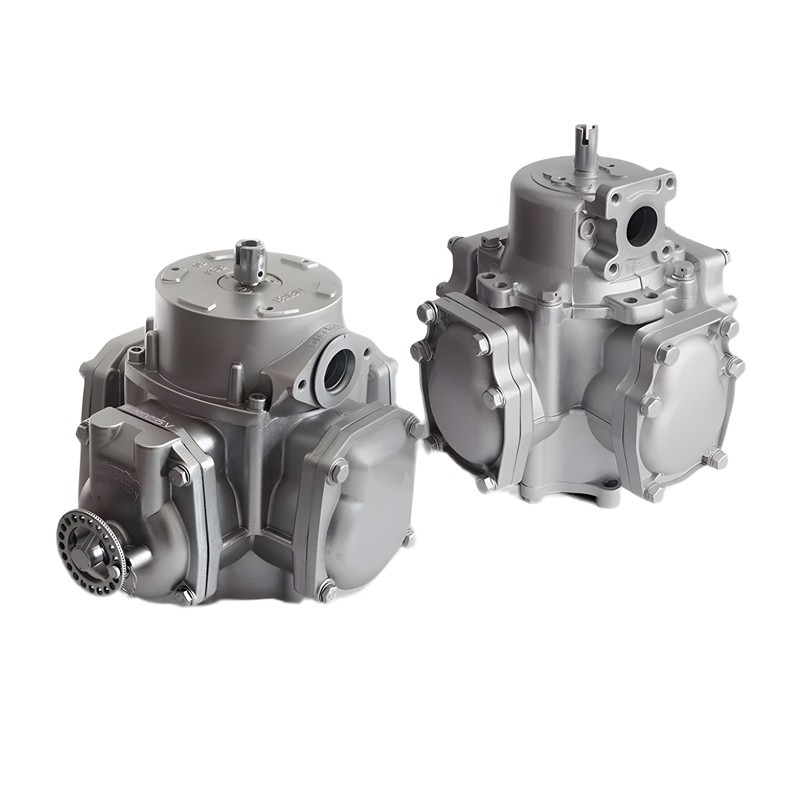

RSJ-50 Flow meter
The volume Flow meter is designed to measure the volume of fuel passing through the column and is a four-cylinder hydraulic engine driven by the fuel flowing through it. In this case, the amount of fuel flowing is converted into the number of revolutions of its shaft.

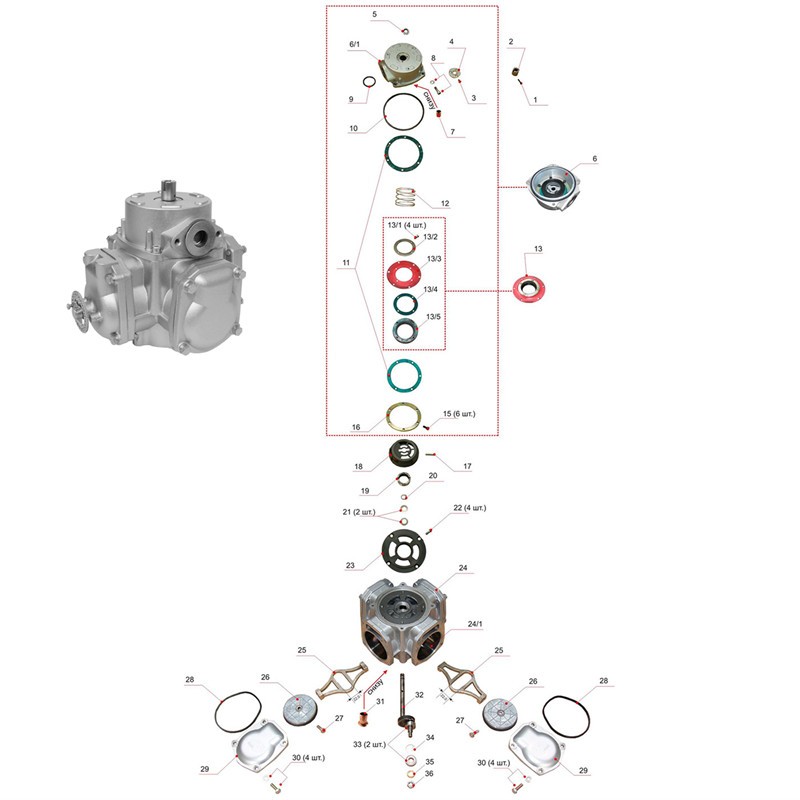

The IO50-06/1 cover is installed on the RSJ-50 volume meter of the Topaz fuel dispenser. It is connected to the IO50-24 meter body using four mounting holes. On the side, the cover has an inlet for fuel to enter the meter.
The design of the cover provides for the installation of a bushing, sealing rings, a spring and a membrane. The upper cover of the RSJ-50 in the IO50-06 assembly is also available.
