Description

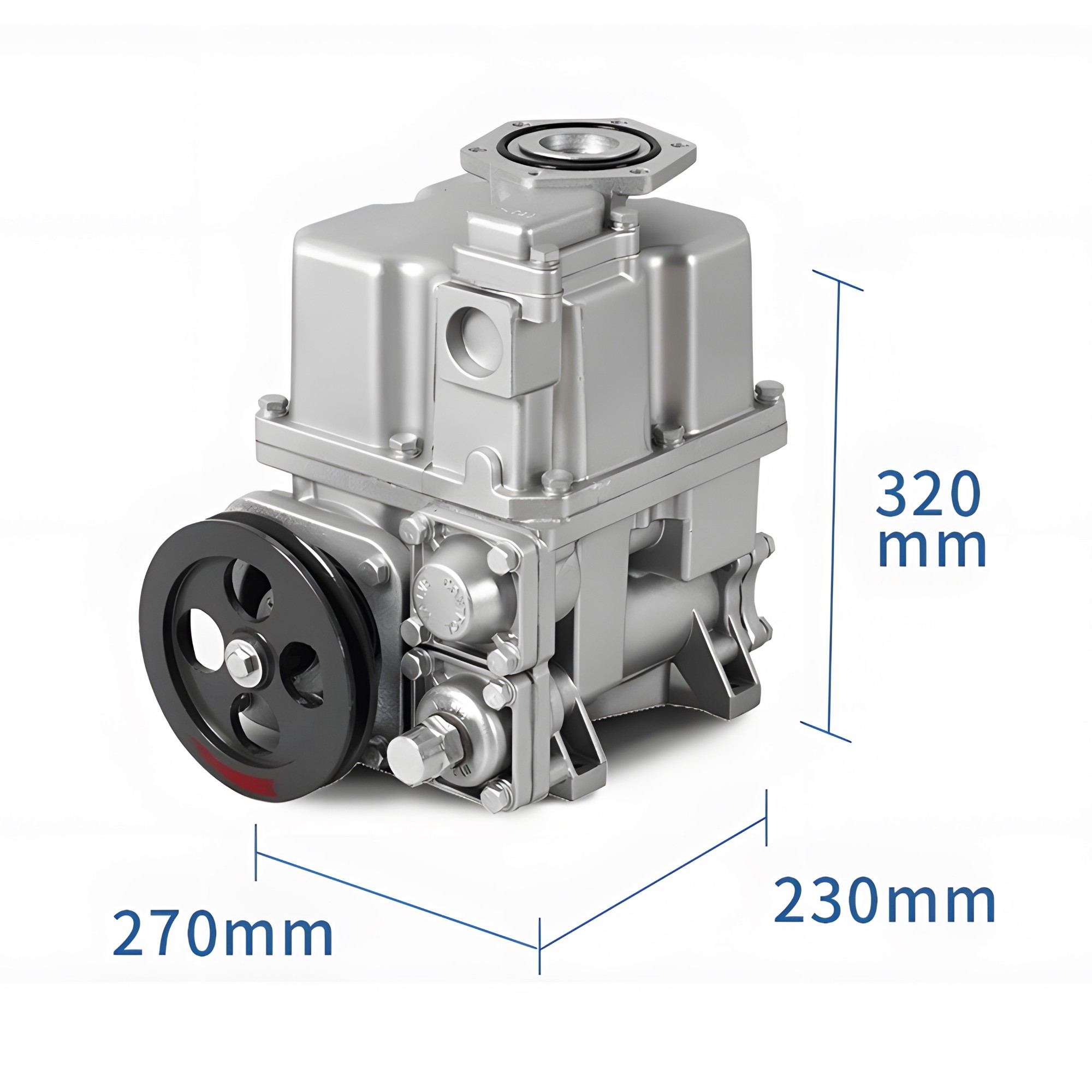

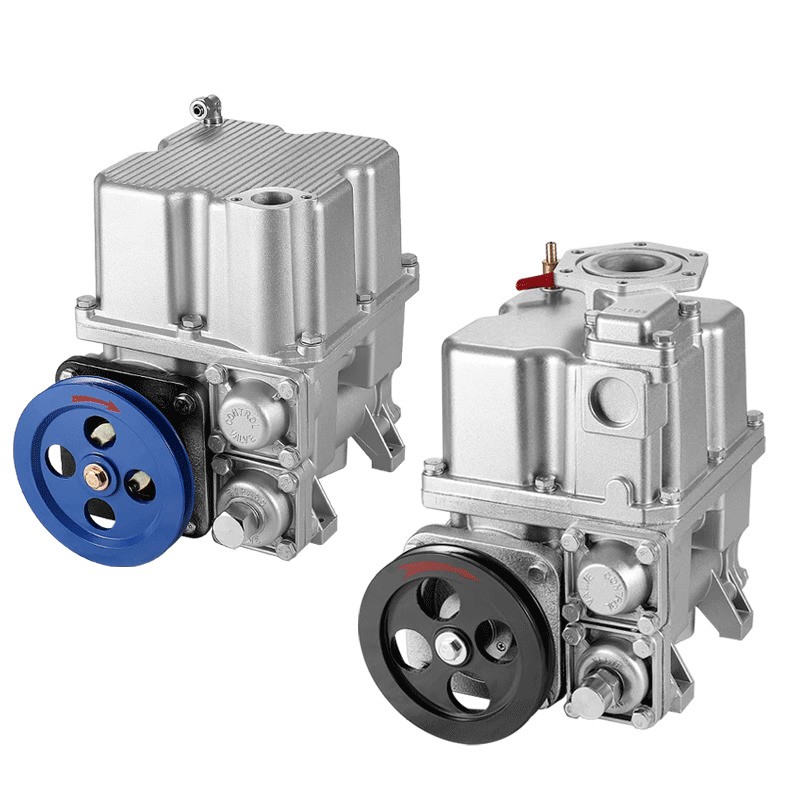

Bennett fuel dispensing pump vane pumps
Definition: ZYB-50 vane pumps is a fluid conveying equipment that integrates gear pump and auxiliary functions (such as oil-gas separation, overflow valve), specially designed for high viscosity or impurity media such as fuel and lubricating oil. The performance of gear pump depends on tooth design, sealing technology, wear-resistant materials and pressure regulation mechanism.
Aluminum alloy pump body, built-in oil-gas separator, vacuum suction up to 5m, flow rate 50-80L/min, working pressure ≤0.3MPa.
Applicable media: gasoline, diesel, kerosene and their mixed oils ([Source 2]).
Adjustable design (such as ZYB-B type): allows manual adjustment of gear end face clearance to restore pressure
Double arc sine curve tooth shape (reduces wear, noise ≤65dB)
Hydraulic balance technology (ZYB-B type has a 30% longer pressure holding time,
Material: 40Cr steel gear, tin bronze sleeve (wear-resistant but less corrosion-resistant than stainless steel).
ZYB-50 vane pumps serves the fields of petroleum, chemical, grain and oil, construction, etc.
Technical Specifications |
|
Working Pressure | ≤0.3 Mpa |
Flow rate | 45-65L/m |
Dry Vacuum | ≥0.054Mpa |
Wet Vacuum | ≥0.06MPa |
Motor Power | 0.75KW |
Motor Speed | 660rpm |
Vertical Suction Distance | 5m |
Horizontal suction distance | 80m |
Working Temperature | -50° C to 55° C |
Noise | ≤72dB |
Net Weight | About 17KG |
package size | 33*26*40 cm |
