Description

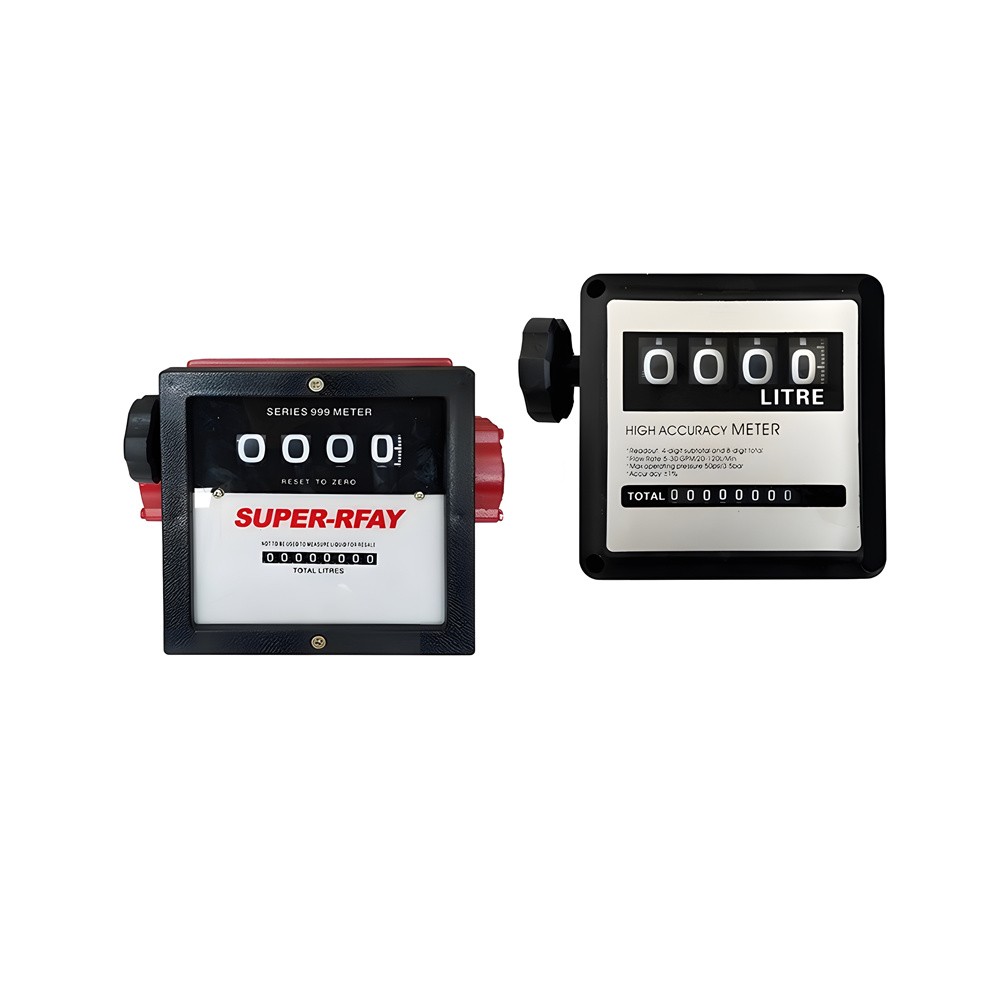

4-Digital Aluminum Mechanical Fuel Flow meter
The mechanical oil Flow meter is designed for measuring the flow rate of a wide range of fluids including diesel fuel, gasoline, kerosene, mineral spirits, etc. The material of the base is aluminum alloy which makes this meter strong and durable. It is easy to read how much liquid has been dispensed through the large-screen display.
Model: FM-120-2
Unit: Liter / US gallon / UK gallon.
Flow range: 5-30 GPM/20-120L/Min
Accuracy: ± 1%
Nominal diameter: 25mm (1" internal thread)
Medium: Diesel
Product Type: Mechanical
Count: four counts (can be reset to zero), eight cumulative (not return to zero)
Shell material: Aluminum, Plastic
Mounting direction: vertical or horizontal
Working pressure: > 0.04 Mpa
Max operating pressure: 50psi / 3.5bar
Size: 18 * 15 * 13.5cm / 7.09 x 5.91 x 5.31in
