Why is Positive Displacement Flow meter (PD) Technology Ideal for Measuring Marine Fuel?

In the complex world of marine operations, one cost consistently stands above the rest: fuel. As the largest variable expense, fuel costs directly impact the profitability of every voyage. Therefore, the precise and reliable measurement of its consumption is not just a technical requirement but a commercial necessity. Choosing the right boat fuel flow gauge directly affects your bottom line and operational efficiency. Among the many technologies available, Positive Displacement (PD) technology is widely recognized as the gold standard for marine fuel measurement. This article will delve into the inherent advantages of PD technology and explain why products like LC Positive Displacement Flow meters, including the acclaimed LUQID CONTROL FLOW METER (also known as the LC flow meter), are the most trusted choice for the demanding maritime environment.

Facing the Challenge: The Unique Demands of Marine Fuel Measurement

What might seem like a simple task of measuring flow on land becomes a series of unique and formidable challenges at sea. The marine environment is a tough proving ground for any precision instrument, and fuel flow meters are no exception.

Varying Viscosity: From Diesel to Heavy Fuel

A vessel's power systems may use various types of fuel. From the relatively thin Marine Diesel Oil (MDO) to the thick, syrup-like Heavy Fuel Oil (HFO), the fuel's viscosity—its resistance to flow—can vary dramatically. Many flow meter technologies, such as turbine meters, suffer from significant accuracy fluctuations as fluid viscosity changes. When the fuel thickens, the rotation of the turbine blades is affected, leading to inaccurate readings. A flow meter that cannot handle viscosity changes is practically useless in this application. Marine operations demand a measurement method that remains consistent and accurate, regardless of the fuel type.

Harsh Environments: Vibration, Saltwater, and Space Constraints

The marine environment is incredibly harsh on equipment. First, there is constant vibration. The ship's engine is a massive source of vibration, compounded by the vessel's movement in rough seas, which puts continuous stress on the internal components of any device. Second, there is corrosion. Salt spray in the air and occasional splashes of seawater are highly corrosive to metal parts. Finally, space within a ship's engine room is often limited and crowded, requiring equipment to be compact and easy to install. A qualified marine flow meter must, therefore, have a robust mechanical structure and be made from corrosion-resistant materials to ensure long-term reliability.

Precision is King: Every Drop Counts Towards the Bottom Line

For an ocean-going cargo ship or a large fishing vessel, daily fuel consumption can reach tens or even hundreds of tons. At this scale, even a minor measurement error can accumulate into significant financial losses when dealing with vast quantities of fuel. For instance, a mere 1% measurement error for a ship consuming 1,000 tons of fuel per month translates to a 10-ton discrepancy. This could be worth thousands, or even tens of thousands, of dollars. High accuracy is therefore not just a technical specification; it is the foundation for effective cost control, bunkering custody transfer, and compliance with environmental regulations.

The Principle of PD Technology: A Mechanical Art Born for Marine Fuel

In the face of these challenges, PD technology offers an elegant and powerful solution. Its working principle is not based on complex electronic calculations or fluid dynamic inferences, but on pure, direct mechanical measurement.

Direct Volumetric Measurement: Beyond Inference and Estimation

Imagine you want to accurately measure a barrel of water. One way is to estimate, perhaps by using the speed of the water turning a paddle wheel to guess the flow rate. The other way is to use a cup of a fixed volume, scoop the water out cup by cup, and count how many cups it took to empty the barrel. A PD flow meter, like the LUQID CONTROL FLOW METER, uses the second method.

Inside, it houses one or more pairs of precisely machined gears or rotors. As fuel flows through the meter, it forces these gears to rotate. The gears and the meter's housing form a series of small, isolated chambers of a fixed, known volume. Fuel is "trapped" in these chambers and then "discharged" downstream as the gears turn. Each rotation of the gears corresponds to an exact volume of fuel passing through. It acts more like a series of precise, rotating measuring cups than an instrument that guesses flow based on velocity, achieving true volumetric measurement.

This direct method has a massive advantage: its accuracy is largely unaffected by changes in fuel density, pressure, or temperature (simple volume compensation is all that's needed for temperature-related expansion or contraction). This is something that other technologies based on inferring flow from velocity cannot match.

A Natural Partner for High-Viscosity Fluids

Interestingly, for a PD flow meter, high-viscosity fluids are not a problem; to a certain extent, they are an advantage. When handling viscous fuels like HFO, the fluid itself creates an effective "hydraulic seal" between the precision gears of the LC flow meter. This seal reduces the amount of fuel that "slips" or leaks back upstream through the gear clearances. This means that nearly every drop of fuel that enters a chamber is accurately measured and discharged. Therefore, within a certain range, the higher the viscosity, the less internal slippage the meter experiences, and its accuracy is maintained or even slightly improved.

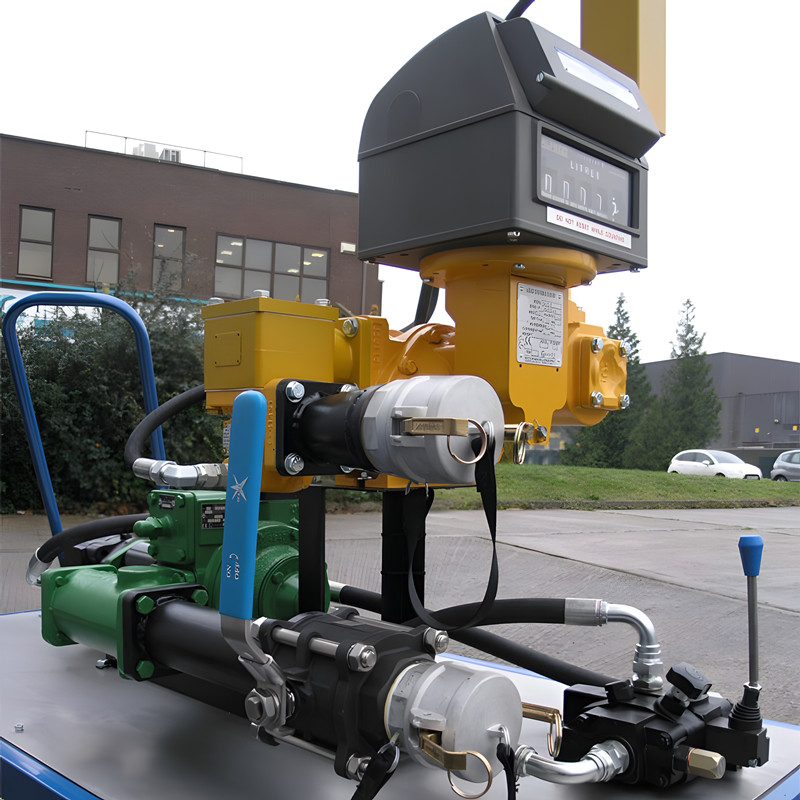

Why LC Positive Displacement Flow Meters are the Ideal Choice at Sea

Once we understand the principle of PD technology, it becomes clear why brands like LC are the top choice for maritime applications. They translate the theoretical advantages of PD technology into real-world performance.

Unmatched Accuracy and Repeatability

LC Positive Displacement Flow Meters typically offer measurement accuracy of up to ±0.5% or better. This level of precision is the industry benchmark for bunkering custody transfer and precise cost accounting. In addition, they boast extremely high repeatability. Repeatability means that when measuring the same volume of fuel multiple times under the same conditions, the results will be nearly identical. This high degree of consistency is crucial for monitoring fuel consumption trends and identifying anomalies.

Superior Reliability and Durability

LC flow meters are built for harsh environments. They are constructed from marine-grade materials like brass, stainless steel, or specially treated aluminum to resist corrosion from seawater. More importantly, their core is a purely mechanical system with few, if any, delicate electronic components. This makes them immune to the electromagnetic interference (EMI) common on ships. This simple yet robust design allows them to withstand continuous vibration from engines and heavy seas, providing reliable service for decades.

Exceptional Performance at Low Flow Rates

A ship's engine doesn't always run at full speed. During maneuvering in port, idling, or operating at low loads, the fuel flow rate can become very low. Many other types of flow meters lose their accuracy dramatically at low flow rates or may even stop registering flow altogether. Because of its operating principle, the LC flow meter continues to effectively capture and measure every drop of fuel, even at a trickle, as long as there is enough flow to turn the gears. This ensures you get a complete and accurate picture of fuel consumption, no matter the engine's operating state.

Beyond Metering: The Added Value of an LC Flow Meter

The benefits of a high-precision boat fuel flow gauge extend far beyond simply getting an accurate number. This data is a critical tool for optimizing operations, enhancing safety, and maintaining equipment.

Optimizing Voyage Planning and Enhancing Safety

Accurate, real-time fuel consumption data, when combined with GPS information, allows the captain or operations manager to precisely calculate the vessel's remaining range. This is a critical safety function that helps prevent the catastrophic risk of running out of fuel in the middle of the ocean. It also enables the optimization of routes and speeds to complete voyages with the lowest possible fuel consumption, maximizing profitability.

An Early Warning System for Engine Health

The rate of fuel consumption is an excellent indicator of engine health. Under normal conditions, the fuel burn at a given speed should be stable and predictable. A sudden, unexplained increase in fuel consumption is often the first sign of an engine problem. For example, clogged or damaged fuel injectors can lead to poor fuel atomization and inefficient combustion, which directly manifests as an abnormally high fuel consumption rate. By continuously monitoring the data from the boat fuel flow gauge, maintenance engineers can detect and address such issues before they escalate into costly, major failures.

Frequently Asked Questions (FAQ)

Q1: How do PD meters (like the LC Meter) handle impurities in the fuel?

A: This is a critical point. Because PD meters rely on close-tolerance moving parts, solid contaminants in the fuel like rust or grit can cause wear and affect accuracy and longevity. For this reason, it is mandatory to install a properly specified strainer or filter upstream of any PD flow meter (before the fuel enters the meter). Regularly inspecting and cleaning this filter is the key to protecting the meter and ensuring its long-term accuracy.

Q2: What are the main disadvantages of PD technology compared to other types of boat fuel flow gauges?

A: PD technology has two primary disadvantages. First, it creates a pressure drop in the fuel line because the fluid must expend energy to move the internal rotors. This must be accounted for in the system design. Second, as mentioned above, they are more sensitive to solid particulates and require good filtration. Additionally, the initial purchase cost of a high-quality PD meter can be higher than that of some simpler technologies. However, given its superior accuracy, long-term reliability, and the operational savings it provides, it is almost always considered a worthwhile long-term investment.

Q3: How do I choose the right LC Positive Displacement Flow Meter model for my vessel?

A: Selecting the correct model comes down to two main factors:

1. Pipe Size: The meter's connection size must match the diameter of your vessel's fuel line to ensure proper installation and fluid dynamics.

2. Flow Rate Range: This is the most important parameter. You need to know your engine's fuel consumption rate at maximum power (usually measured in Gallons Per Hour - GPH, or Liters Per Hour - LPH). The meter model you choose should have a maximum flow rating that is comfortably above your engine's maximum consumption rate and a minimum flow rating that can capture consumption at idle. This ensures the meter operates within its optimal accuracy range and has a long service life.
