Description
Комплект фильтров (Татсуно С-Бенч)

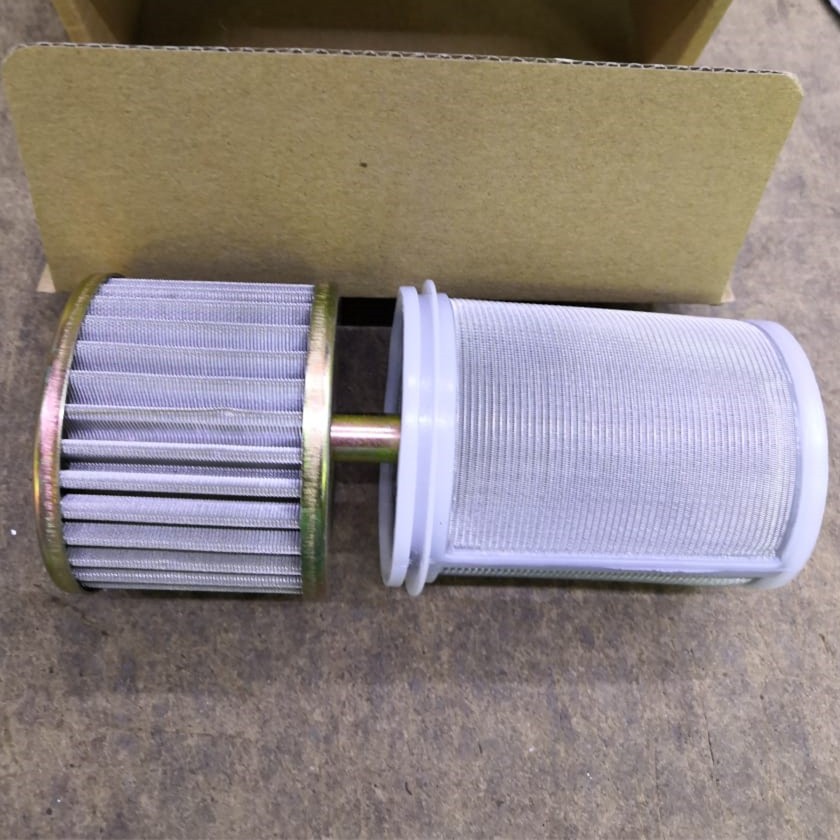

TATSUNO filter set
The filter screen at the oil outlet of Longye gear pump. Compatible with various brands of refueling machines. Total length 137, outer diameter of grooved tooth type net 63, height 50, inner diameter of large flow port 38, outer diameter of small tube 10, inner diameter 6mm.
Equipped with the oil inlet filter screen of Longye gear pump (Note: it is easy to use with a sealing leather ring, filter impurities, and seal reliably, which is the genuine product of the manufacturer) for use in various brands of refueling machines or vehicle-mounted refueling machines. Brief appearance dimensions: height 80 (large circle), diameter 62, O-ring groove width 2.5, bottom diameter 57, large port inner diameter 53, middle small hole 7, side small hole 6mm.
Filter Specifications:
Maximum working pressure
Resin-impregnated cellulose media
10micron 30 micron 60 micron available
Application:
Particulate filtration
The filter can use with diesel, gasoline, and ethanol or methanol blends up to 10%
The filter use with low-volume commercial power pumps
The filter use on above ground storage tanks above ground, gravity flow dispensing, transfer tanks
Benefits:
Assure delivery of fuel quality for high-capacity fill rate
Hardware cloth offers higher efficiencies and longer life
Added protection to the gasoline dispenser
Decreased filter change out
The filter is used between the Fuel pump and the Flow meter. It belongs to the secondary filtration, filters the fuel input from the oil pump into the Flow meter, filters out the impurities in the fuel, ensures the purity of the fuel, and protects the flow meter won't be damaged because of impurities in the fuel. extending the life of the flowmeter
