Description

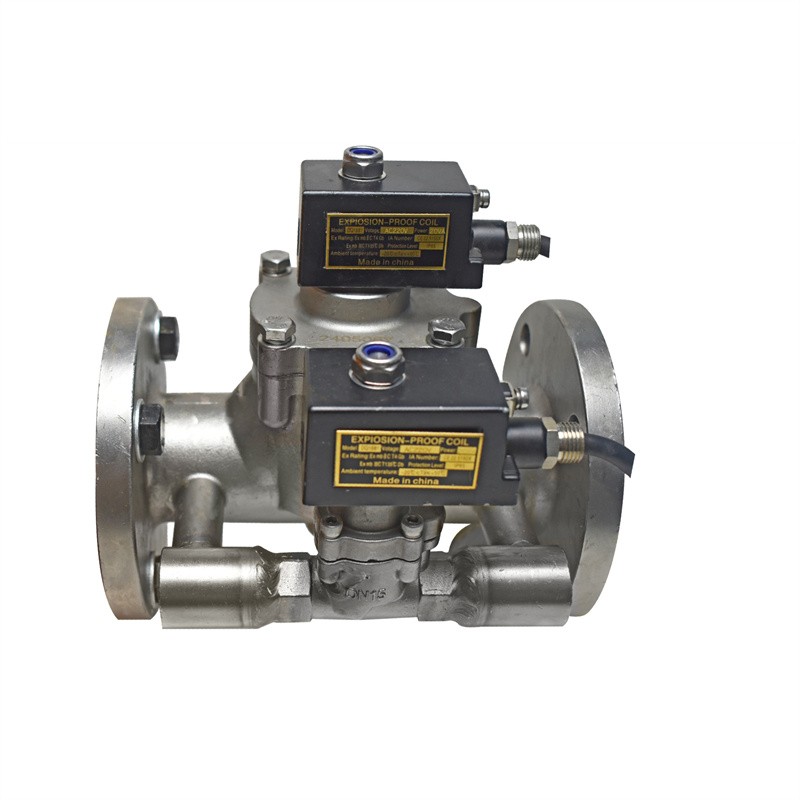

Stainless Steel Dual-flow Piston Solenold Valve for Positive Displacement Flow meter
Precision Flow Control for Demanding Metering Applications
The SV Series Stainless Steel Dual-flow Piston Solenoid Valve is engineered to provide reliable and precise flow control in conjunction with positive displacement Flow meters. Constructed entirely from corrosion-resistant stainless steel, these valves are ideal for a wide range of industrial fluids, including fuels, chemicals, solvents, and other demanding media. The robust design ensures long-term performance even in harsh operating environments.
Key Features and Benefits
-
Durable Stainless Steel Construction: Offers excellent resistance to corrosion and wear, ensuring longevity and reliability with aggressive or high-purity media.
-
Dual-flow Piston Design: Provides smooth and rapid actuation for precise flow control, minimizing pressure drop and enhancing system efficiency.
-
High Flow Capacity: The SV-50 (DN 50) handles up to 380 L/min, while the larger SV-80 (DN 80) supports flows up to 750 L/min, catering to various system requirements.
-
Compact and Robust Design: Engineered for easy integration into existing piping systems with a compact footprint, saving valuable space.
-
Standard Voltage Operation: Compatible with 220VAC 50HZ power supplies, suitable for global industrial use.
Technical Specifications
| Parameter | Model SV-50 | Model SV-80 |
| Size | DN 50 | DN 80 |
| Max. Flow Rate | 380 L/min | 750 L/min |
| Min. Flow Rate | 50 L/min | 50 L/min |
| Max. Working Pressure | 10 Bar | 10 Bar |
| Body Material | Stainless Steel | Stainless Steel |
| Operating Voltage | 220VAC 50HZ | 220VAC 50HZ |
| Dimensions (L*W*H) | 36 x 33 x 30 cm | 49 x 42 x 42 cm |
| Net Weight | 12 kg | 16 kg |
| Gross Weight | 13 kg | 23 kg |
| Package | 1 pc/Carton | 1 pc/Wooden Case |
Typical Applications
-
Batching and Blending Systems: Precise control of fluid quantities in chemical processing and manufacturing.
-
Fuel Loading and Dispensing: Automated control for truck loading racks, marine bunkering, and storage terminal operations.
-
Solvent and Additive Injection: Accurate metering of additives into main product streams.
-
Industrial Process Control: General-purpose flow control in various industries requiring reliable solenoid valves.

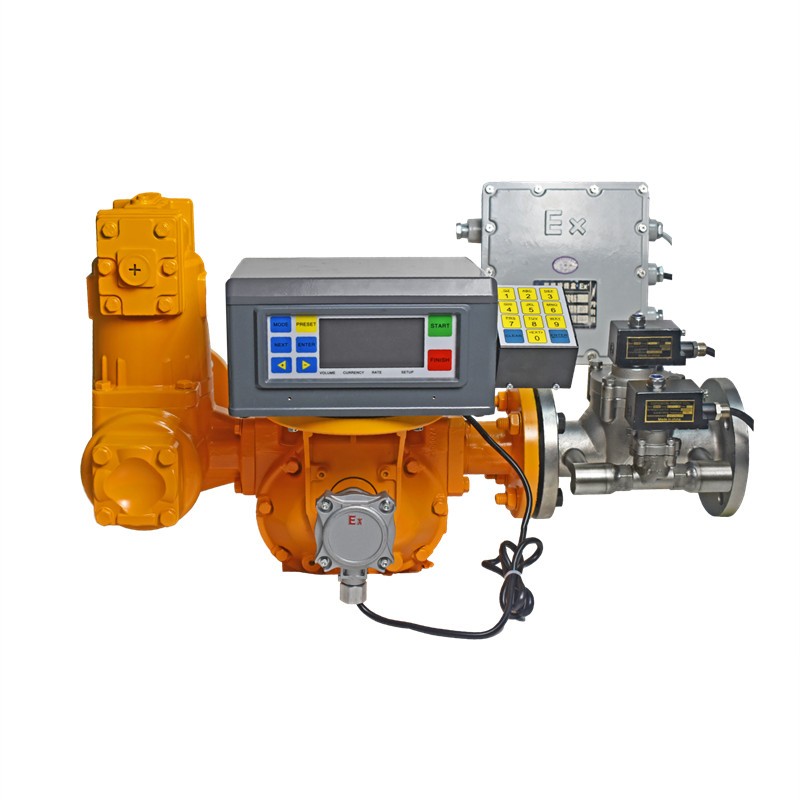

The SV Series Solenoid Valve is an essential component for automating and securing fluid handling processes, ensuring accurate, reliable, and leak-free operation when paired with positive displacement flow meters.
