Description

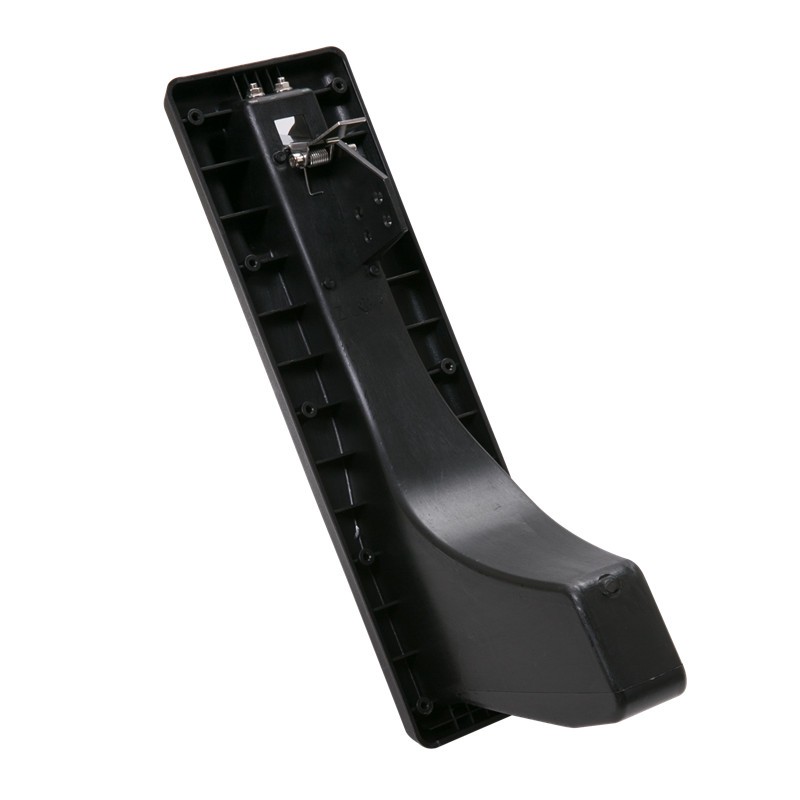

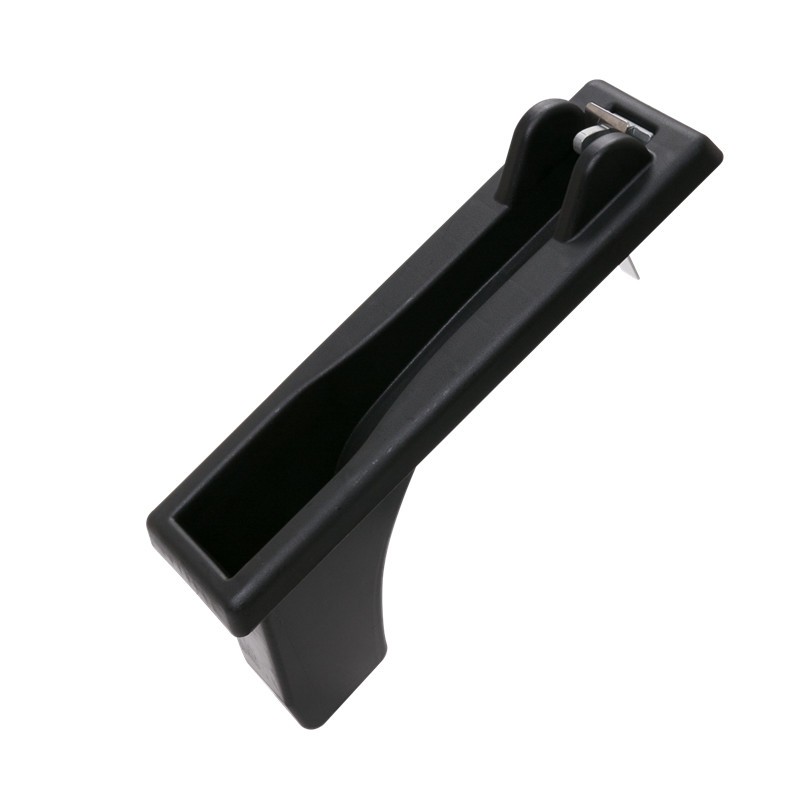

Plastic Nozzle Holder (Switch-Integrated Compact Model)
Plastic Fuel Dispensers nozzle Holder
Material Composition:
Reinforced nylon (primary body)
Stainless steel components
Optional aluminum alloy variants
Core Applications:
Fuel dispensing systems
Vapor recovery nozzle systems
Industrial fluid handling equipment
Key Advantages:
Material Superiority
Oxidation-resistant polymer construction
30% lighter than aluminum counterparts
Cost-effective solution with 20% lower maintenance expenses
Functional Versatility
Universal compatibility with:
• Vapor recovery nozzles
• Standard nozzles (11A/120 series)
• Switch-activated nozzle systems
Modular design allows field retrofitting
Durability Features
Impact-resistant reinforced nylon
Corrosion-proof stainless steel joints
Temperature tolerance: -30°C to +80°C
Technical Specifications:

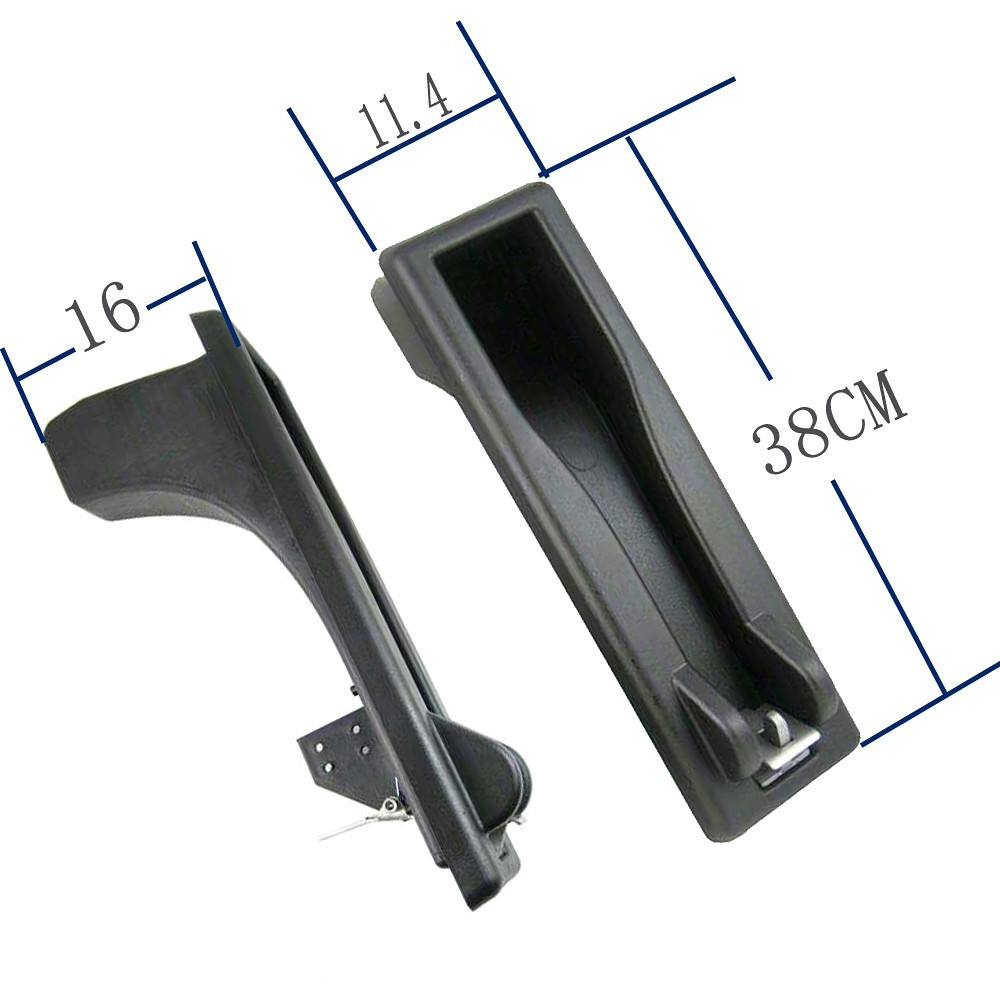

Dimensions: 114mm (W) × 138mm (D) × 376mm (H)
Switch mechanism: IP65 rated waterproof
Weight: 1.3kg (unit) / 13kg (carton)
Packaging: 5 units/CTN
Carton dimensions: 420×340×400mm
Gross weight: 14kg
Comparative Analysis:
Feature Plastic Model Aluminum Model
Oxidation resistance Permanent Requires annual coating
Weight 1.3kg 2.1kg
Maintenance cost $15/year $35/year
Temperature stability Maintains integrity Warping at >60°C
