Description

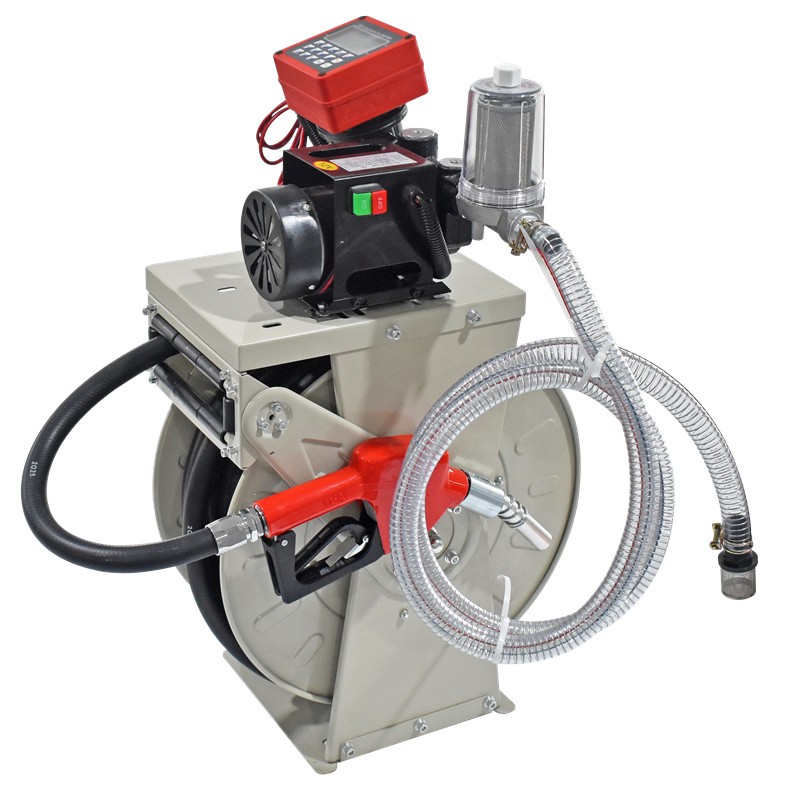

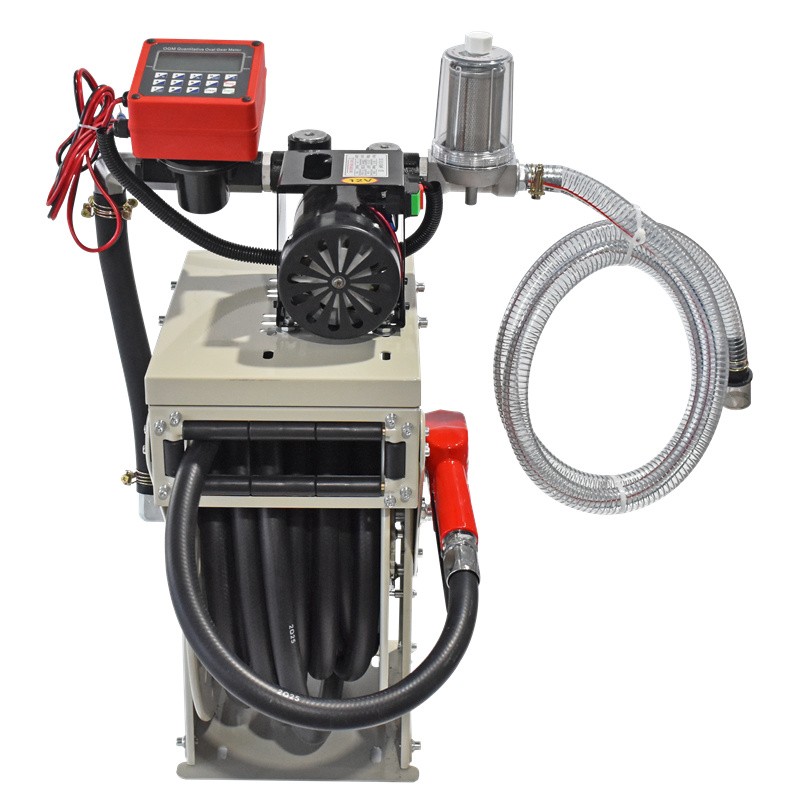

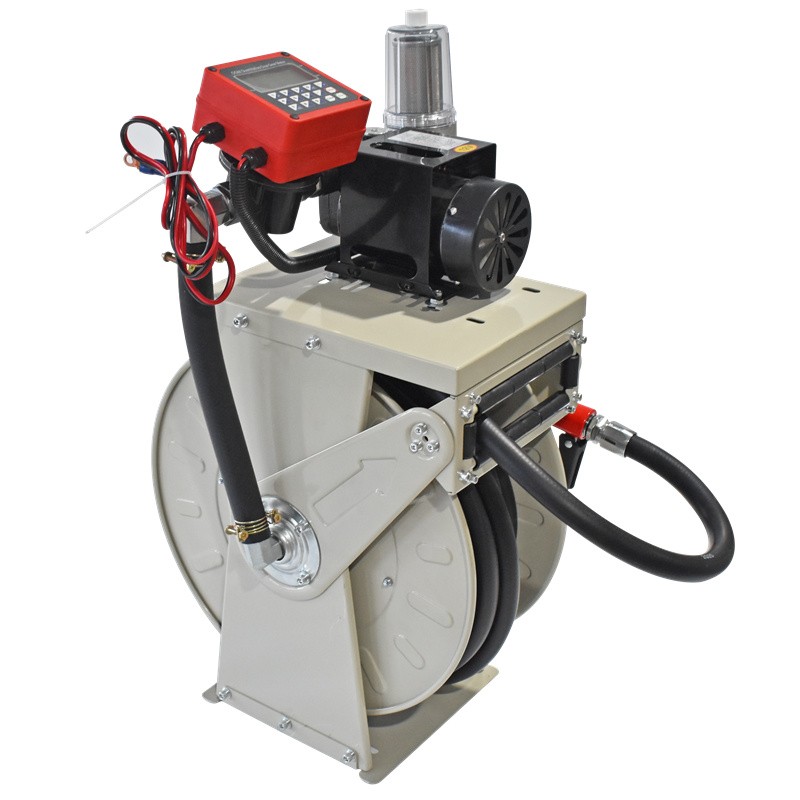

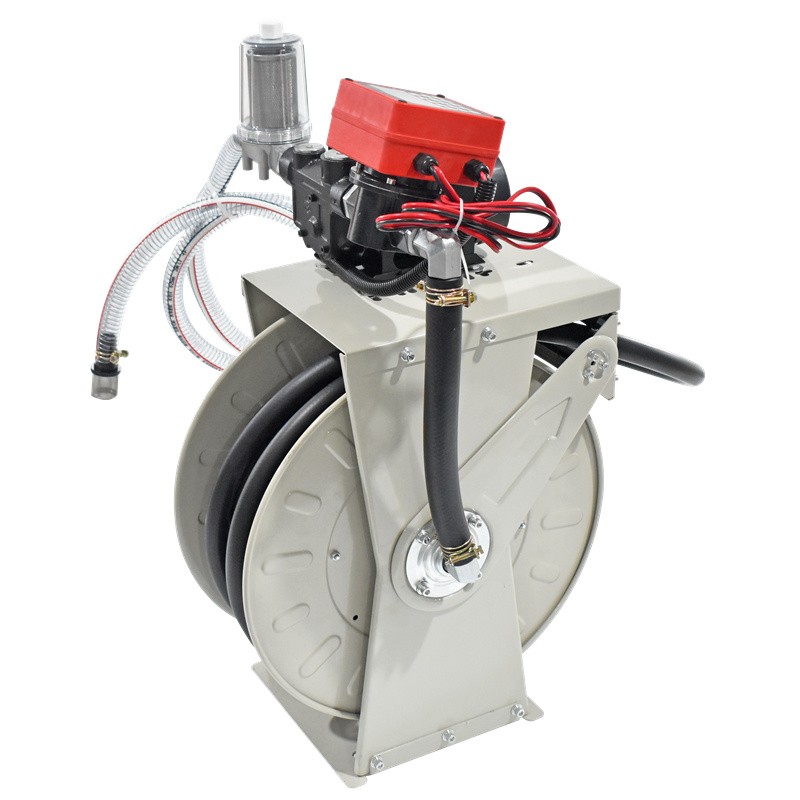

Mini portable gas pump for sale, portable gas dispenser
Functional Features of Mini Filling Machine (Electric Quantitative Pricing Automatic Start and Stop Reel Integrated Machine)
1. Core Functional Design
Electric Drive + Quantitative Control
Equipped with a high-precision electronic Flow meter (±1% error), supporting a wide range of presets from 0.1 to 999.9L.
Optimized for quantitative filling of lubricants (e.g., engine oil, gear oil, hydraulic oil).
Integrated PLC or microcontroller system for real-time display of cumulative volume, single-volume metrics, and transaction records.
Data storage and query capabilities for traceability.
Intelligent Pricing System
Built-in unit price module automatically calculates total cost and generates transaction logs.
Ideal for commercial use in gas stations, repair shops, and retail environments.
Automatic Start/Stop Technology
Motor activates when the nozzle is opened and stops upon closure or when the container is full (self-sealing).
Anti-drip nozzle minimizes waste.
Remote control operation enhances safety and convenience.
2. Reel Structure Design
Industrial-Grade Reel System
Standard 5–25-meter high-pressure rubber tube (1-inch diameter) with spring recovery tension exceeding 20kg.
Ensures rapid pipeline retraction and durability.
Metal bracket with anti-scratch coating for corrosion resistance and frequent use.
Integrated Compact Layout
Motor, metering module, and reel are integrated into a single unit.
Supports 170–208L standard oil drums with robust construction.
3. User-Friendly Operation
One-Button Process
Power on → preset parameters → trigger nozzle → automatic metering, filling, and pump shutdown.
Touchscreen interface with multi-unit switching (liters, gallons, currency).
Versatile Power Options
Compatible with 12V/24V DC batteries (for vehicles/farm use) or 220V AC power (workshops).
4. Industrial-Grade Performance
High-Flow Output
Gear pump achieves 60–70L/min suction speed, filling a standard drum in 1 minute.
Operating pressure: 5–20 bar.
Safety Mechanisms
Dual filters remove impurities to prolong pump lifespan.
Overload protection circuit with automatic power-off.
5. Typical Applications
Engineering & Maintenance
Lubrication for machinery in small spaces (e.g., field equipment).
Oil Depots
Quantitative filling into small barrels with data traceability.
Production Lines
PLC-linked automation for batch oiling of bearings/motors.
Emergency Scenarios
Remote control + battery power for off-grid refueling.
