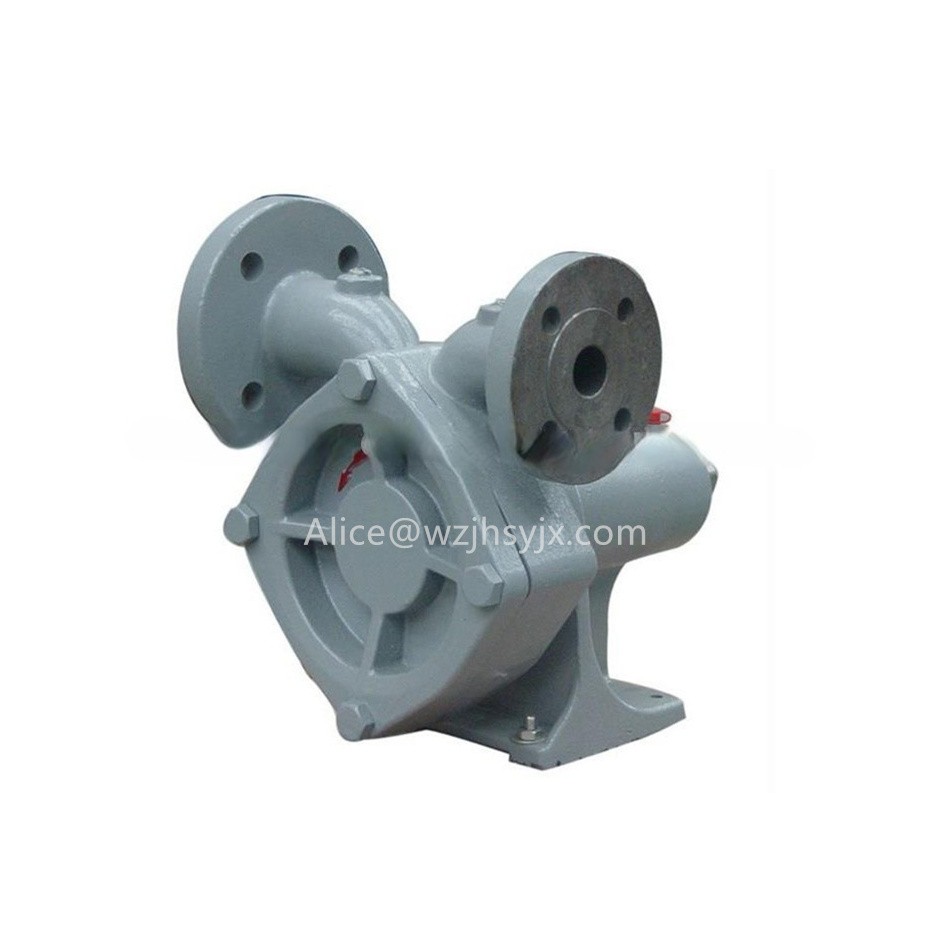

LWB‐150 LPG Turbine Pump is for high differential pressure application like above ground & underground tank transfer etc. or direct-drive mounting with gear reducer for option.
Regenerative turbine pump is continuous duty and ideal for low capacity applications with moderate to high differential pressures. The liquid is circulated between the teeth of an impeller rotating between the pump casing and head. Since the impeller is free-floating, there is no metal-to-metal contact so the pump is virtually maintenance free. LPG Turbine Pump is single-stage pump.Drive options are direct drive (base plate, flexible coupling, and coupling guard) and V-belt drive (base plate, adjustable driver slide base, V-belt drive, and belt guard).LWB-150 pump is an ideal pump for two dual hose LPG dispensers.
Advantage
1) A cost effective alternative to submersible designs.
2) Meeting multiple demands for LPG application. Whether a low or high flow rate with a high differential pressure, by underground and above ground tank application.
3) By simply removing the pump cover, the internals can be replaced without disturbing the piping
4) Continuous duty design.A frame mount includes two sets of heavy duty ball bearings that provide a long service life
5) Serviceability is simple and cost effective.
Features
1) DIN flanges provide optimal leak control and enhances structural integrity. Ductile iron case and cover provide maximum thermal shock protection.
2) Balanced mechanical seal with silicon carbide seal seat is easily replaced by simply removing the cover.
3) Balanced mechanical seal with silicon carbide seal seat is easily replaced by simply removing the cover.
4) 1/4" NPT gauge ports can be used for evaluating system performance.
