Description

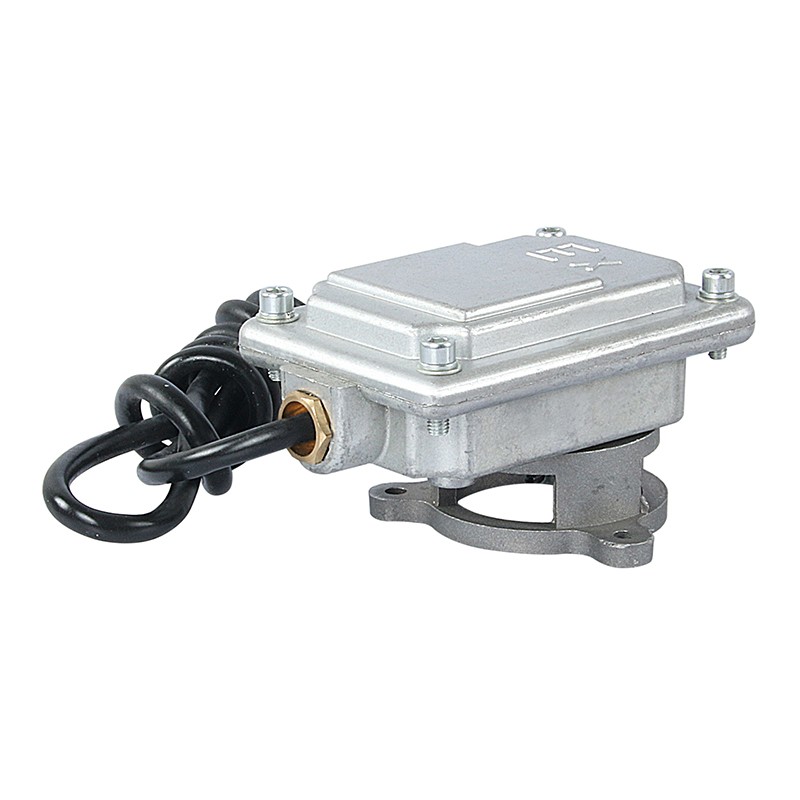

fuel dispenser pulser Intelligent Sensor/pulser
100 pulse or 200 pulse output is available for customers to choose, and the output waveform can also be customized according to customer requirements.
Description: Adopting high accuracy 100 groove,1:1 photoelectric plate, per rotate output two ways per 50 pulse signal, also can be made two ways per 100 pulse signal,
Adopting special CPU to deal with the shake, change face process of the photoelectric signal, supply the sensor fault alarm.
sensor without or with holder price different, mainly work for Tatsuno type flowmeter,if you need sensor with holder,the price will be different.
Working voltage: DC 5v Working current: 30 mA
Max. Rotation rate: 300r/min Adjustable minimum volume: 60/100
Output channel: 2 Antihazard classification: Ex d ll B T4
