Reliable Gas Station hose Solutions

In the field of fuel transfer — whether at busy gas stations, fuel trucks operating on highways, or internal fuel supply systems of large industrial and mining enterprises — safety, efficiency, and reliability are the golden rules that must never be compromised. Every fuel transfer comes with enormous responsibility: how to minimize the risk of hazardous leaks? How to improve operational efficiency while reducing maintenance costs? The answer often lies in the details of these critical components — the 1-inch fuel hose breakaway coupling and the 1-inch fuel hose quick connect.

Chapter 1: The Safety Guardian — 1-Inch Fuel Hose Breakaway Coupling

Imagine this scenario: a tanker truck or a fuel truck departs prematurely without disconnecting the fuel hose. The enormous pulling force could cause the hose to rupture, spilling thousands of liters of fuel in an instant. A single spark could ignite a catastrophic fire or explosion.

How does it work?

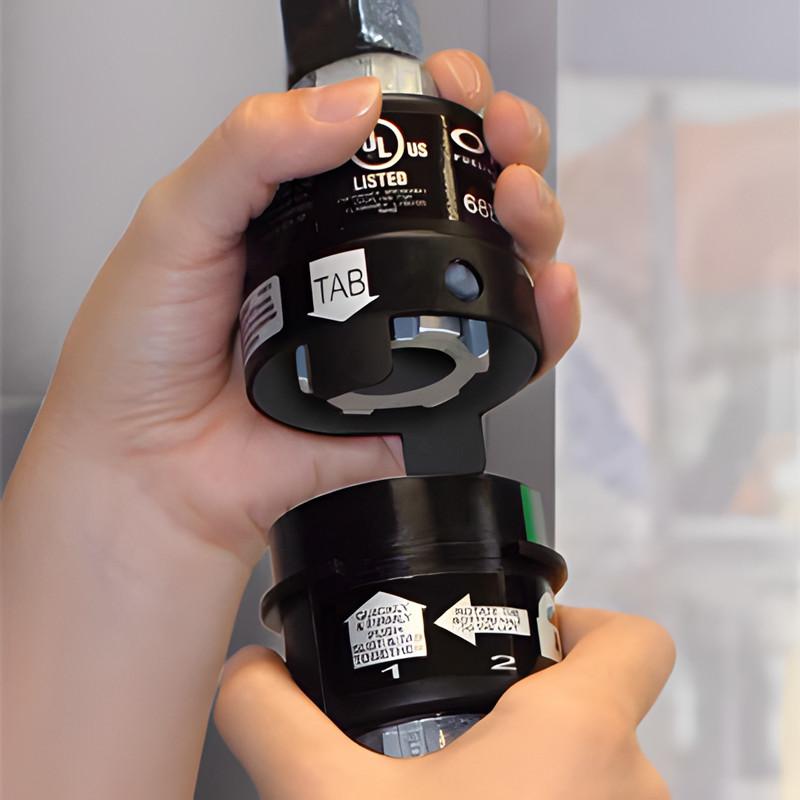

The breakaway coupling is a passive safety device specifically designed to prevent such extreme accidents. It is usually installed at a specific location on the hose side near the fuel dispenser or between the nozzle and the hose. Internally, it contains a precise mechanical locking mechanism. When the tensile force applied to the hose exceeds a preset safety threshold (typically set by shear pins or spring mechanisms), the breakaway coupling rapidly and controllably separates into two parts. According to UL standards for gas stations, the preset value typically ranges between 100–350 lbf.

The most critical feature is that at the moment of separation, built-in check valves on both ends activate instantly — within milliseconds — sealing off the flow and effectively preventing fuel leakage from either side. It's like installing an intelligent, automatic shut-off valve in a pressurized water pipeline, turning a potential major disaster into a simple repair involving only the replacement of the breakaway coupling.

Who urgently needs it?
Gas Station Construction and Operations Companies: This device is mandatory under national regulations and safety standards, serving as the lifeline for safe station operation.
Tanker Truck Manufacturers and Parts Suppliers: Providing end customers (logistics firms, fleet operators) with the highest level of safety protection is a key competitive advantage.
Industrial and Mining Enterprises, Agricultural Sector: At onsite fueling points in mines or farms, where operations may be less regulated than gas stations, breakaway couplings offer crucial redundant safety protection.
Insurance and Risk Management Institutions: Installing reliable breakaway couplings can significantly lower risk levels, potentially influencing insurance premiums.

Chapter 2: The Efficiency Booster — 1-Inch Fuel Hose Quick Connect
If the breakaway coupling is the “safety guardian,” then the quick connect fitting is undoubtedly the “efficiency engine.” Frequent connecting and disconnecting of fuel hoses is a daily routine. Traditional threaded connections are time-consuming, labor-intensive, and prone to leaks due to wear or improper handling.

Key advantages:

Modern quick connect fittings feature ergonomic lever or latch designs that allow operators to quickly connect or disconnect with one hand and without any tools. Their core values include:

Speedy Operation: Connection time shrinks from several minutes to just seconds, greatly enhancing pump turnaround rates — especially impactful during peak hours.

Reliable Sealing: High-quality seals and precision machining ensure zero leaks under high pressure, reducing fuel evaporation losses and protecting the environment.

Reduced Labor Intensity: No heavy tightening needed, reducing operators’ physical strain and repetitive stress injuries.

High Durability: Constructed with stainless steel or brass materials and surface treated to resist corrosion and wear, ensuring a long service life.

Typical applications:

Fuel dispensers and loading arms: Connecting fuel dispensers to underground pipelines for easier maintenance and equipment replacement.

Fuel tanker loading/unloading: Rapidly connecting tankers to storage facility pipelines, expediting loading and unloading.

Internal fuel transfer systems: On construction sites, power plants, farms, and other places where equipment is frequently moved for refueling, quick connects provide essential flexibility.

Chapter 3: Power Couple — Building a Comprehensive Fuel Transfer Solution
Integrating breakaway couplings and quick connect fittings into the same system achieves a synergy greater than the sum of their parts, creating a perfect loop that is both safe and efficient.

Typical configuration example:

Fuel dispenser → [Quick Connect] → Hose → [Breakaway Coupling] → Fuel nozzle

Advantages:

Balance between safety and maintenance: The breakaway coupling offers ultimate safety protection. When hose replacement or maintenance is needed, simply disconnect the upstream quick connect to easily remove the entire hose assembly (including the breakaway coupling and nozzle) without special tools or long downtime.

Modular design: Significantly reduces inventory and replacement costs. There is no need to replace the entire hose; just keep spare quick connects, breakaway couplings, and other components on hand. Some UL-certified breakaway couplings are reusable, allowing reset and reuse within 15 seconds after activation.

Chapter 4: How to Choose Reliable Products?
With the abundance of products in the market, making the right choice is critical. Here are several key factors to consider:

Material and Compatibility: The fitting body must be compatible with the specific fuel type (diesel, gasoline, ethanol-blended fuels, etc.). Stainless steel (SS304/316) is highly recommended for its excellent corrosion resistance and mechanical strength. For cost-effective options, aluminum-zinc alloy with special surface treatments can provide durability.

Pressure Rating: Products must support the maximum operating system pressure with sufficient safety margin.

Safety Certifications: Ensure products are certified according to required international or national standards (e.g., UL, CE, ATEX explosion-proof certifications), which is the fundamental guarantee of safety.

Brand and Quality: Choose reputable, professional brands. Although the initial investment in high-quality fittings might be higher, their excellent sealing, durability, and reliability will save considerable maintenance costs, fuel losses, and prevent potential accidents.

Supplier Expertise: Opt for suppliers who provide technical consulting, after-sales support, and comprehensive solutions—not just product sales.
