Description
Sensor Flow meter: Advanced Digital Measurement for Modern Dispensing Systems
Innovative Sensing Technology
The W LF1 Sensor Flow meter represents a breakthrough in digital flow measurement technology, specifically engineered for precision fluid management in demanding applications. This advanced sensor flow meter utilizes a state-of-the-art turbine-Hall effect sensing system that sets new standards in non-contact measurement accuracy. The innovative design features a free-spinning turbine rotor equipped with high-strength neodymium magnets that generate precise magnetic field variations corresponding to flow velocity. A sophisticated Hall effect sensor array, completely isolated from the fluid stream, detects these magnetic changes and converts them into digital pulse signals with exceptional resolution.
This cutting-edge sensor technology eliminates all mechanical linkages and physical contact points, ensuring completely wear-free operation and maintaining calibration integrity throughout the meter's operational lifespan. The digital sensor architecture provides immediate response to flow changes while offering immunity to environmental factors that typically affect traditional measurement systems.
Technical Excellence
The W LF1 sensor flow meter delivers outstanding technical performance:
-
High-Resolution Measurement: Digital pulse output provides precise flow data with excellent signal stability
-
Wide Flow Range: 10-100 L/min measurement capability with maintained accuracy
-
Pressure Rating: 0.3 MPa operating pressure for diverse application requirements
-
Measurement Precision: ≤3% span error ensures reliable performance across entire range
-
Repeatability: ≤3% variation guarantees consistent measurement results
-
Media Compatibility: Optimal performance with diesel, gasoline, urea, and chemical solutions
-
Intelligent Connectivity
This smart sensor flow meter features fully integrated digital output capabilities, providing seamless connectivity with modern control systems. The pulse output interface enables direct connection to:
-
PLC systems for automated process control
-
IoT platforms for remote monitoring and data analytics
-
Electronic counters for precise totalization
-
Cloud-based management systems for centralized data collection
The sensor's digital architecture supports real-time data transmission without signal degradation, ensuring accurate flow information is always available for process optimization and decision-making.
Application Versatility
The W LF1 excels in multiple demanding applications:
-
Fuel Management Systems: Precision measurement for gasoline and diesel dispensing
-
Urea/AdBlue® Dispensing: Accurate DEF fluid monitoring for emission control systems
-
Chemical Processing: Reliable transfer measurement for industrial chemicals
-
Liquid Transfer Operations: General-purpose flow monitoring across various industries
Performance Advantages
This advanced sensor flow meter offers significant operational benefits:
-
Zero Maintenance Operation: Non-contact sensing eliminates wear and maintenance requirements
-
Long-Term Accuracy: Digital technology maintains calibration stability over time
-
Instant Response: Real-time measurement capabilities support rapid process adjustments
-
Environmental Resilience: Robust construction ensures reliability in challenging conditions
-
Plug-and-Play Integration: Standardized outputs simplify system integration
-
Quality Assurance
Every W LF1 sensor flow meter undergoes rigorous quality validation and performance testing. Advanced calibration procedures ensure each unit meets strict accuracy standards before deployment. The meter's construction incorporates corrosion-resistant materials and sealed electronics protection, guaranteeing reliable performance in various operational environments.
Technical Specifications
-

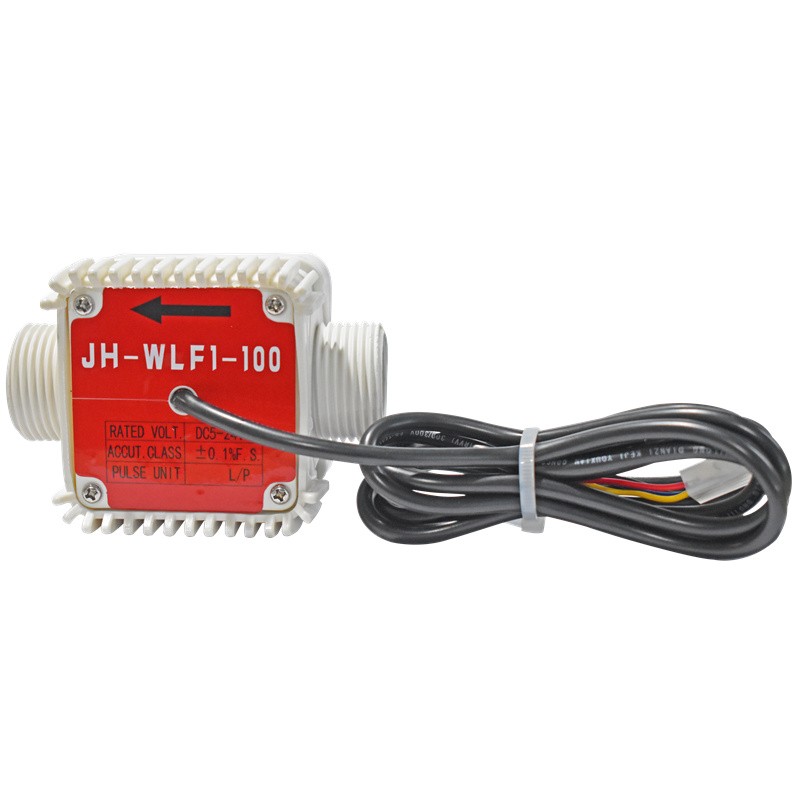

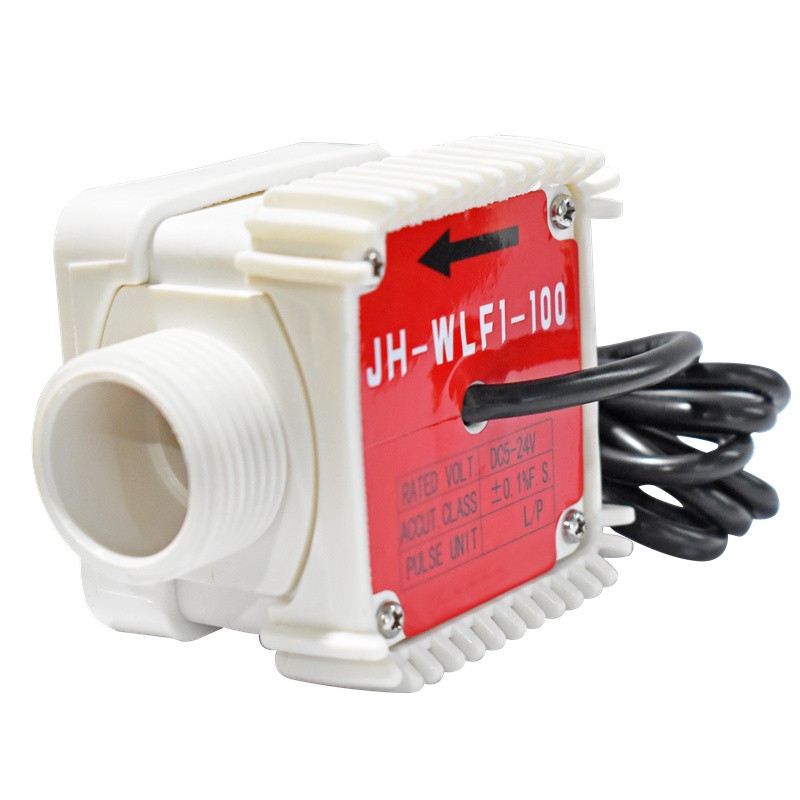

Model: W LF1 Digital Sensor Flow Meter
-
Connection: G1 Standard Thread
-
Flow Range: 10-100 L/min
-
Working Pressure: 0.3 MPa
-
Accuracy: ≤3% Span Error
-
Repeatability: ≤3%
-
Output: Digital Pulse Signal
-
Media: Diesel, Gasoline, Urea, Chemical Liquids
-
Operating Temperature: -20°C to +80°C
-
Conclusion
The W LF1 Sensor Flow Meter combines advanced digital sensing technology with robust engineering to deliver exceptional measurement performance for modern fluid handling applications. Its innovative non-contact design, precise digital output, and reliable operation make it the ideal choice for organizations seeking accurate, maintenance-free flow monitoring solutions. Whether integrated into fuel dispensing systems, chemical processing applications, or industrial transfer operations, the W LF1 provides the measurement reliability and digital connectivity required for today's smart operations.
For operations demanding precise flow measurement, digital connectivity, and long-term reliability, the W LF1 Sensor Flow Meter offers the perfect combination of advanced technology and practical performance. Its sensor-based design represents the future of flow measurement technology, providing accurate data and reliable operation that modern processes require.
