Description
Precision Pressure Control for Critical LPG and Ammonia Applications

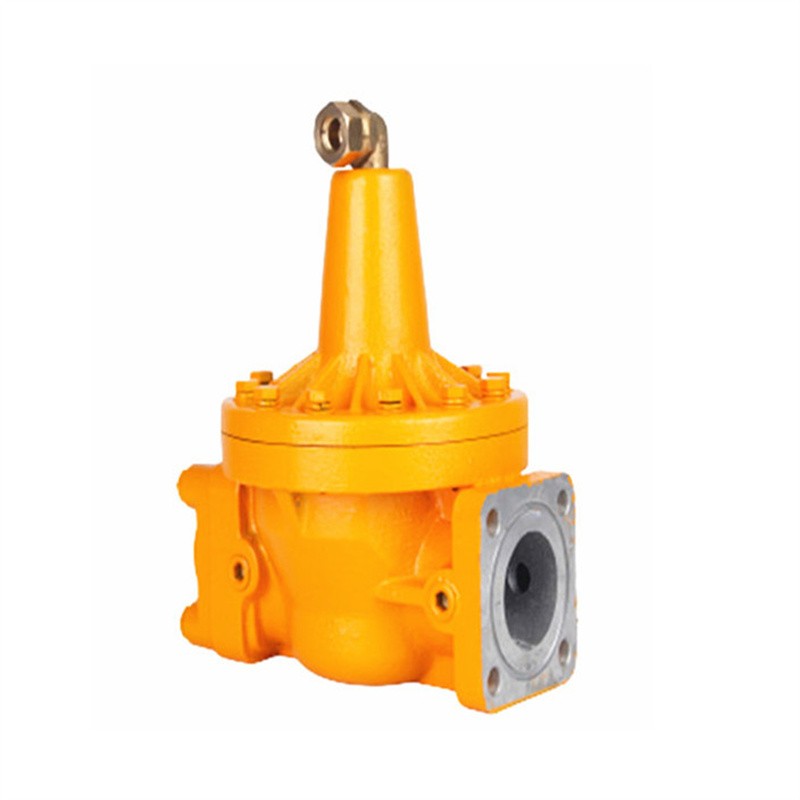

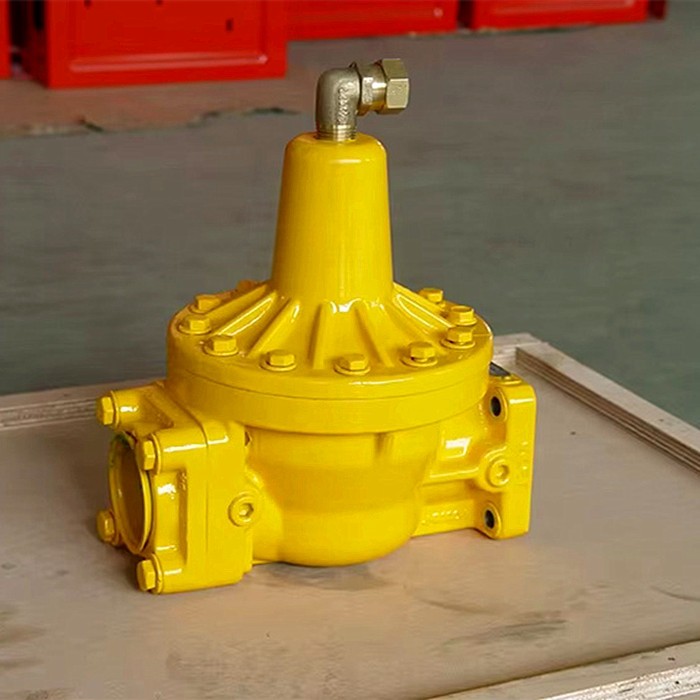

The V-50-LPG Differential Valve is an engineered safety component specifically designed for high-vapor-pressure liquid metering systems. This 2-inch valve works in precise coordination with your Flow meter's vapor eliminator to maintain system pressure integrity and ensure measurement accuracy for liquefied petroleum gas (LPG) and anhydrous ammonia (NH3) applications.
Advanced System Integration
Mounted directly on the meter outlet and factory-connected to the vapor eliminator via copper tubing, the V-50-LPG creates an intelligent pressure management system. When vapor enters the system, the valve automatically engages to stop product flow, maintaining sufficient pressure to keep high-vapor-pressure products in their liquid state throughout the measurement process.
Operational Excellence
The differential valve employs a sophisticated mechanical system where vapor pressure from the eliminator combines with the valve's spring tension to maintain closure until all vapor is eliminated. This fail-safe design ensures that flow only resumes when the system contains pure liquid, guaranteeing measurement accuracy for custody transfer applications.
Technical Specifications
-
Model: V-50-LPG
-
Connection Size: 2 Inch
-
Maximum Flow Rate: 760 L/min
-
Working Pressure: 25 Bar / 350 PSI
-
Body Material: Aluminum
-
Compatible Meter: M-50 Series
Key Features
-
Maintains liquid state of LPG and NH3 through precise pressure control
-
Spring-loaded fail-closed mechanism for enhanced safety
-
Factory-calibrated copper tubing connection for immediate installation
-
Automatic flow interruption during vapor presence detection
-
High-strength aluminum construction for durability
Applications
-
LPG loading/unloading systems
-
Anhydrous ammonia transfer and measurement
-
Bulk chemical distribution
-
Custody transfer operations
Ensure your metering system maintains peak accuracy and safety with the V-50-LPG Differential Valve – the professional choice for critical fluid measurement applications.
