Description
Product Overview

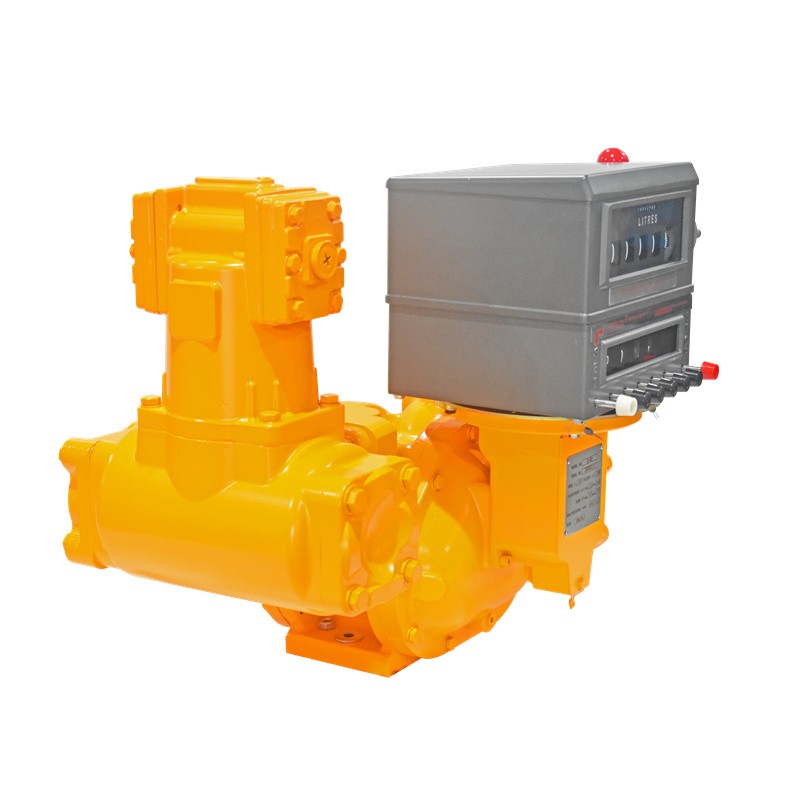

The M-80 TCS Positive Displacement Flow meter represents the gold standard in precision measurement technology for critical hydrocarbon transfer operations. Engineered specifically for custody transfer applications of petroleum products, refined fuels, aviation fuels, and a wide spectrum of industrial liquids, this Flow meter combines exceptional accuracy with robust durability. As part of the advanced M Series of precision measurement instruments, the M-80 TCS incorporates innovative rotary motion positive displacement technology that ensures reliable performance in the most demanding operating environments. The meter's sophisticated design makes it ideal for pipeline transfer terminals, tank farm operations, loading rack systems, and any application where measurement accuracy directly impacts operational efficiency and profitability.
Advanced Engineering Design
The M-80 TCS features a revolutionary three-rotor positive displacement system that sets new standards in flow measurement technology. Unlike conventional flow meters that experience performance degradation due to mechanical wear, this meter operates without metal-to-metal contact within the measurement chamber. The unique rotor configuration creates hydraulic sealing through the fluid's own properties rather than through mechanical compression, resulting in exceptional long-term accuracy and minimal maintenance requirements.
This innovative approach ensures minimal flow restriction and exceptionally low pressure drop across the meter, allowing for efficient system operation whether using gravity flow or pump pressure systems. The optimized fluid dynamics significantly reduce energy consumption and operational costs while maintaining the highest standards of measurement precision.
Precision Performance Characteristics
The M-80 TCS delivers unmatched measurement capabilities that meet the most stringent industry requirements for custody transfer applications:
• Exceptional Measurement Accuracy: Maintains consistent precision across the entire flow range, with performance that exceeds industry standards for fiscal measurement applications. The meter's design ensures sustained accuracy without degradation over time, providing reliable performance that reduces the need for frequent recalibration.
• Superior Repeatability: Delivers consistent measurement results across continuous operating cycles, ensuring reliable batch after batch performance that is essential for custody transfer operations.
• Extended Service Life: The wear-free operation philosophy extends the meter's operational lifespan while reducing maintenance requirements and total cost of ownership.
Comprehensive Operational Capabilities
The M-80 TCS is engineered to handle the most challenging operating conditions and fluid properties:
• Broad Viscosity Range: Accommodates fluids ranging from light solvents and aviation fuels (below 30 SSU/1 cP) to heavy crude oils and viscous liquids (up to 1,500,000 SSU/325,000 cP) without compromising measurement accuracy.
• Wide Temperature Range: Maintains precise measurement capabilities across extreme temperature conditions from -40°F (-40°C) to 160°F (71°C), ensuring reliable performance in diverse operating environments.
• High-Pressure Capability: Designed to handle system pressures up to 150 PSI, making it suitable for various pipeline and transfer applications.
Integrated Measurement System
The M-80 TCS is available as a complete measurement system package that includes:

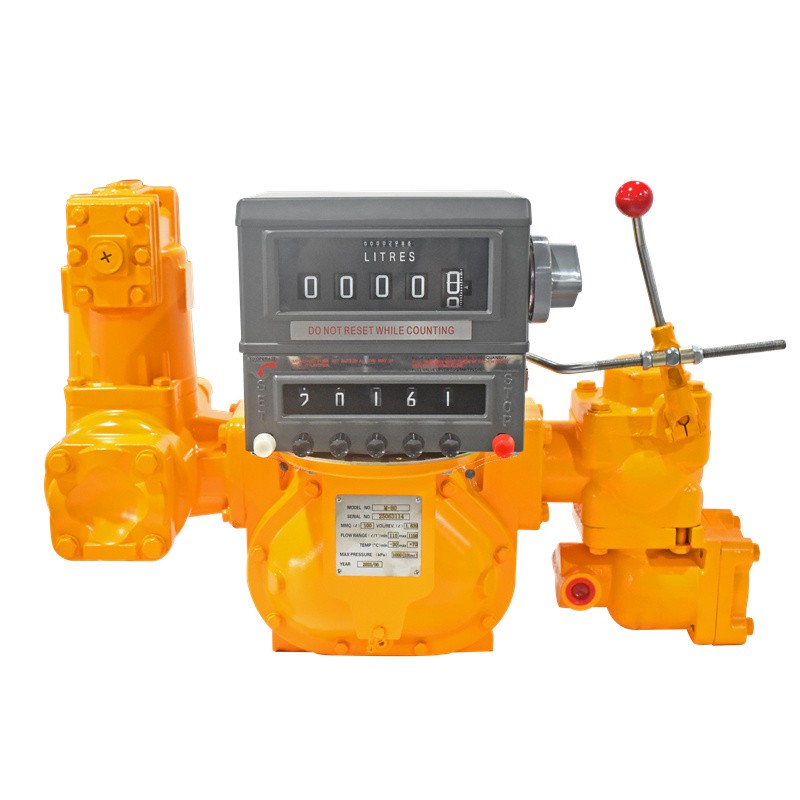

• Precision Mechanical Register: Features a high-visibility display with advanced counting technology for clear reading of total and batch volumes, even in high-speed counting applications.

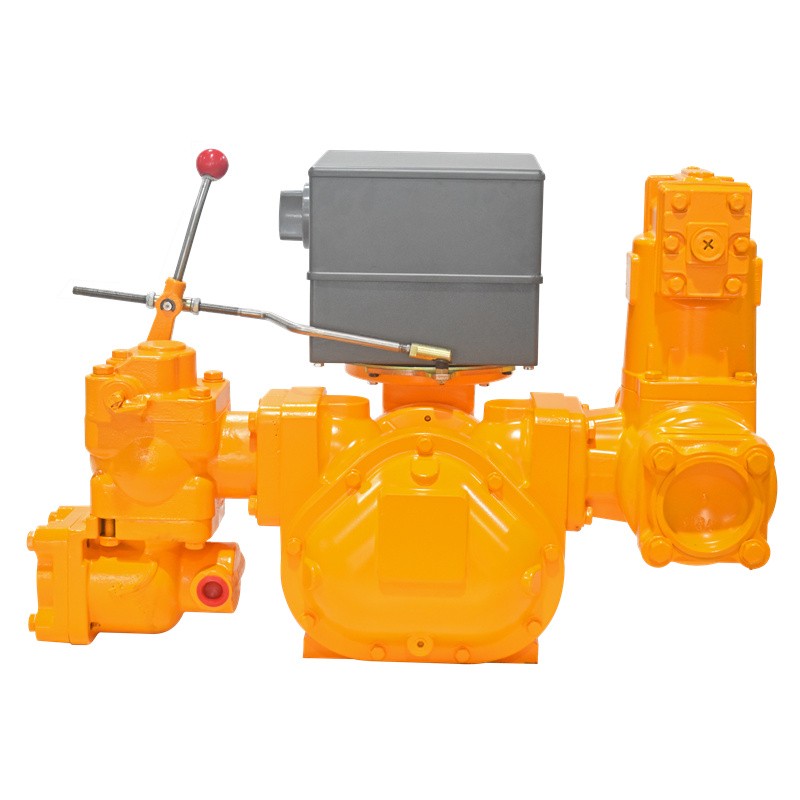

• Preset Control Valve: Enables precise batch control with automatic shut-off functionality for loading and transfer operations.
• Integrated Air Eliminator: Removes entrained air from the liquid stream before measurement, ensuring accuracy is not compromised by gaseous components.
• Protective Strainer: Safeguards measurement components from pipeline debris and particulate matter that could affect performance.
Installation Flexibility
The M-80 TCS offers unparalleled installation versatility with its right-angle design configuration. The meter accommodates various mounting orientations and can be configured with standard or custom fittings to meet specific installation requirements. This flexibility simplifies integration into new or existing systems while maintaining optimal measurement performance.
Application Versatility
The M-80 TCS is ideally suited for numerous demanding applications:
• Custody Transfer Operations: Provides fiscal measurement accuracy for pipeline transfer, terminal operations, and inter-company transactions.
• Loading Rack Systems: Ensures precise measurement for tanker truck and rail car loading/unloading operations.
• Terminal Operations: Supports accurate inventory management and transfer operations at storage terminals and distribution facilities.
• Refinery Applications: Delivers reliable measurement for blending, batching, and process transfer operations.
• Marine Loading: Provides accurate measurement for dock loading and unloading operations.
Quality and Compliance
The M-80 TCS is manufactured to meet international standards for quality and performance. The meter's design complies with relevant industry specifications and accuracy requirements, ensuring that it meets the rigorous demands of modern hydrocarbon measurement applications.
Technical Specifications
-
Model M-40C M-50C M-80C M-100C Size 40mm/1” 50mm/2″ 80mm/3″ 100mm/4” Flow Range 25-250L/mi n 55-550 L/min 115-1150 L/min 170-1700L/min Volume Per Revolution 0.309L 0.681L 1.839L 5.102L Dimension 51 X46X49 cm 51 X46X49cm 58x50X61cm 76X64X72cm Net Weight 23kg 26kg 40kg 70Kg Gross Weight 25kg 28kg 47kg 93Kg Max Pressure 10Bar Accuracy ±0.2% Repeatability ±0.2% Standard Measurement Liter/ US Gallon/ IMP Gallon Package Wooden Case
Conclusion
The M-80 TCS Positive Displacement Flow Meter represents the ideal solution for organizations that demand the highest standards of measurement accuracy and operational reliability. Its advanced design, superior performance characteristics, and robust construction make it the preferred choice for critical measurement applications throughout the hydrocarbon industry. By combining precision engineering with practical operational features, the M-80 TCS delivers unmatched value and performance that meets the evolving needs of modern industrial measurement requirements.
Contact our technical team today to discuss how the M-80 TCS can enhance your measurement capabilities and operational efficiency.
