Description

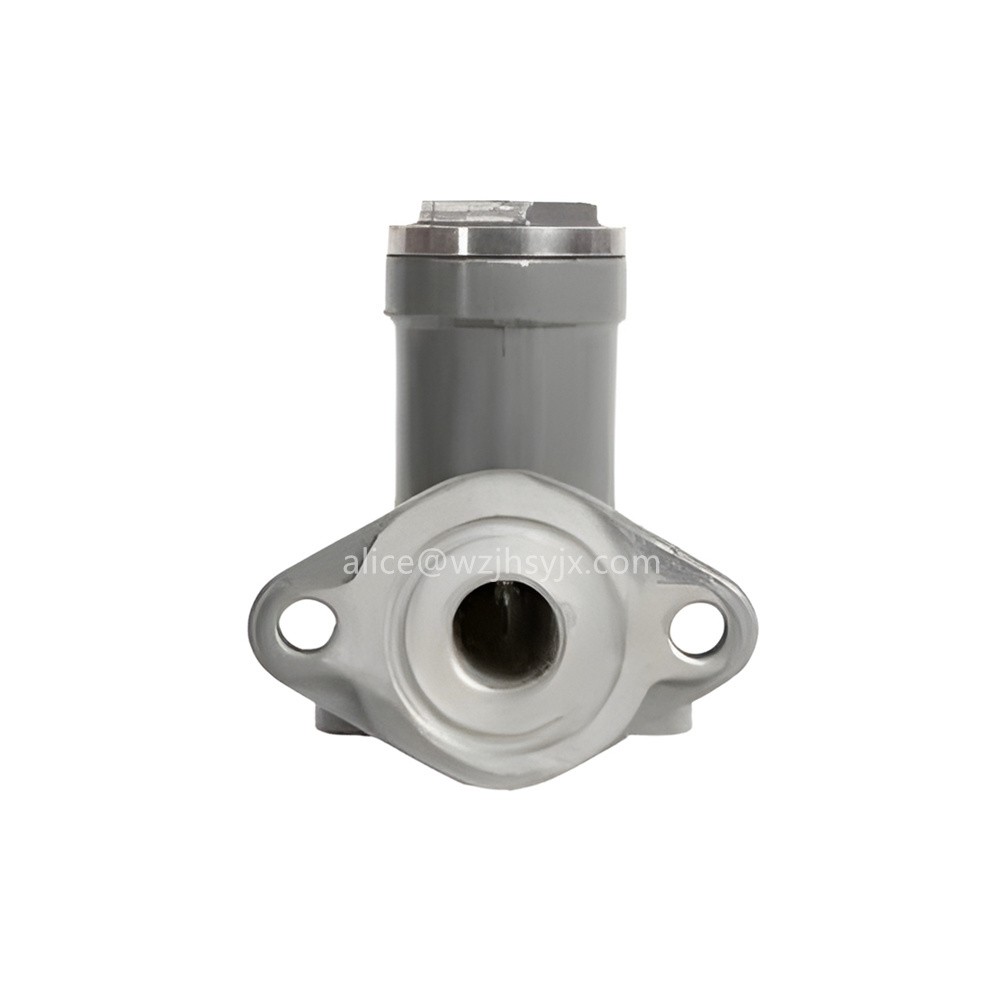

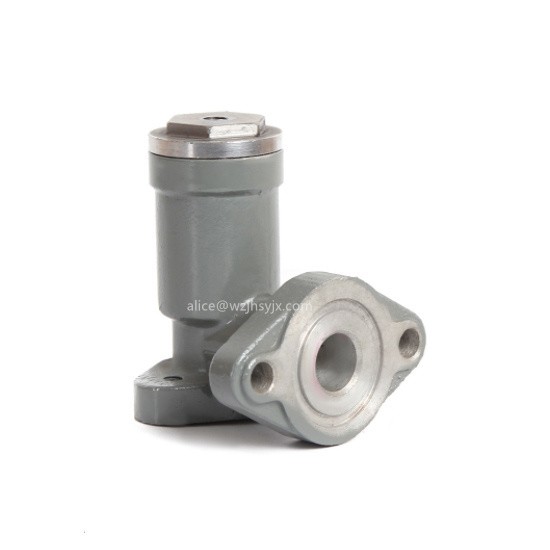

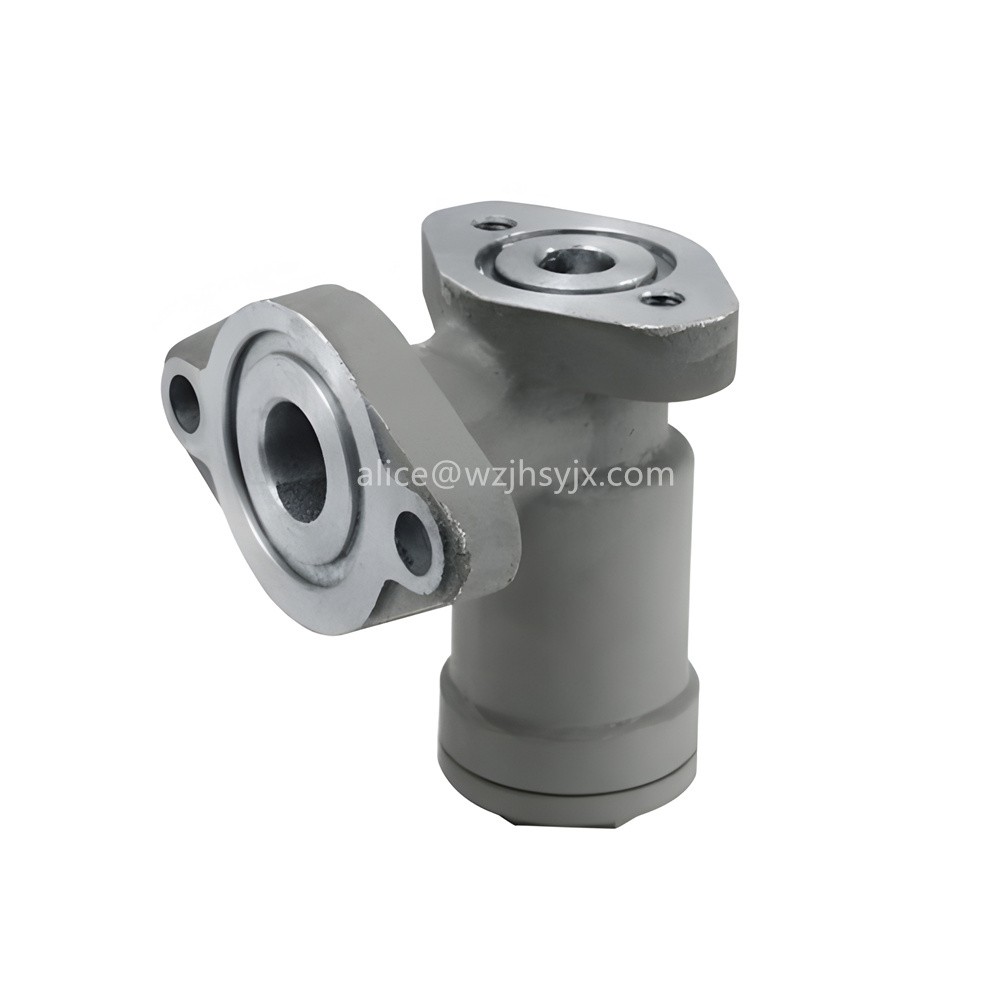

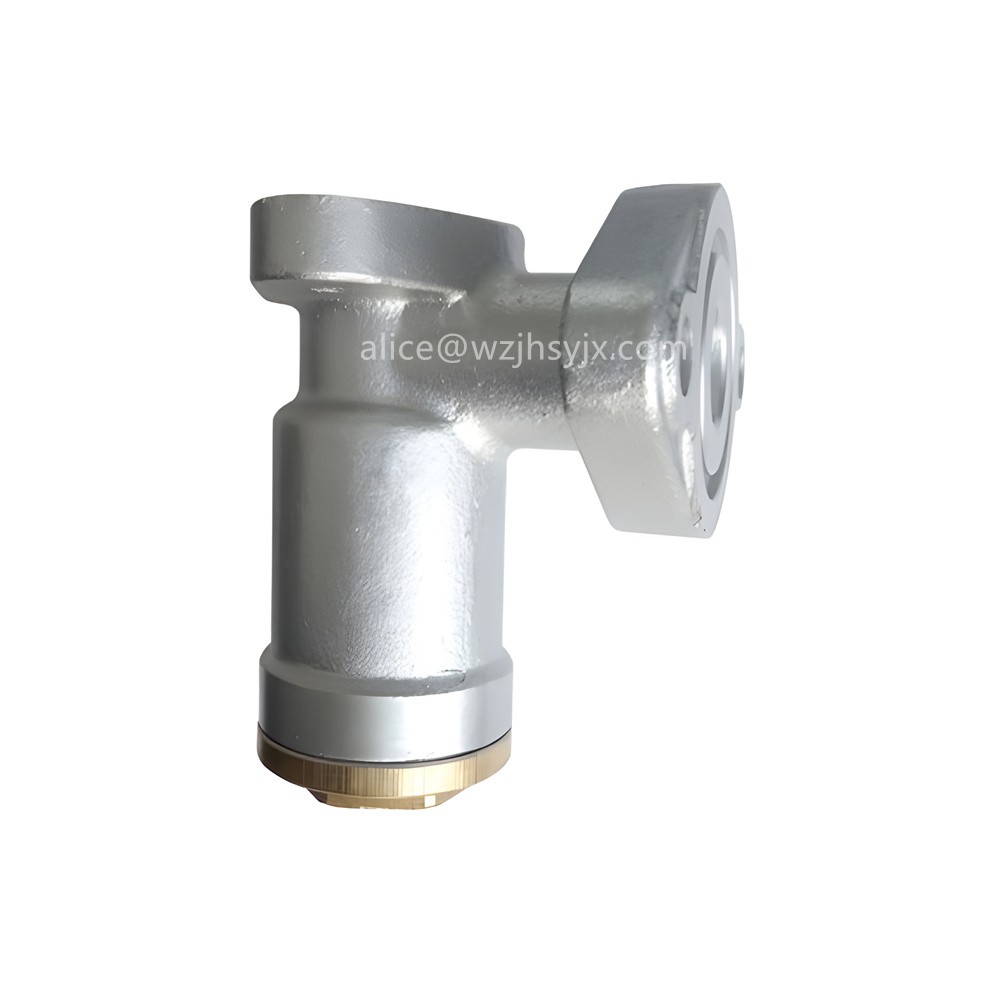

LPG Pressure Relief Valve for LPG dispenser
Type: Valves, Machining Services
Quality: 100% Tested
Application: Machine Parts
Usage: LPG
Specification: High Resolution
Name: LPG Differential Valve
Color: Grey
Certificate: ISO9001:2008
Technical Specifications
Pressure Difference 0.3 Bar 0.3 Bar
Working Pressure: 2.5 MPa
By - Pass Pressure: 4.0 MPa
Package: 24 pieces per carton
Flow Rate 50 - 60 L/min 50 - 60 L/min
Net Weight: 16 kg
Gross Weight: 18 kg
Dimension: 340×260×380 mm
This type safety valve is a reliable device applied to various pressure vessels and pipes in a system. When the system pressure rises above the rated value, the valve will automatically open and discharge gas into the atmosphere. This function effectively prevents the system from potential accidents caused by over - pressure.
Liquefied Petroleum Gas Relief Valve/Liquefied Petroleum Gas Dispenser Parts
