Oval Gear Pump G3/4” AICHI ADBLUE DEF

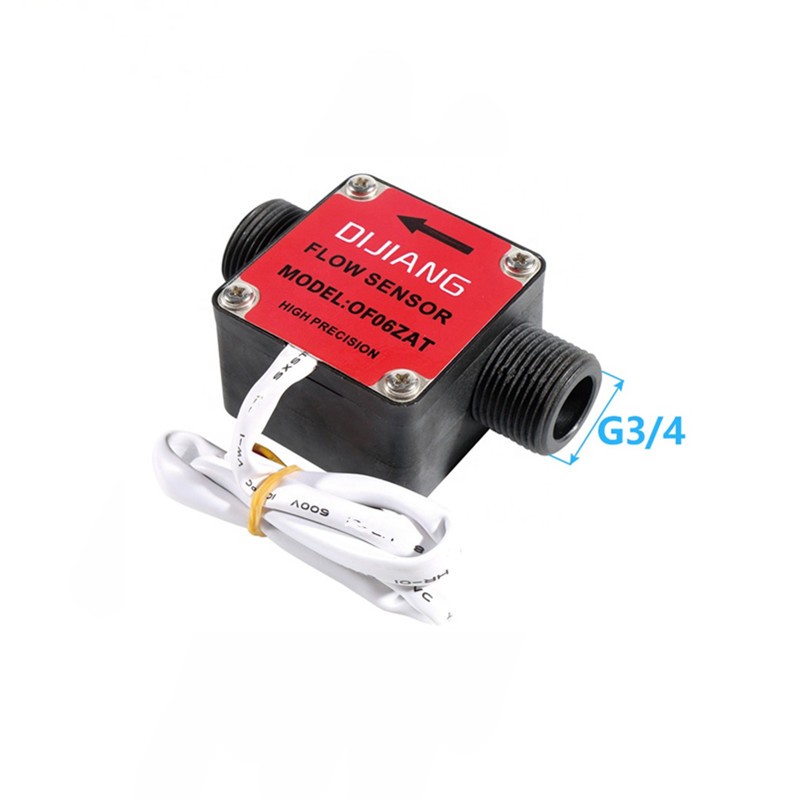

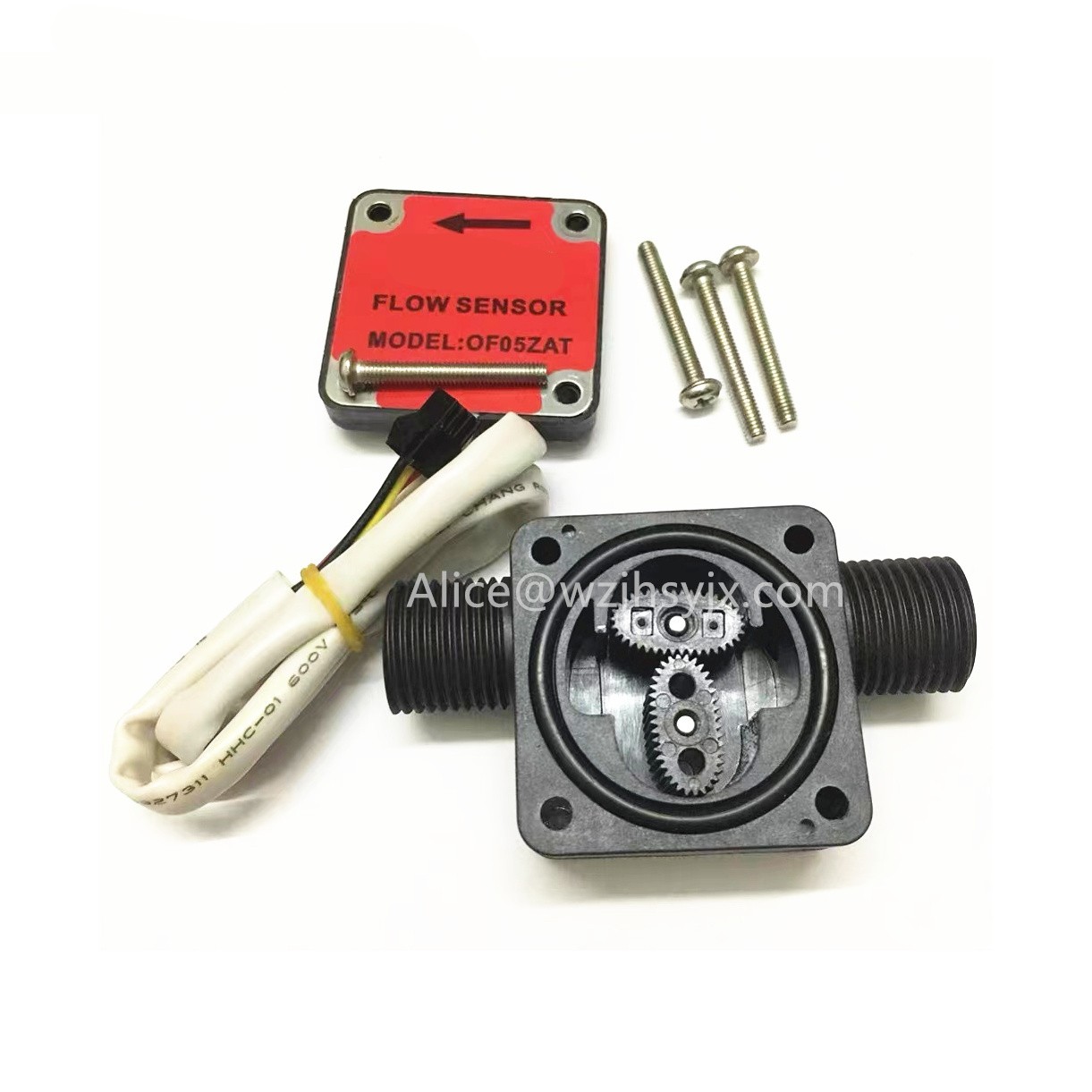

OF06ZAT G3/4 DN20 Water Flow Sensor includes a plastic body housing, rotor / Oval gear, and a hall-effect sensor, and PCB electronics board. When the water/liquid flows through the (oval gear) rotor, then the rotor is rolled. Its speed changes with different rates of flow. Then the magnetic rotor makes a reaction to the Hall sensor, the hall-effect sensor outputs the corresponding pulse signal.
Features:
Flow range : 0-50LPM
Flow sensor connecting type: G 3/4″
Accuracy: ±0.5%
Working environmental: milk, liquid, light oil, diesel
Material: RoHs, no-toxic
Structure: Splash-proof structure (IP64 compatible) for indoor use
Open collector output: Open collector pulse (Capacity: 6 mA DC or less)
Specifications:
Input Voltage (V): 7 – 24VDC
Frequency(Hz): Approx. 30Hz
Power Consumption (Watt): 0.2VA or less
Structure: Splash-proof structure (IP64 compatible) for indoor use
Connector: G3/4"
Applied voltage range: 7 – 24VDC (*1)
Power consumption: 0.2VA or less
Protection: Splash-proof structure (IP64)
PACKAGE INCLUDES:

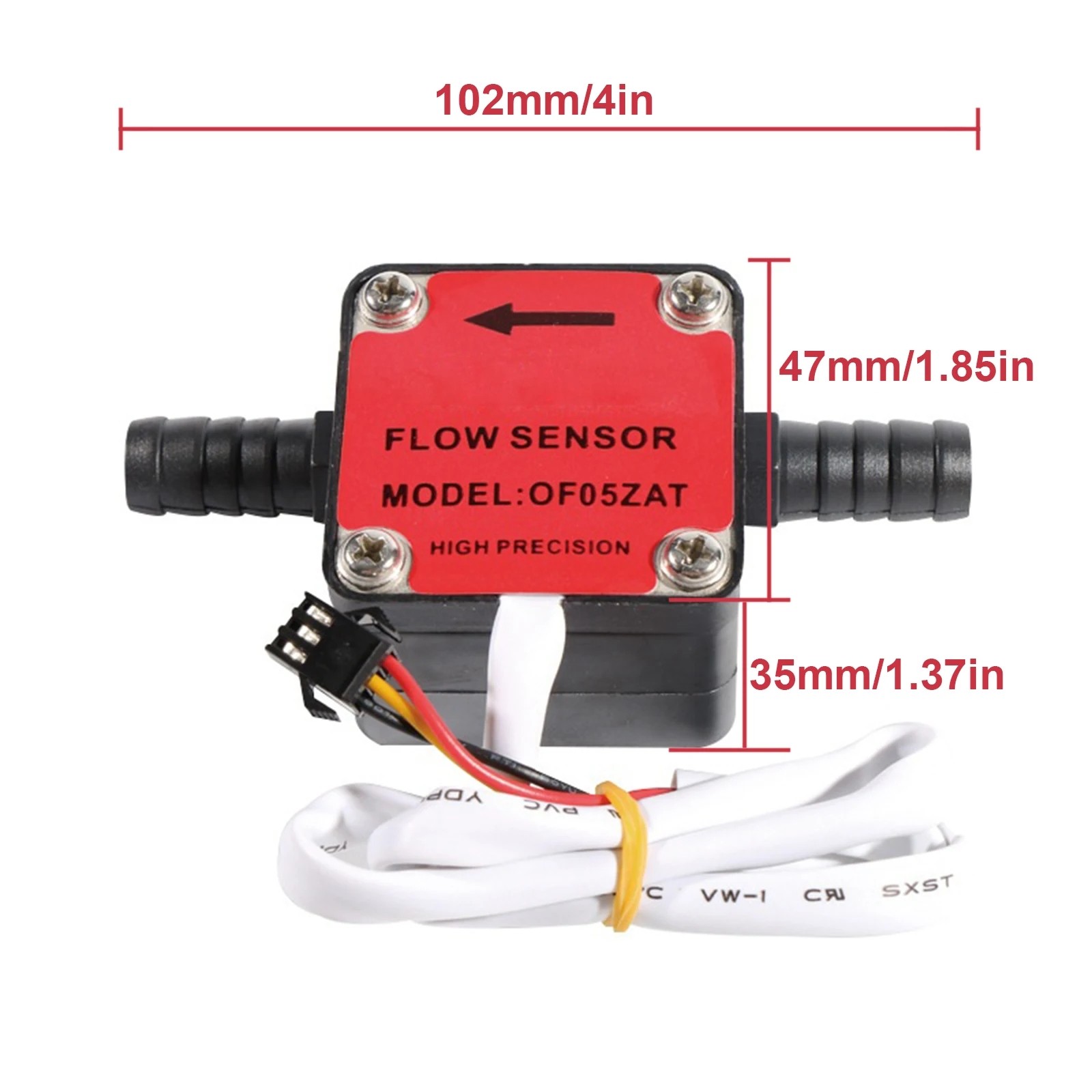

1 x OF05ZAT Liquid Flow Sensor G3/4 DN20 for Diesel & Water
