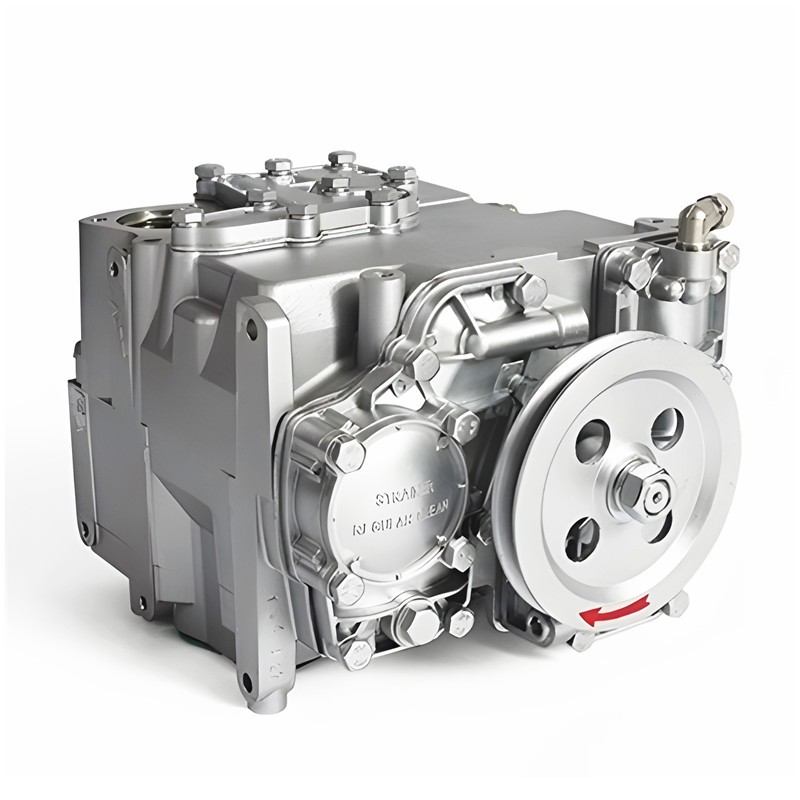

Tatsuno Fuel Diespenser Gear Pump 90
Pump monoblocks are used to supply fuel and separate air from it from the tank into the hydraulic system of the fuel dispenser. The monoblock reduces hydraulic losses and reduces the dimensions of the hydraulic system of the fuel dispenser.
SPEED 680-980 rpm
FLOW RATE 45-90 L/Min
VACUUM ≥0.06MPa
NOISE ≤72dB
WORKING PRESSURE 0.18~0.3 MPa
