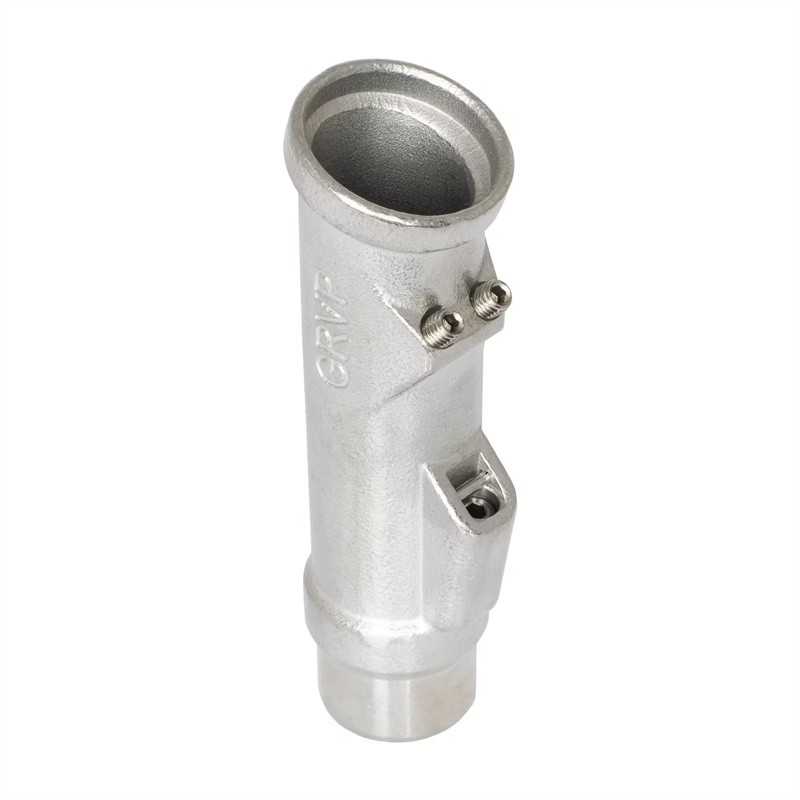

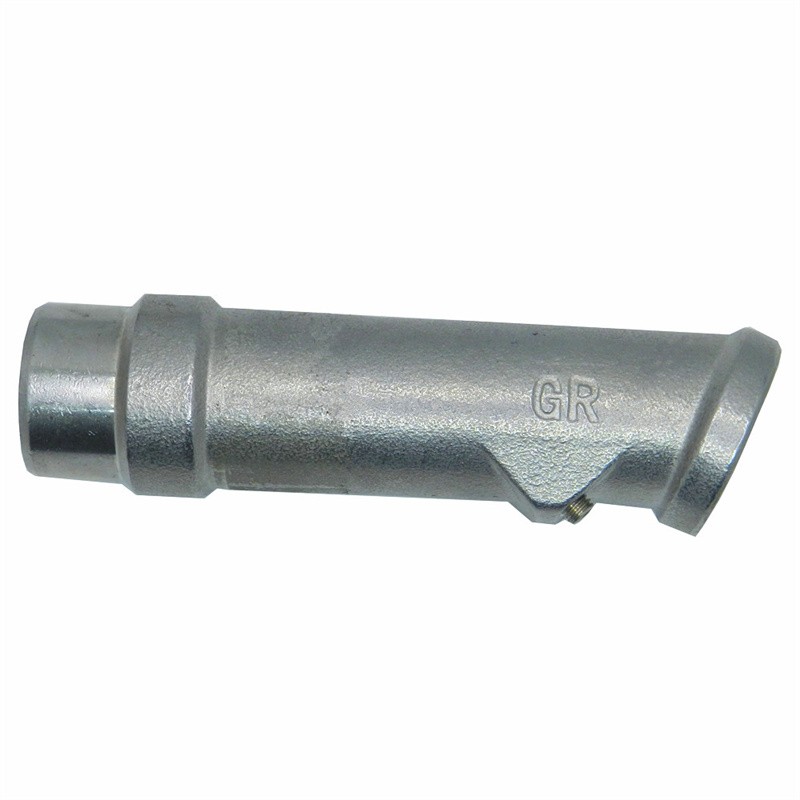

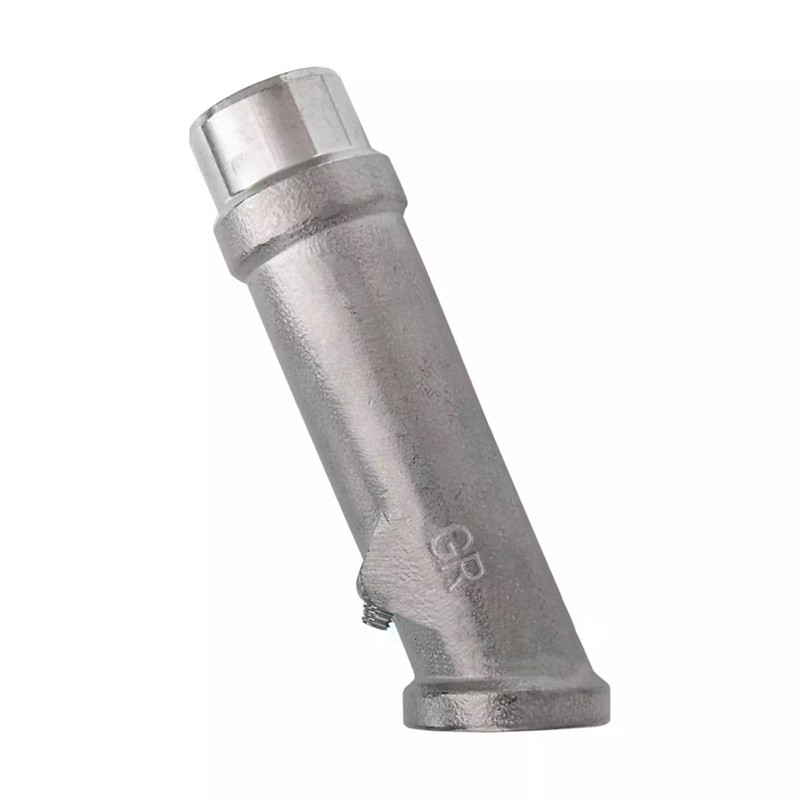

Gas trap apron for tap ZVA GR EA 092.1
The EA 092.1 gas trap tip is repurposed to trap vapors coming out of the vehicle tank during refueling. These traps are used in ZVA2 GR taps and their analogs.
ZVA GR detailing
EA 092.1 gas trap tip description and operating principle
The gas trap tip is attached to the spout of the fuel dispensing tap using two EB 306 stud bolts. Sealing of the joint with the body of the fuel dispensing tap is achieved using the EO 171 rubber seal. The tip is made of cast aluminum, which ensures high reliability and spark safety during operation.
Dimensions
(LxWxH) 11 × 4 × 3.5 cm
0.001 m³
Weight 0.15 kg
