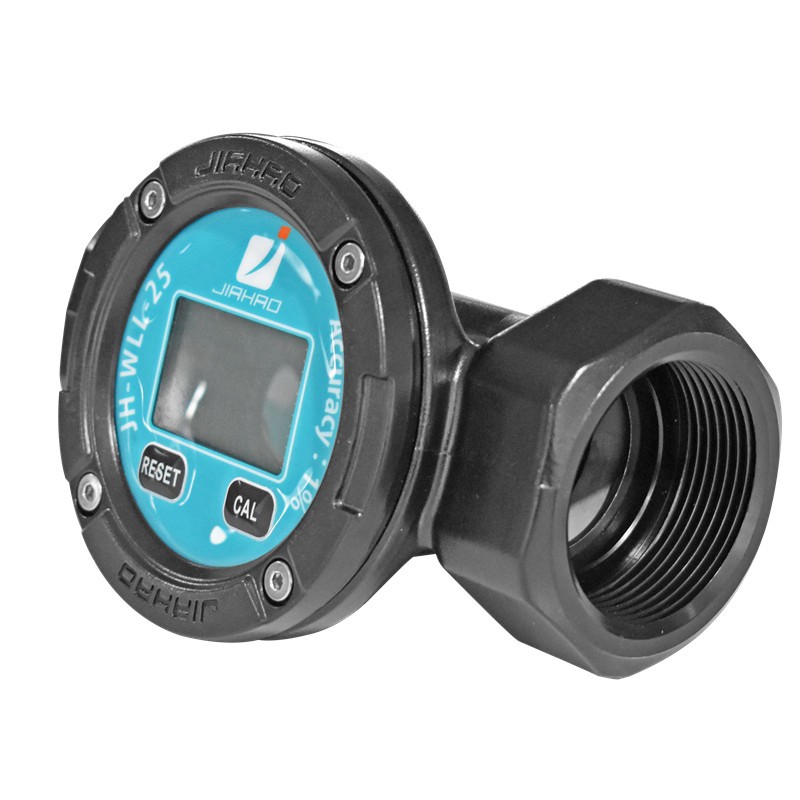

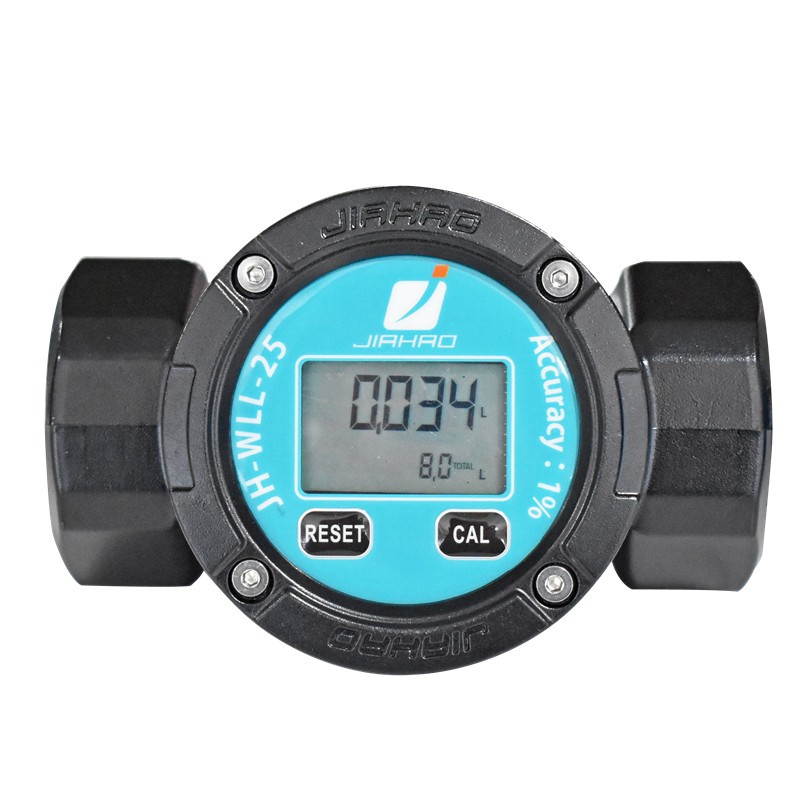

Digital turbine Flow meter electronic flow indicator sensor gasoline fuel diesel water
Digital turbine Flow meter flowmeter caudalimetro electronic flow indicator sensor gasoline fuel plomeria water dn25
Specification:
Origin: Cn (origin)
Model Number: JH-WLL25 40 50
Measuring Range: 200l/min
Common Pipe Bore Size: 1“， 1.5”， 2.0“
Connection Type: Female BSPP，BSPT Thread
Accuracy ±1%
Repeatability ±0.5%
Working pressure 0.6Mpa
Measurement range 400L/min Max
Single range 0.00-9999.9
Total range 0.00-999999.9
Measurement units L, GAL, PTS, QTS
Advantages:
1. It has an anti-vibration effect during operation, which can effectively prevent the flow meter from running due to pipeline vibration.
2. The measurement unit can be replaced.
When the display screen does not display:
1. The battery is low and the battery needs to be replaced.
2. The display screen is damaged and the display screen needs to be replaced.
3. The turbine magnet has impurities and the turbine magnet needs to be cleaned.
4. The Hall is damaged and the PCB board needs to be replaced.
