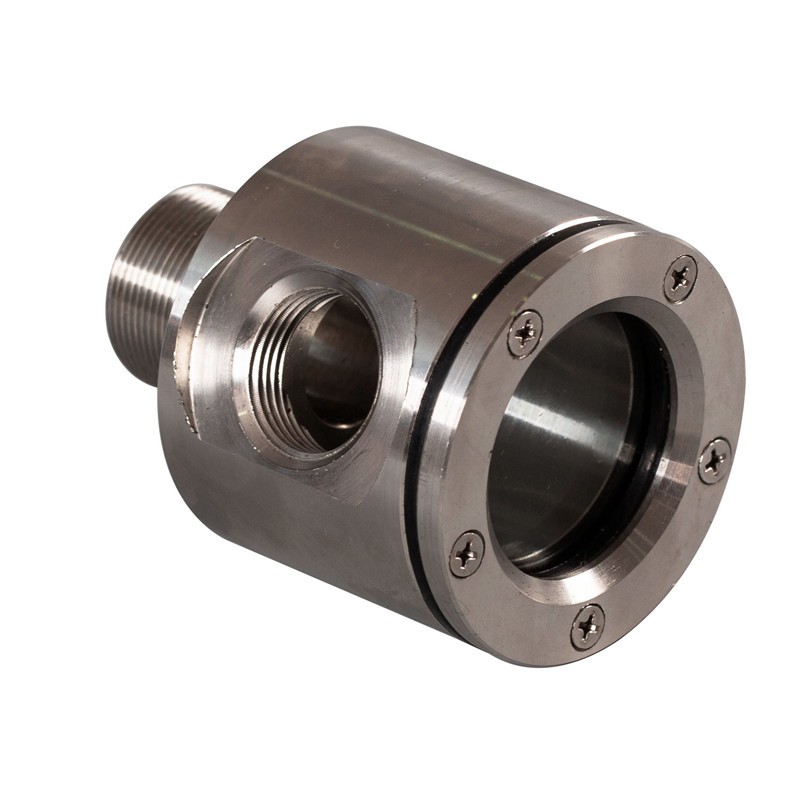

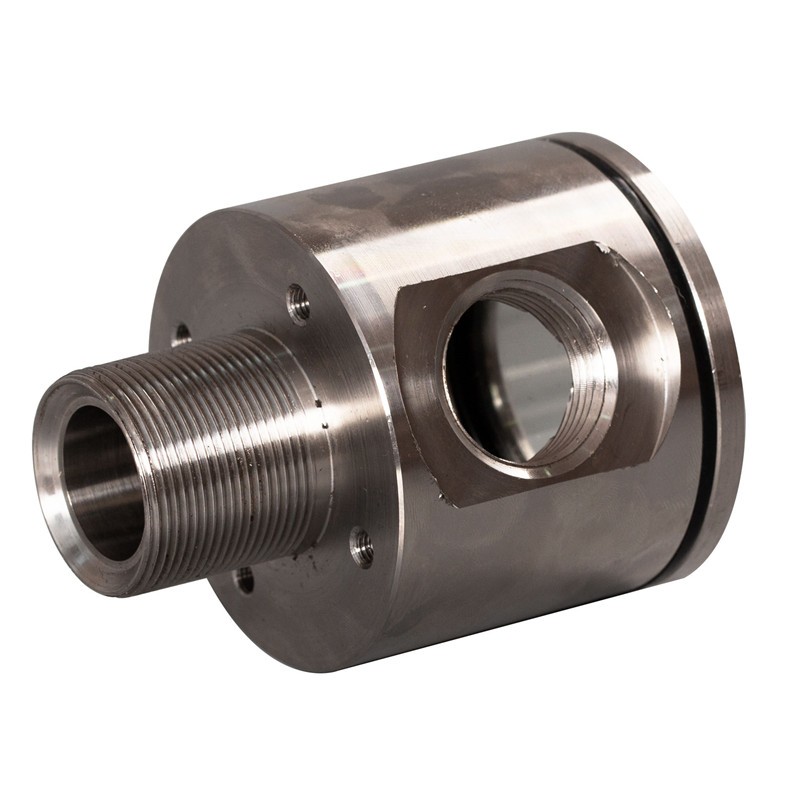

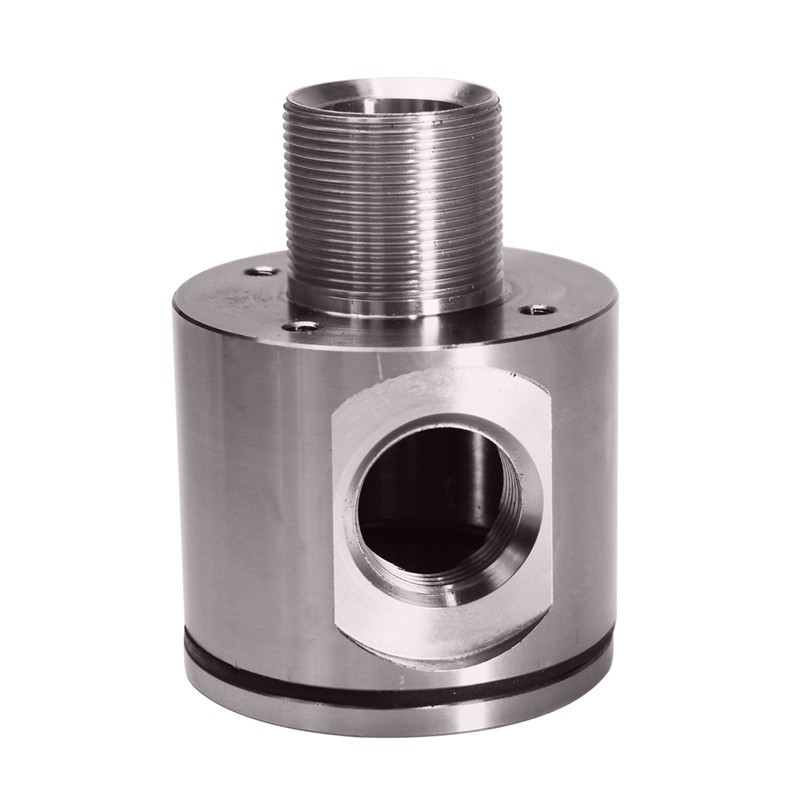

single window oil sight glass for gas station 1”
Function: Installed at the connection between the oil dispenser and the oil pipe, and the oil circuit can be observed through the oil mirror.

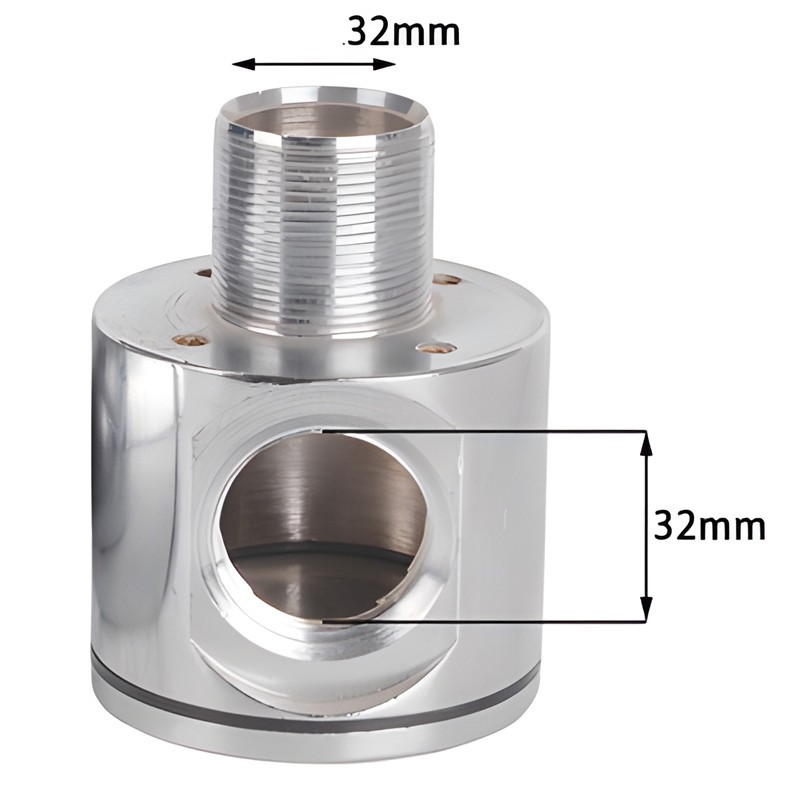

Specifications and dimensions: 6-point oil sight glass: (3/4”) internal thread diameter at the outlet end is about 24.5MM; total height is about 83MM;
external thread at the inlet end M33*1.5 The inner diameter is about 25MM; 4 fixing screw holes M6 *1 The center distance is 50MM and the adjacent distance is 35MM.
1-inch sight glass: 1-inch (1”) internal thread diameter at the outlet end is about 30.5MM; total height is about 83MM;
external thread at the inlet end M33*1.5 inner diameter is about 25MM;
4 fixing screw holes M6*1 center distance 50MM phase The adjacent distance is 35MM.
