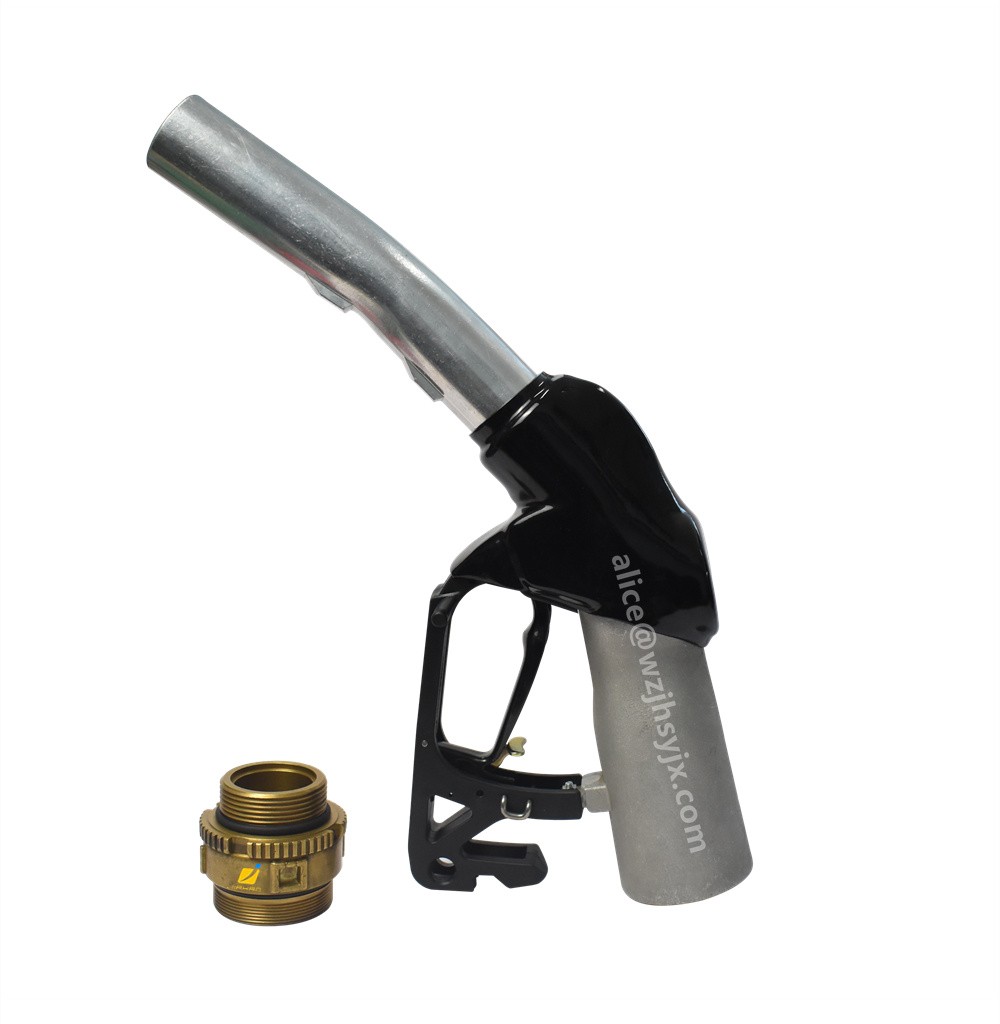

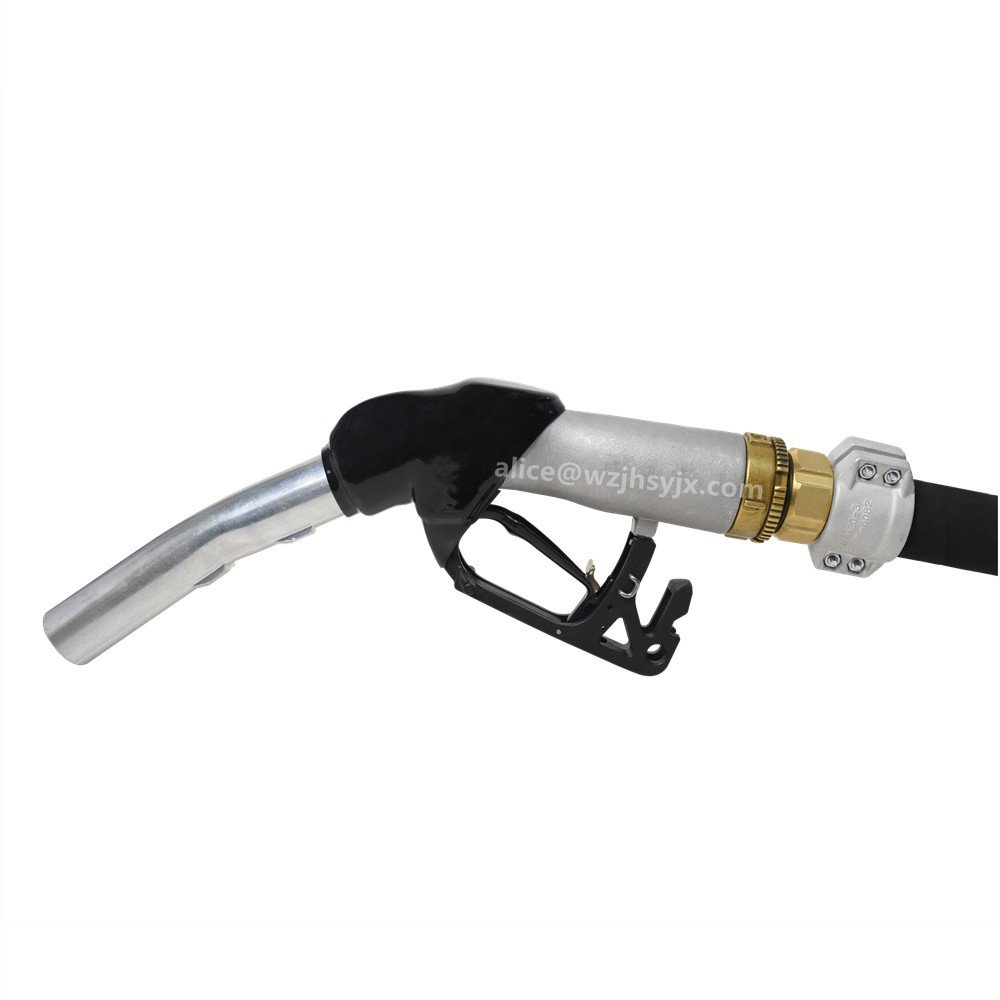

ZVA 32 Automatic Nozzle with Swivel High Flow
DN32 Automatic Nozzle is designed for gasoline, diesel, fuel oil, petroleum, Not suitable for viscous oils and water or solvents. Flow rate is up to 200L/m, for large vehicle, tank refueling, aircraft refueling and railroad locomotives.
Features and Benefits:
It is equipped in a hold-open latch which enables blocking the lever in one of the three positions reflecting the speeds of flow rate.
Depending on the dispenser type, the nozzle is equipped with a proper guard for easy hanging and locking in the nozzle boot.
It is compatible with DN 32 (1-1/2") hose.
The nozzle has a 1-1/2" brass or aluminum fitting swivel.
100% Factory tested.
Material
Body Aluminum
Spout Aluminum
Swivel Brass, Aluminum
Seals Buna-N, Viton
Covers PVC
Technical Specifical
Working Pressure 0.05 - 0.6 Mpa
Flow Rate 200 L/m
Auto Shut-off sensibility 0.1 second
Spout Internal Diameter 39 mm
Intel Thread Female/Male, BSP/NPT, 1-1/2"
Net Weight 1.76 KG
Swivel Net Weight 0.64 KG
