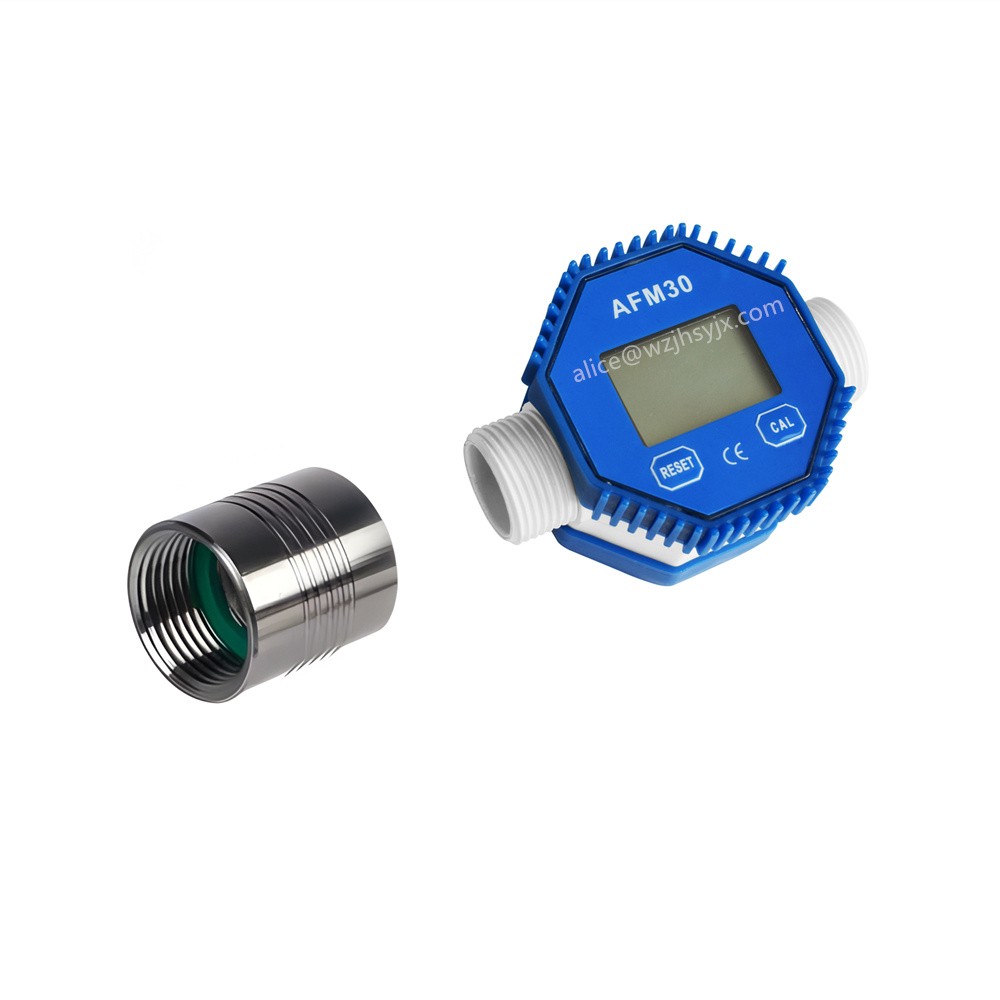

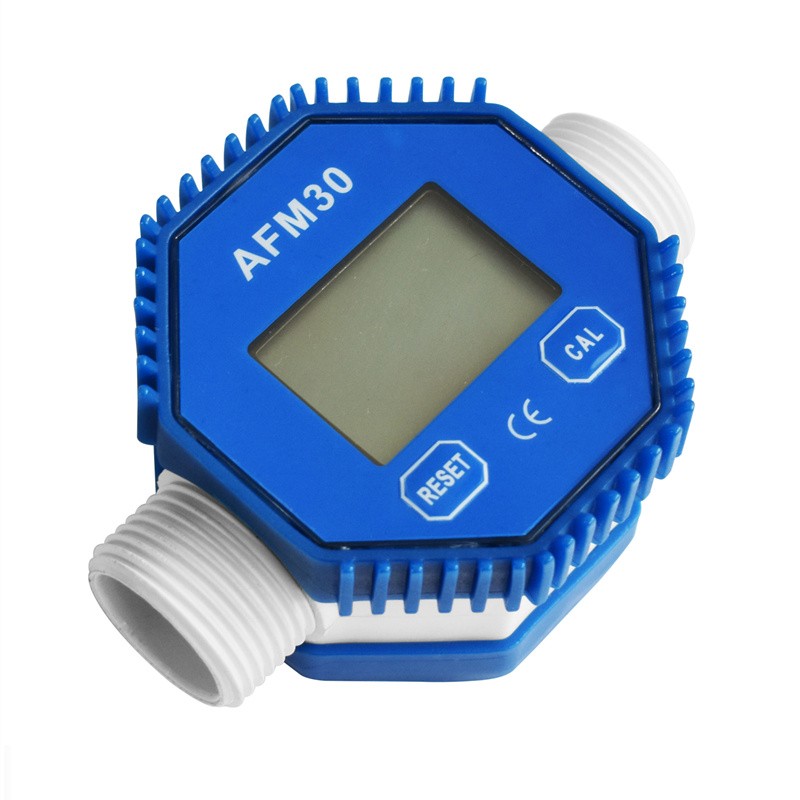

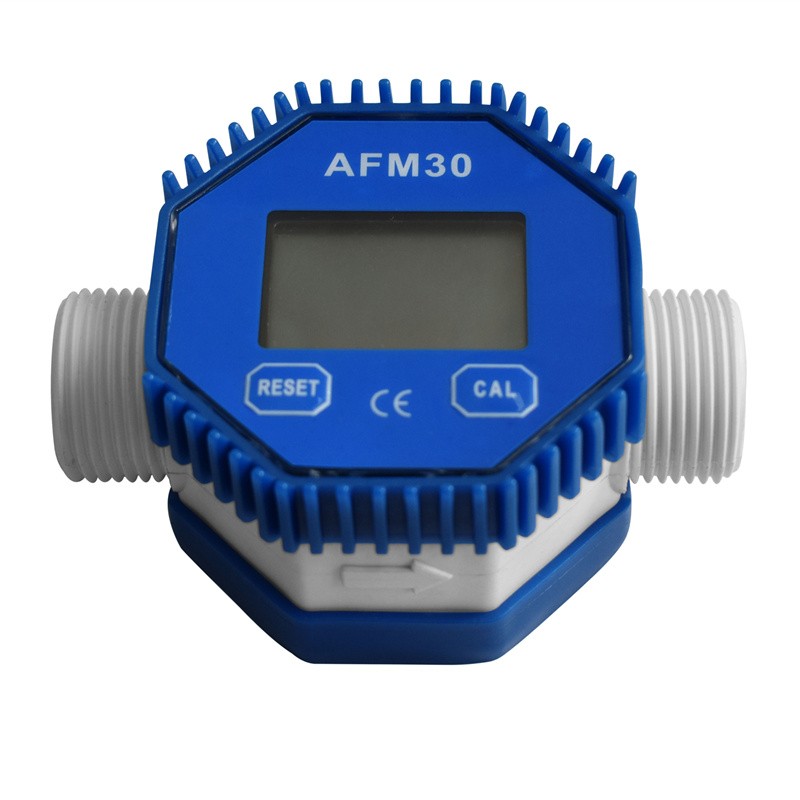

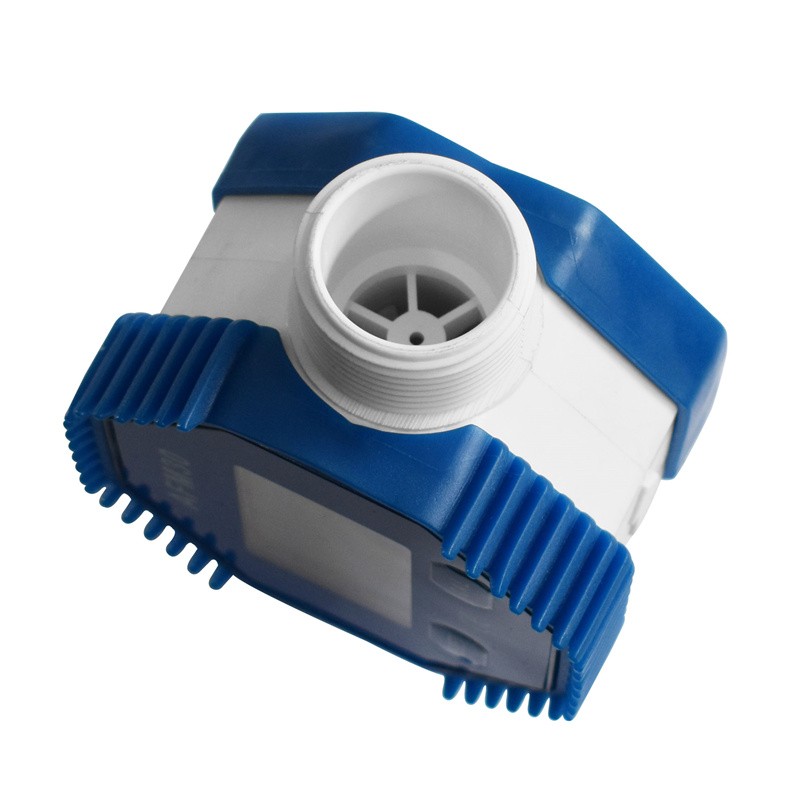

Octagonal AUS32 adblue Flow meter K24
Control panel with modular design, fully functional, simple structure, convenient operation. Can be widely used in petroleum, chemical, pharmaceutical, transportation, food to be industrial and commercial.
Specifications:
Model:K24
Media: methanol diesel fuel kerosene chemical liquid urea water
Importers: 1 inch internal thread
Length: 103MM
Measurement accuracy: ± 1%
Repeatability: ± 0.5%
Maximum working pressure: 20BAR
Operating voltage: 2.3-3.3V
Standby time: 2 years
Flow range: 10-120L / MIN
Single count: 0.00-999.9
The total cumulative number: 0.00-999999.9
Unit: L / L, gal / GAL, pint / PTS, quart / QTS
Single measurement cleared: RESET
Color: Blue
Setting units of measurement:
In the standby mode, or raise the amount of current display state
Press CAL + RESET button for 5 seconds
Enter unit conversion settings, press the RESET button
Followed by LTR → GAL → PT → QT → LTR choose the unit of measurement
While the cumulative filling volume displayed in the current unit of measure conversion after
Press the MENU key for 3 seconds to exit the unit conversion settings.
Note:
This product requires 2 AAA batteries, more convenient for you to use, this product comes with 2 AAA battery replaceable battery
Low Battery Tips
When the battery voltage is 2.2V to 2.4V, display LBat, to remind the user to replace the battery.
