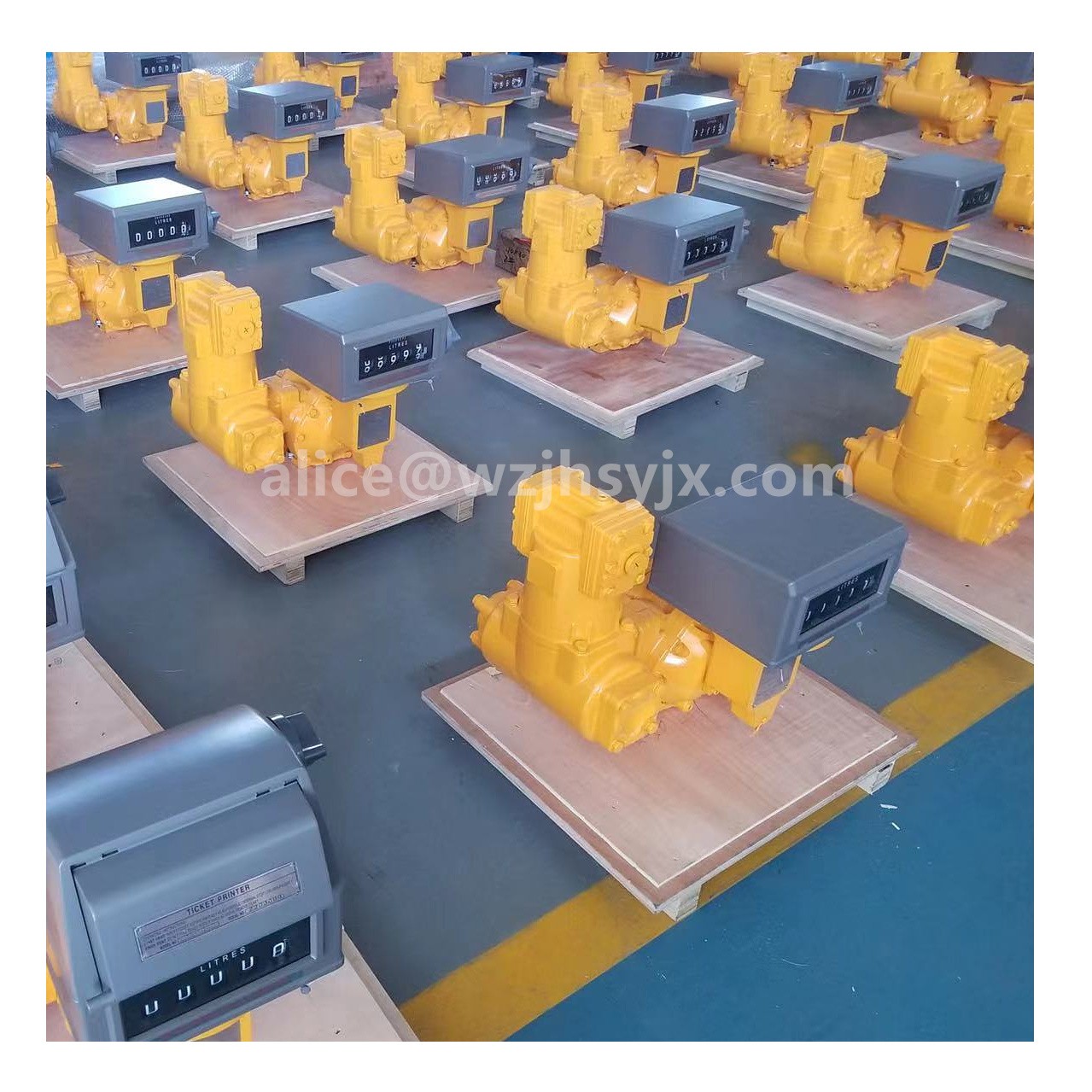

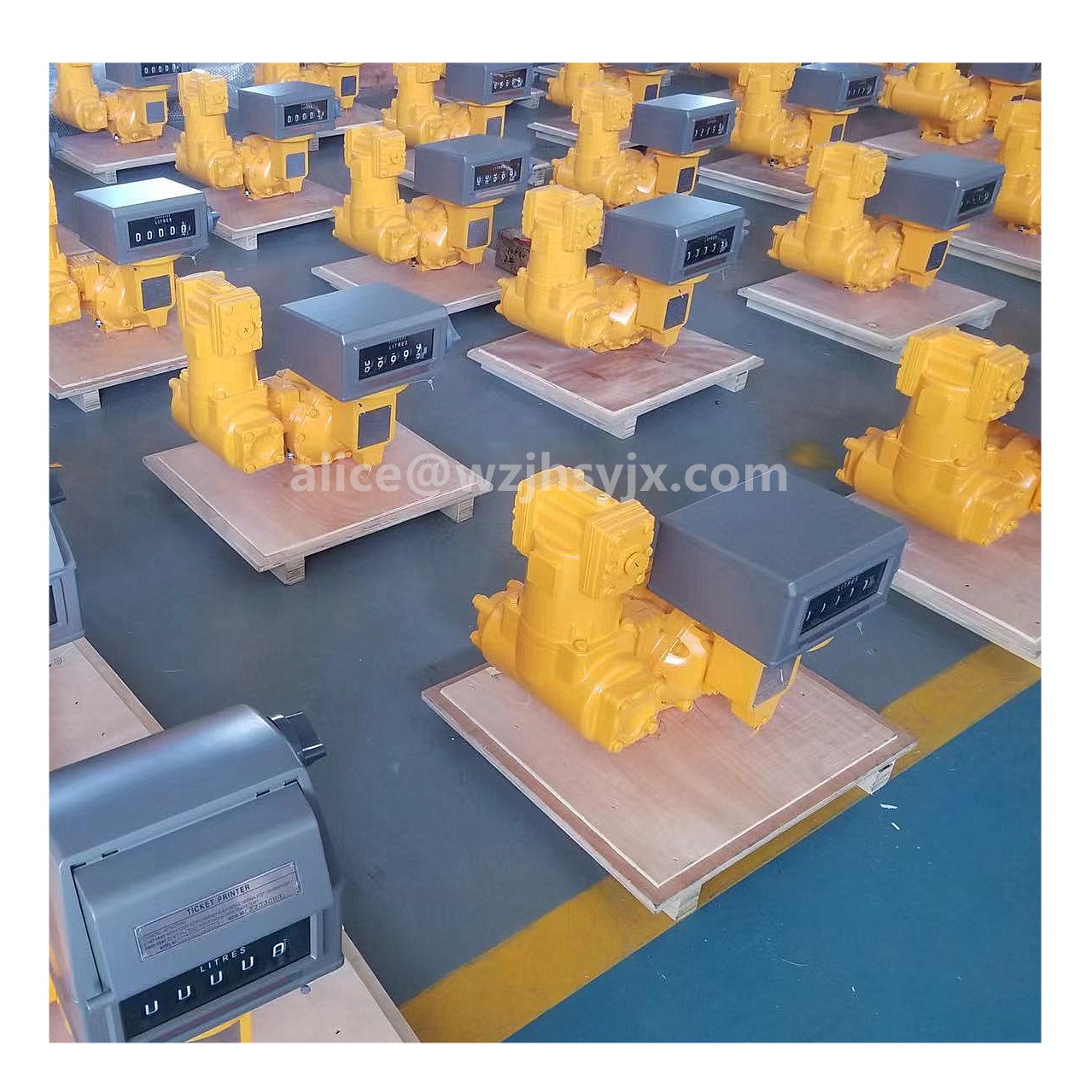

TCS Flow meter positive displacement LC Flow meter
| Model | TCS-40 | TCS-50 | TCS-80 | TCS-100 | TCS-150 |
| Inlet size | 1.5' | 2' | 3' | 4' | 6' |
| Flow rate | 25-250 | 55-550 | 115-1150 | 170-1700 | 300-3000 |
| Material | Aluminum/Cast Iron/Stainless Steel | ||||
| Medium | Diesel, Oil with high viscosity | ||||
| pressure | 10 Bar/150 Psi | ||||
| Accuracy | ±0.2% | ||||
| Unit Count | 5 digits | ||||
| Seal &gasket | Seal &gasket | ||||
| Strainer mesh viscosity | 80 for diesel , 40 for gasoline ,30ssu-1500000ssu | ||||
JH Machine Co. M-Series Bulk Transfer Mechanical Flow Meter
Key Features
Precision Adjustment
Stepless adjustment mechanism enables micro-calibration for enhanced accuracy during setup.
Maintains high accuracy and repeatability across a broad flow range, with optimal performance at constant flow rates.
Durability & Reliability
Operates unaffected by pressure fluctuations, temperature changes, or viscosity variations.
Low maintenance requirements and extended service life due to robust design.
Minimal pressure loss ensures efficient fluid transfer.
Compatibility & Safety
Designed for pumped flow systems only.
No metal-to-metal contact in the measuring chamber, reducing wear and tear.
Standard Specifications
Material Options:
Aluminum Body (‘1’): Suitable for fuel oil, diesel, kerosene, ethylene glycol, motor oils, and rotogravure ink.
Stainless Steel Body (‘8’): Exclusive to M-50 models, with stainless steel strainer and air eliminator.
Counter Systems:
JSQ-2: 4.1-digit resettable (batch) counter.
8-digit non-resettable cumulative counter.
Filter & Air Eliminator:
80 mesh (177 microns) strainer for diesel (‘X’).
Alternative mesh options: 40 mesh (420 microns), 60 mesh (250 microns), or 100 mesh (149 microns).
Air eliminator valve (‘X’) requires pressurized operation (not compatible with vacuum).
Optional Features
Material Upgrades:
Cast Iron (M-50-1): Subject to a minimum order quantity (MOQ) of 20 units.
Stainless Steel (M-50-8): Suitable for Adblue applications.
Advanced Counters:
JSQ-4 Ticket Printer: Integrates with JSQ-2 for automated printing.
JSQ-3 5-Digit Mechanical Preset Register: Compatible with JSQ-2 or JSQ-4 (discontinued).
Electronic Integration:
JSQ-2/E Electronic Register: Works with PS-100 Pulse Module.
PS-100 Pulse Module:
100 pulses per encoder revolution (5VDC, two-channel).
Available separately in 60 or 200 PPR configurations.
Example Part Number
M-50-CPX-1: Includes pulse module (PS-100) and standard features (C = Cast Iron, P = Pulse, X = 80 mesh strainer).
