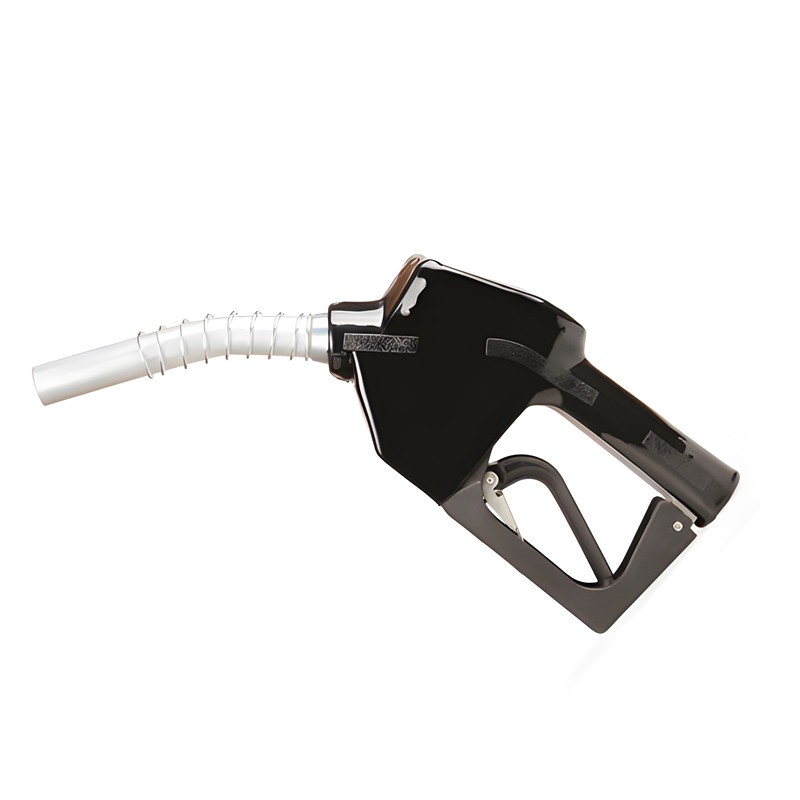

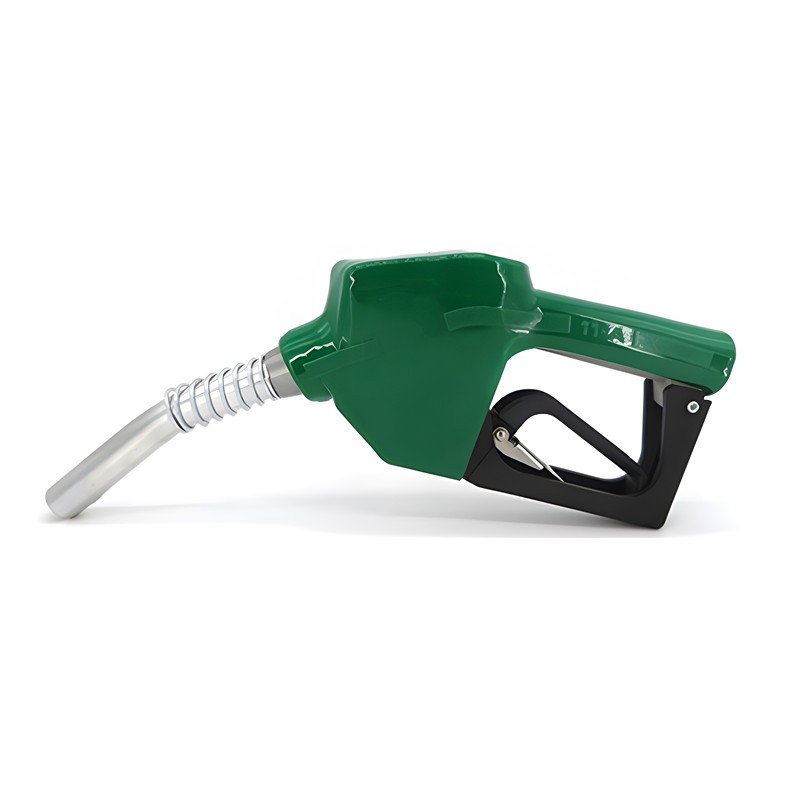

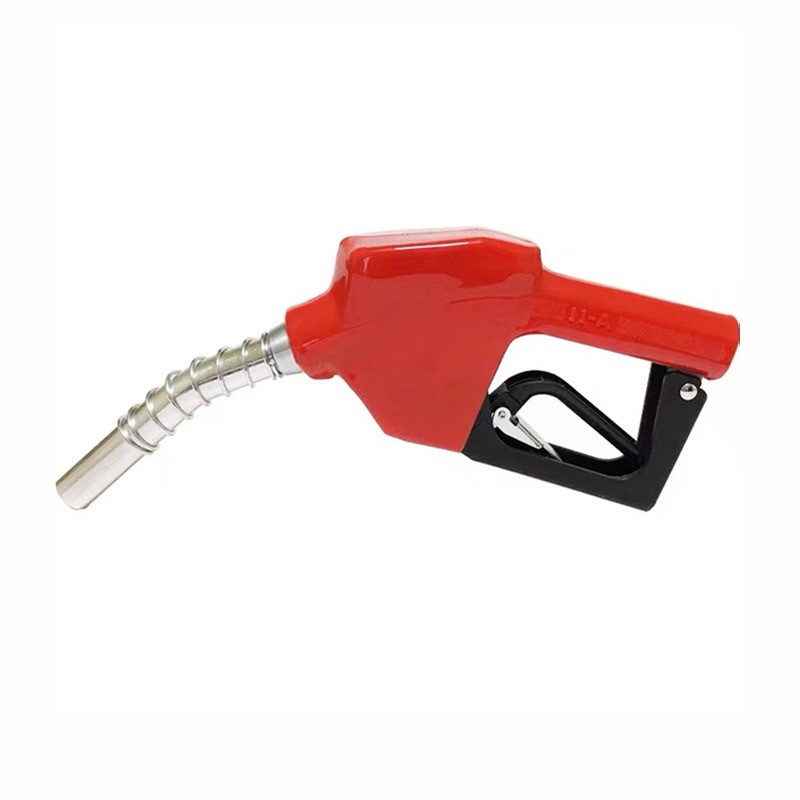

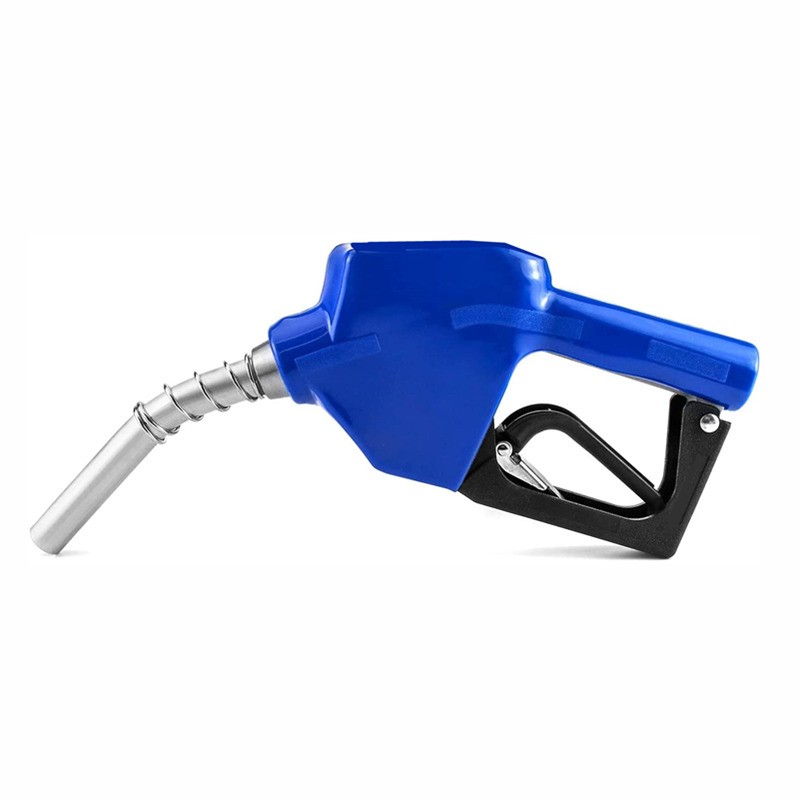

OPW 11A Auto Fuel nozzle dispenser accessories
Specification
JH-11A automatic nozzles "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.
Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from JIAHAO.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Material
Body Aluminum
Lever and lever guard Duratuff
Main stem Extra hard stainless steel
Seals Buna-N, Viton
Working Pressure 0.2 Mpa
Auto Shut-off sensibility 0.1 second
Thread NPT/BSPT
Spout Outlet Diameter 15/16", 13/16" (16mm or 20mm)
Inlet Size 3/4"
Order Specifications
Item No. Inlet Thread Spout O.D.
JIAHAO-11A 01 3/4" NPT 13/16"
JIAHAO-11A 02 3/4" NPT 15/16"
JIAHAO-11A 03 3/4" BSPT 13/16"
JIAHAO-11A 04 3/4" BSPT 15/16"
Color Options
Red, Green, Blue, Yellow, Orange, Black
