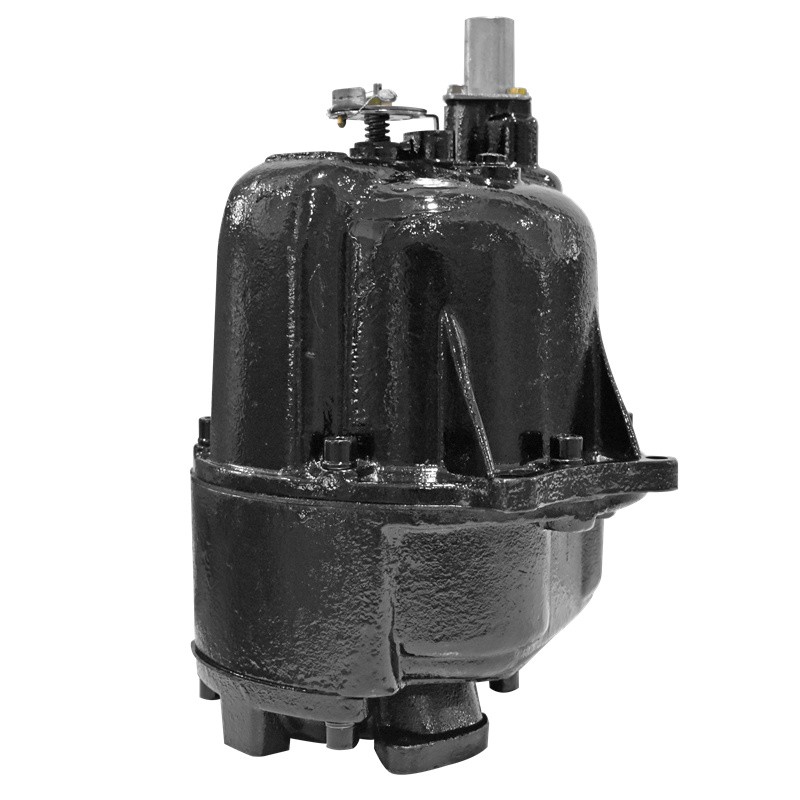

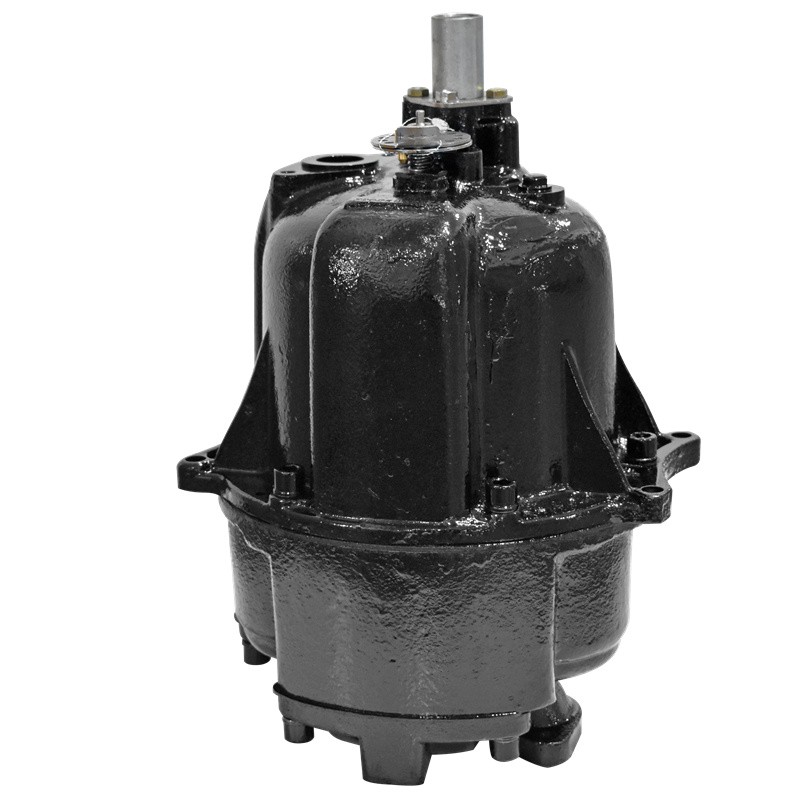

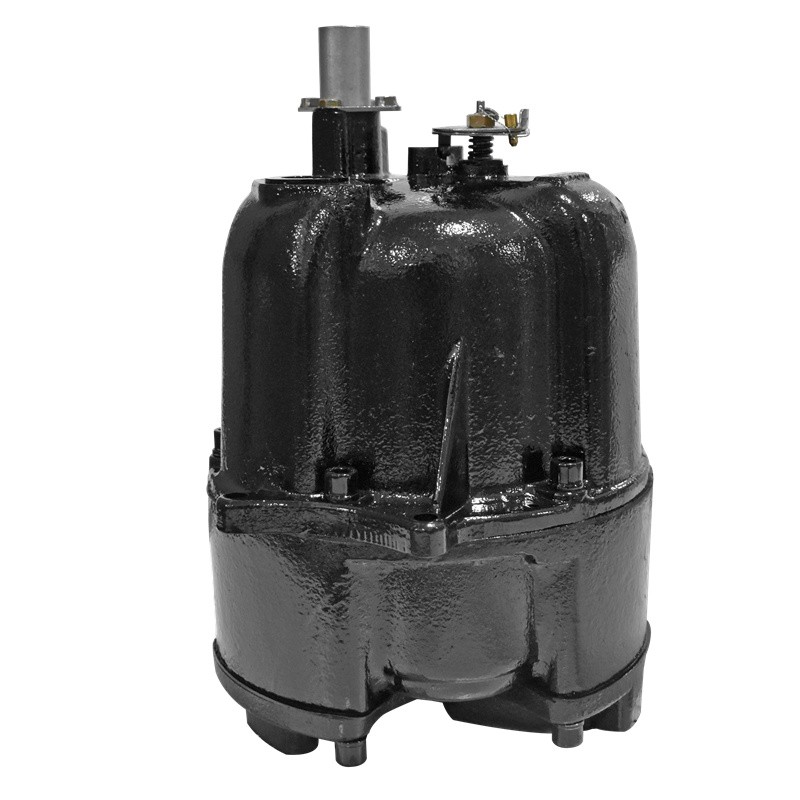

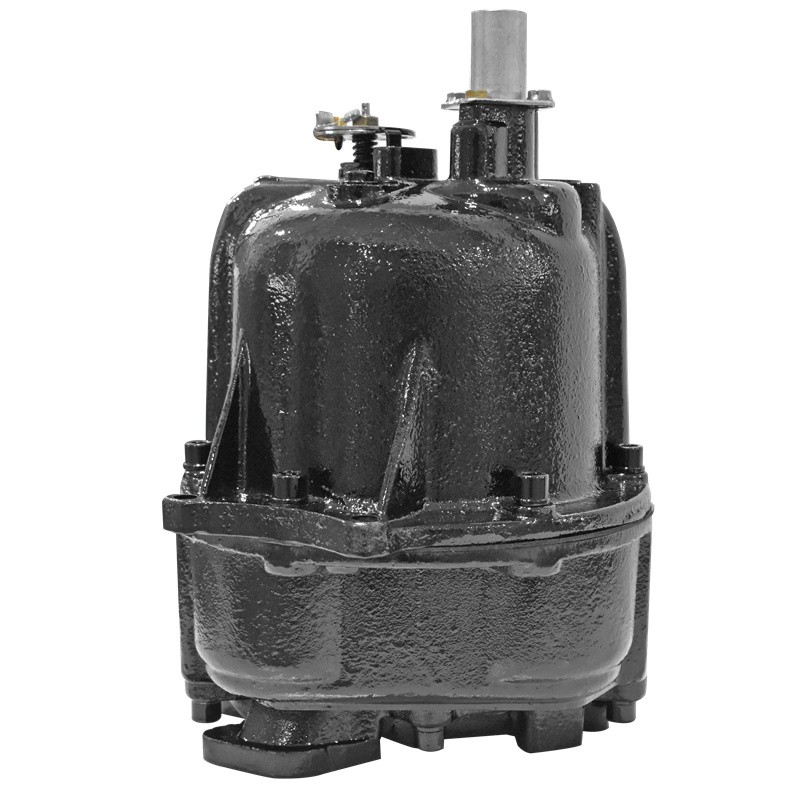

Tokheim FM3 Fuel Dispenser Flow meters
The Flow meter is engineered for precision, durability, and adaptability in fuel dispensing systems, compatible with gasoline, diesel, and biofuels. Key features include:
1. Core Advantages
Long Service Life: Designed for ≥10,000,000L operational lifespan.
High Accuracy: ±0.2% (5–100L/min), with repeat error ≤0.1%.
Robust Construction: Cast iron/nodular iron components for harsh environments.
Easy Maintenance: Modular design minimizes downtime and clogged filters.
2. Technical Specifications
Flow Range (L/min) 5–140
Discharge Rate (L/Rev) 0.21
Working Pressure (MPa) 0.12–0.35
Accuracy ±0.2%(5L/Min-100L/Min)
Repeat Error ≤0.1%
Working life ≥10000000L
3. Application & Compatibility
Universal Use: Flanged outlets and PMP machining adapt to electronic/mechanical systems.
Biofuel Resistance: Engineered to handle additives and biofuel blends.
Certifications: ISO-compliant, HS Code 9026100000.
4. Packaging & Dimensions
Standard Packaging: 1 unit per carton (30×29×44 cm for FM3).
Weight: 23–25 kg (MJ-55); 336 mm vertical clearance (FM3).
5. Market Positioning
Cost-effective options for mid-range dispensers, emphasizing ease of installation.
