Stainless Steel Automatic AdBlue DEF Nozzle
Enhanced Features and Applications of AdBlue Automatic Nozzles
In the realm of vehicle fluid delivery, spill - free operations are of utmost importance, especially when it comes to AdBlue (Diesel Exhaust Fluid - DEF). The use of an AdBlue automatic nozzle is a crucial requirement for achieving this spill - free delivery into vehicles. Let's take a more in - depth look at two popular AdBlue automatic nozzles: the PIUSI DEF/AdBlue auto nozzle and the JIAHAO Automatic Stainless Steel AdBlue Nozzle.
PIUSI DEF/AdBlue Auto Nozzle
Material and Design Innovation
Due to the high demand in the market, the PIUSI DEF/AdBlue auto nozzle has undergone a significant upgrade. It is now entirely crafted from stainless steel. This material choice offers multiple advantages. Stainless steel is highly resistant to corrosion, which is essential when dealing with AdBlue, as the fluid can be corrosive to some materials over time. This corrosion resistance ensures the longevity of the nozzle, reducing the need for frequent replacements and maintenance costs.
Flow Control Mechanism
One of the standout features of the PIUSI nozzle is its three - position trigger latch. This mechanism provides the flexibility to adjust the flow conditions according to the size of the AdBlue tanks. For smaller tanks, a lower flow rate can be selected to prevent over - filling and spills. Conversely, larger tanks can handle a higher flow rate, which reduces the refueling time. This adaptability makes the PIUSI nozzle suitable for a wide range of vehicles, from small cars to large commercial trucks.
Safety Shut - Off Device
The shut - off device of the PIUSI nozzle is specifically designed for AdBlue transfer applications. When the level of AdBlue in the tank reaches the end of the delivery spout, the shut - off device immediately isolates the flow of fluid. This automatic shut - off function not only prevents spills but also protects the tank from over - pressure, which could potentially damage the tank or other components of the vehicle's exhaust system.
Technical Specifications
The PIUSI nozzle comes with well - defined technical specifications. It has a maximum flow rate of 45 l/min (11.9 Gal/min), which allows for relatively fast refueling. The maximum working pressure is 5 bar (72.5 psi), ensuring that it can operate under normal and even slightly elevated pressure conditions. With a weight of approximately 1.7 kg (3.7 pounds), it is lightweight enough to be easily handled during the refueling process. For the automatic shut - off to function properly, a minimum flow rate of 12 l/min (3 gal/min) is required. The wetted parts of the nozzle are made of stainless steel and Viton, which further enhances its chemical resistance and durability.

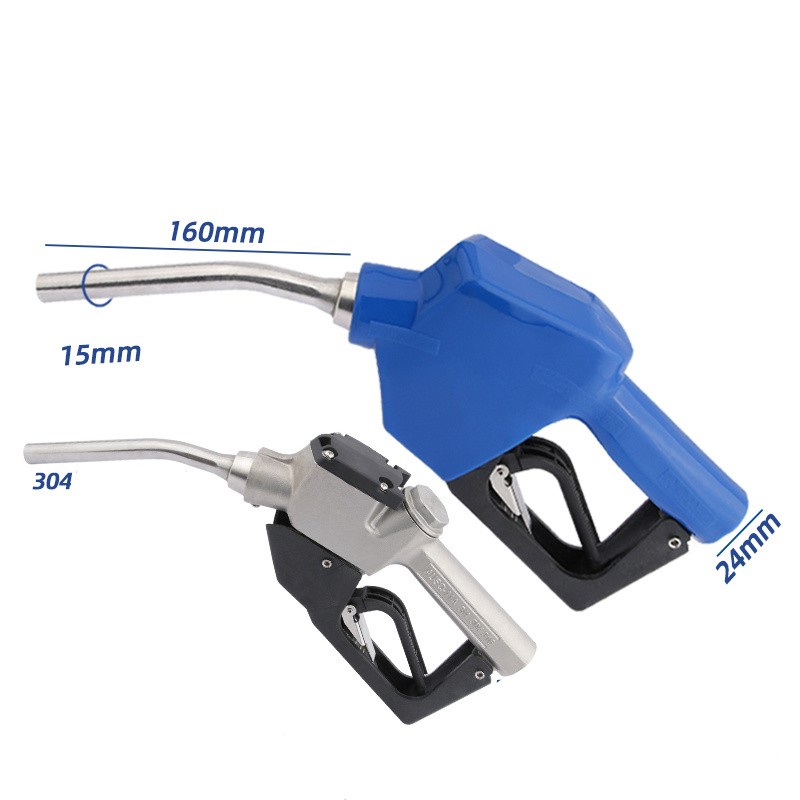

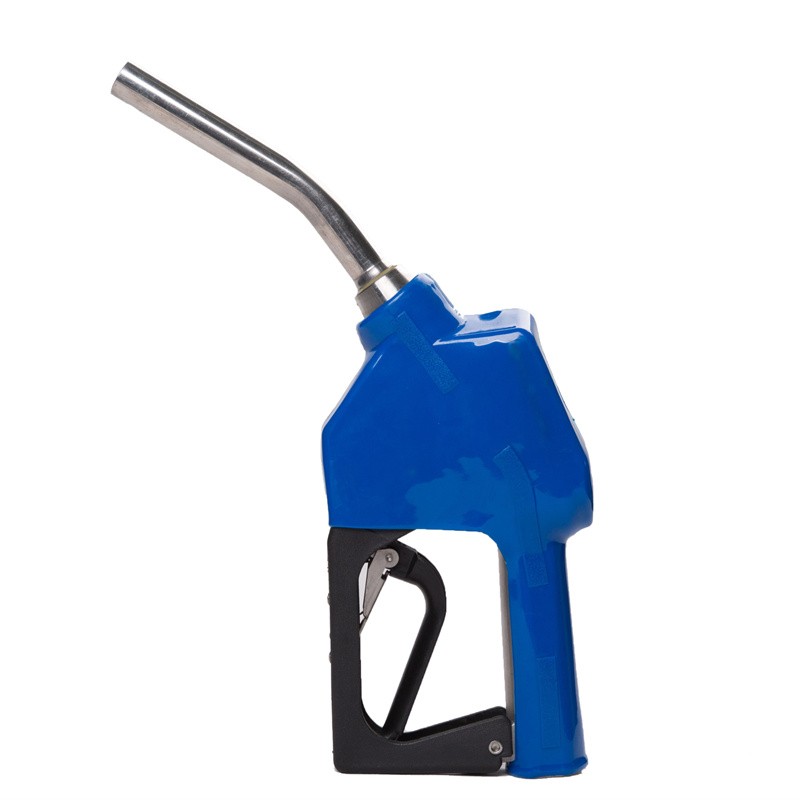

JIAHAO Automatic Stainless Steel AdBlue Nozzle
Function and Purpose
The JIAHAO Automatic Stainless Steel AdBlue Nozzle is primarily used for the dispensing of urea, which is known as DEF in the United States. As an automatic nozzle, its key function is to shut off the flow of AdBlue when the tank is full. This feature not only provides convenience but also significantly enhances safety during the refueling process. The integrated stay - open latch allows for hands - free operation, reducing the physical strain on the operator.
Construction and Comfort

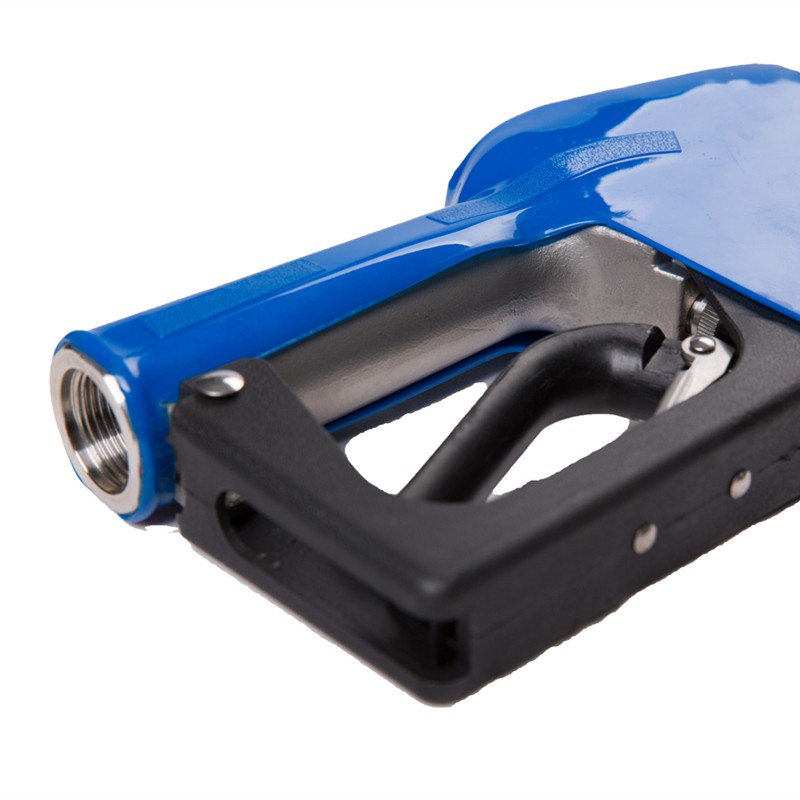

The construction of the JIAHAO nozzle also focuses on durability and user comfort. It is made of stainless steel, which, like the PIUSI nozzle, offers excellent corrosion resistance. In addition, it is equipped with a plastic hand guard. This hand guard not only provides a comfortable grip but also protects the operator's hand from potential cold or heat transfer from the stainless - steel body, especially in extreme weather conditions.
Hose Connection
The JIAHAO nozzle comes with a 3⁄4” swivel hose tail. This feature simplifies the hose connection process. The swivel design allows for greater flexibility in positioning the nozzle during refueling, making it easier to reach the AdBlue tank inlet, regardless of the vehicle's configuration.
Application in Pump Kits
This AdBlue dispensing nozzle is often used in the Suzzara Blue AdBlue pump kit. In a pump kit, the JIAHAO nozzle works in tandem with other components such as the pump and hoses. The combination of these components provides a complete and efficient AdBlue refueling solution for various vehicles.
In conclusion, both the PIUSI DEF/AdBlue auto nozzle and the JIAHAO Automatic Stainless Steel AdBlue Nozzle play vital roles in ensuring safe, efficient, and spill - free AdBlue delivery. Their unique features and high - quality construction make them reliable choices for vehicle owners and operators in the ever - growing market of AdBlue refueling.
