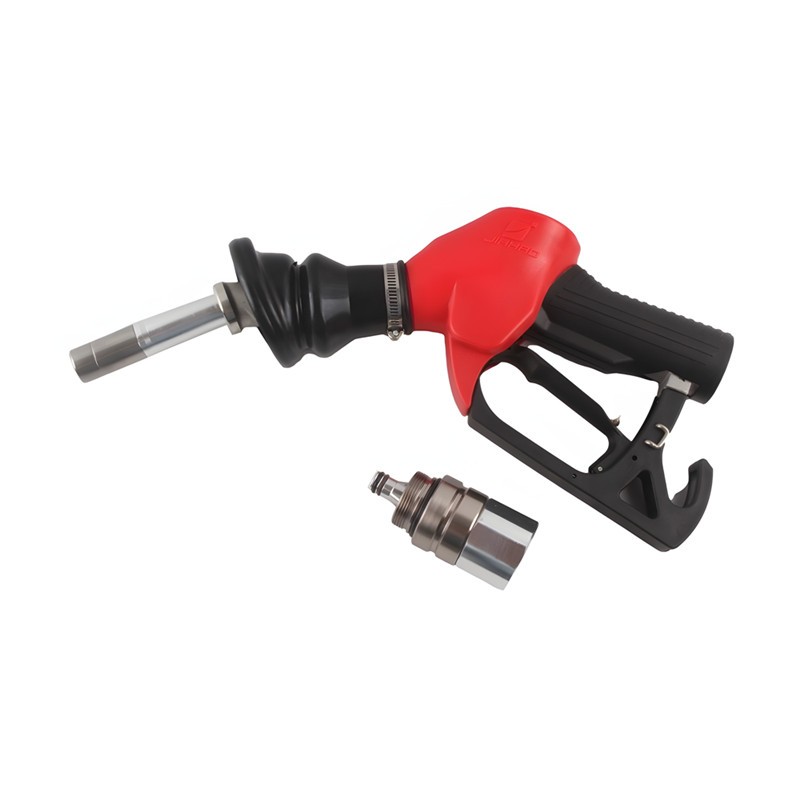

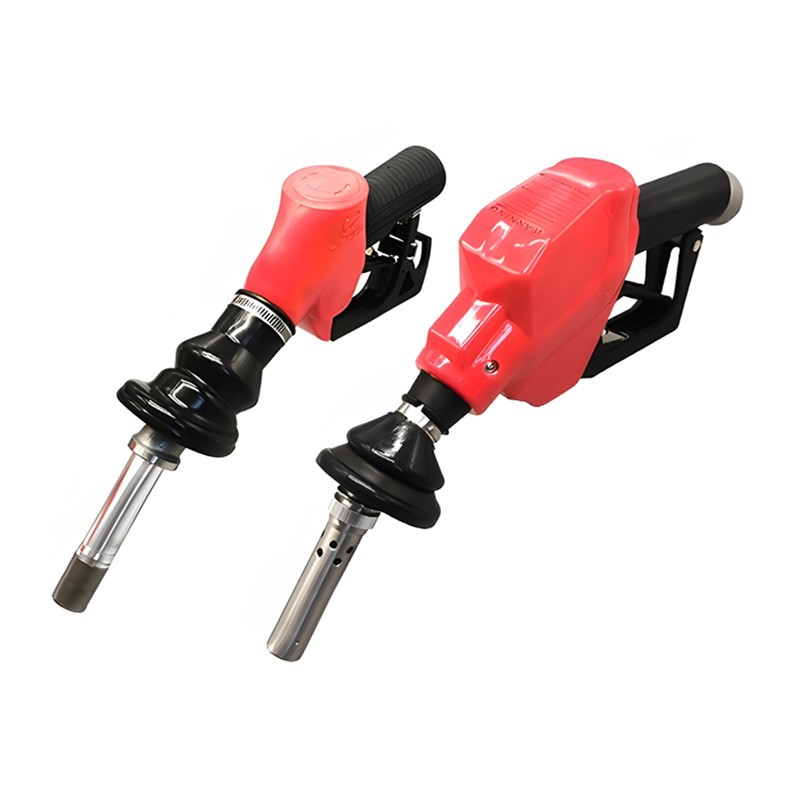

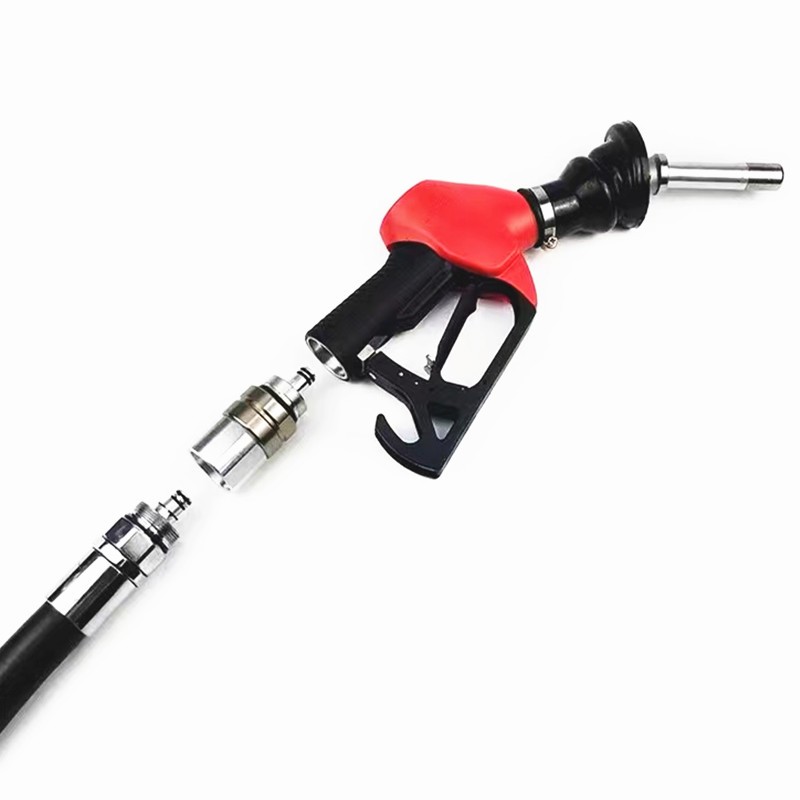

China ZVA Vapor Recovery Fuel nozzle
نازل بازیافت بخارات ZVA
Buhar Geri Kazanım Sistemi
Automatic nozzle with vapour recovery, fl owrate up to 45 l / min. Working pressure 0,5 up to 3,5 bar. Tempera tur e range - 20° C up to + 55° C. Suitable for all standard gasoline fuels ( also with ethanol content ). Not suitable for pure alcohol, water and solvents. Venturi controlled automatic shut-off with safety cut-out valve. 2-speed lever latch with removable latch pin EB 280. automatic cut-off – yes; body material – aluminum, stainless steel;
JIAHAO GR 8M — Aile GR automatic fuel dispensing tap with Vapor recovery system. This model of the dispensing tap is a complete analogue of Elaflex filling guns. All components and spare parts are interchangeable.
The gun body is made of spark-proof aluminum alloy, and the internal elements are made of brass and stainless steel. The design allows for complete disassembly, repair or re-equipment of the gun, which is undoubtedly a great advantage. The outer diameter of the spout is 21 mm. and that allows refueling most light vehicles. The spout is fixed in the neck with the help of teeth. The spout of the gun in the middle part has a special channel for capturing and removing gasoline vapors during refueling.
The trigger bracket (guard) is made of impact-resistant MBS plastic. Guards of various modifications are made for this gun. Some brackets also have magnets for interaction with fuel dispensers.
The push bracket is fixed in two open positions using a lock. The first open position corresponds to ~60% and the second to ~90% of the throughput. Maximum throughput is 45 l/min.
Technical specifications:
Bracket type: 8M (EG 281.8DMrm)
Flow rate: up to 45 l/min;
Working pressure: from 0.5 to 3.5 bar;
Bracket fixation - in 2 positions;
Automatic cut-off - yes;
Body material - aluminum, stainless steel;
Temperature range: from - 20 to + 55 C;
Suitable for gasoline, diesel fuel, boiler fuel, biofuel, fuel containing ethanol;
Not suitable for pure alcohol and water, viscous oils;
