vapor recovery sight glass

شرح

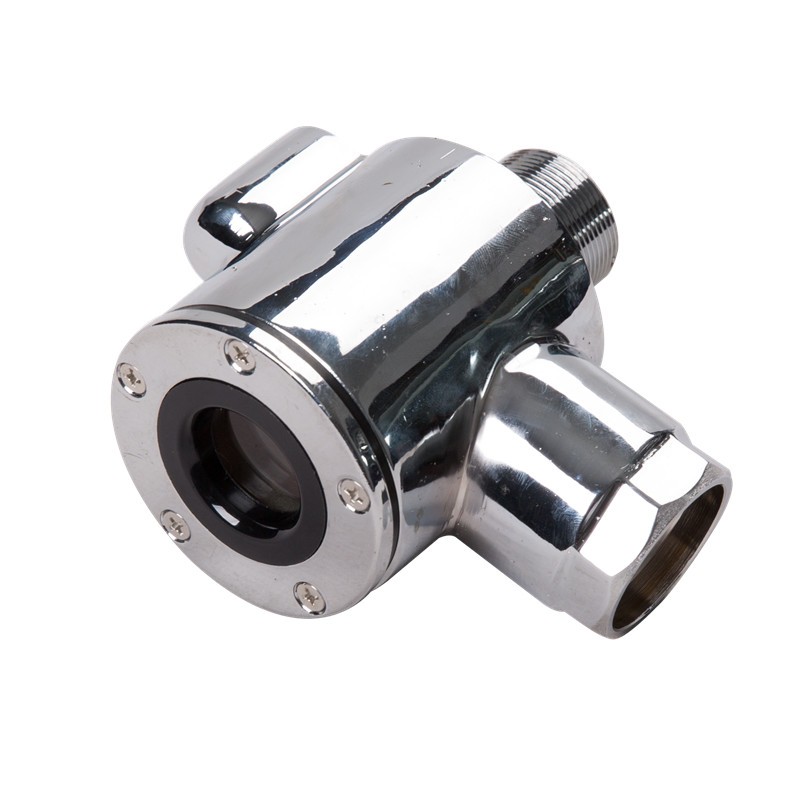

vapor recovery sight glass

Vapor Recovery Sight Glass allows the customers to see whether the fuel (clean or contaminated) passing from the hose. The oil and gas by recovery is  through the pipe which is in the middle of the oil indicater.

Type Delivery,inspection and recovery of oil
Inlet M33*1.5
Oil outlet 1-1/4
Gas inlet φ12.8
Thickness of sight windows 5mm
Over all Dimensions 12.5×6.8×10.4 cm

Materials

Main Body aluminum alloy
Sight window quartz glass
Seals NBR


Package
Package 10pcs/carton
N.W./G.W. 0.55kg each , 5.5kg/case of 10
Measure 34.2*27.5*9.2cm3
