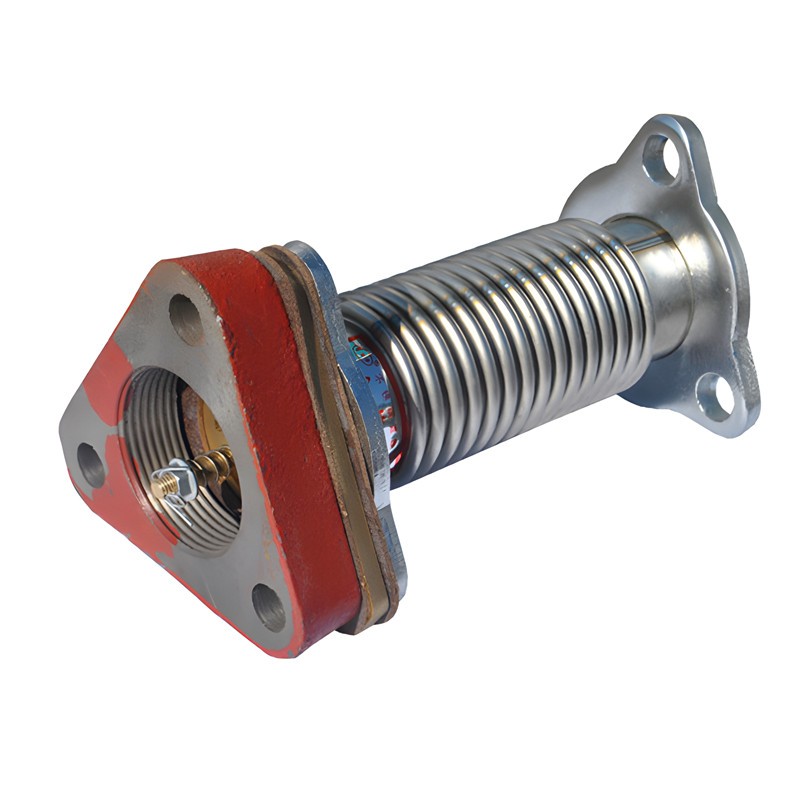

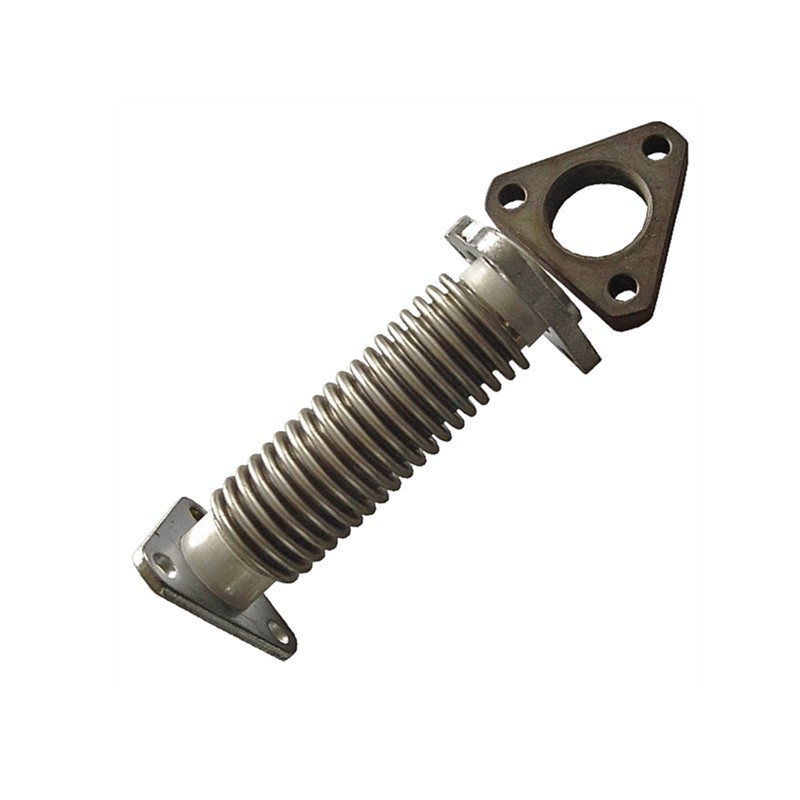

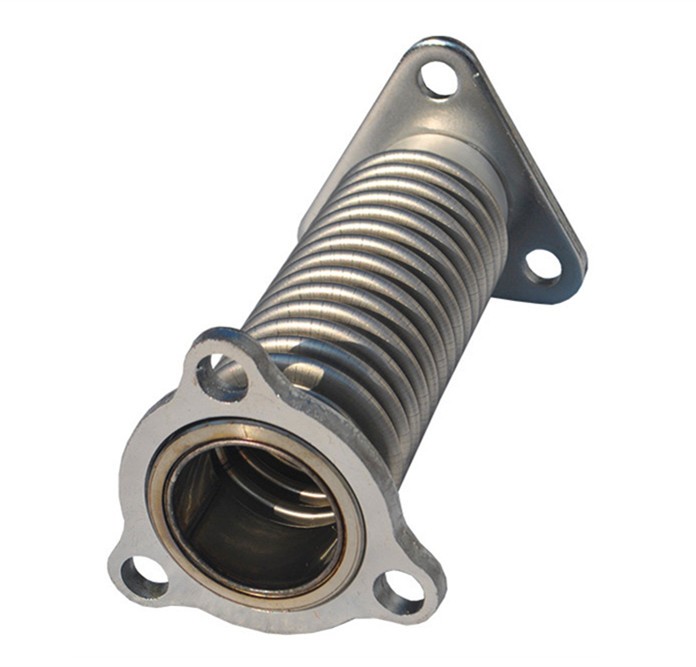

Fuel Dispenser Accessories stainless steel flexible hose Triangular flange
1. 5-inch DN40 triangle flange stainless steel hose compensator, installed at the oil inlet at the bottom of the tanker.
Connected to the oil inlet pipe, inner diameter 40mm, outer diameter 51.5mm, thickness 0.25mm, triangular flange hole distance 70mm,
three equal parts, hole diameter 12mm, a fixed flange at one end, and a movable flange at the other end, length 70mm -1 000mm,
More than 500MM can be customized, non-standard can be customized (such as with square flange, hole distance 9MM adjacent side hole distance 5OMM, male threaded joint G1.5 inch, etc.)

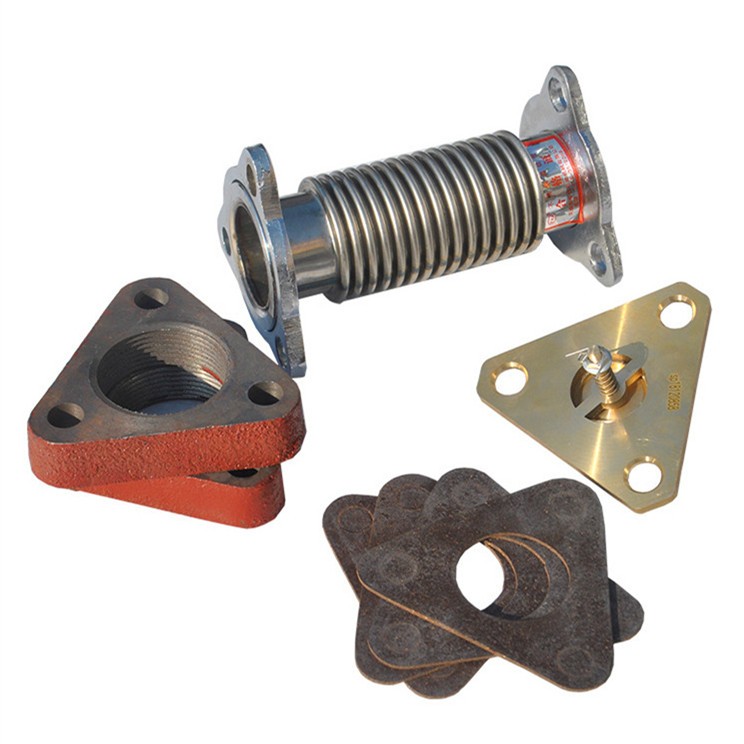

Another triangular flange, triangular gasket and triangular copper check valve (one-way valve) are optional
