ZVA Slimline 2 ER042.1u spout spare parts nozzle

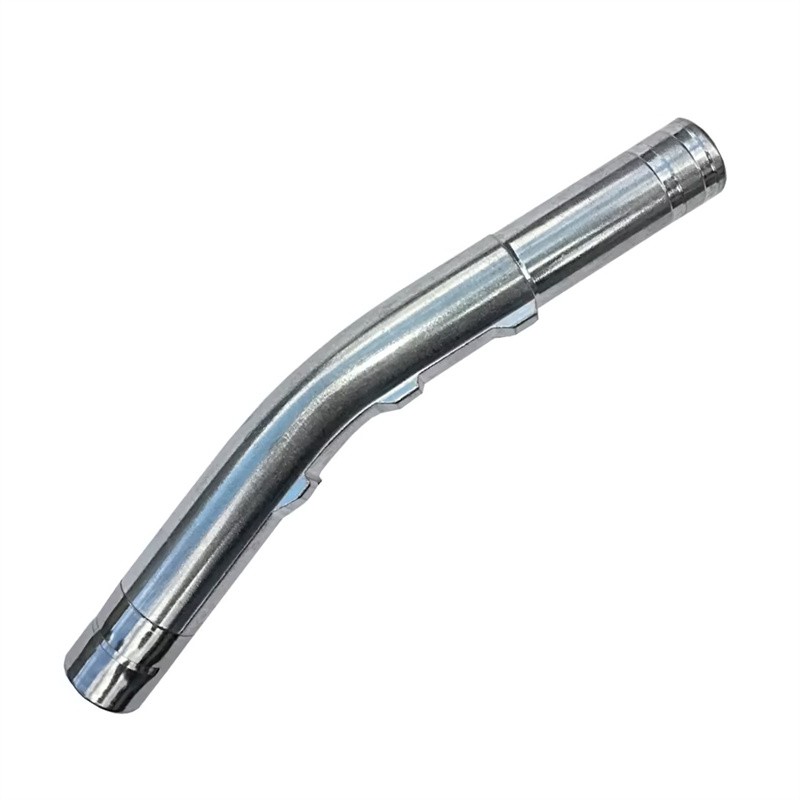

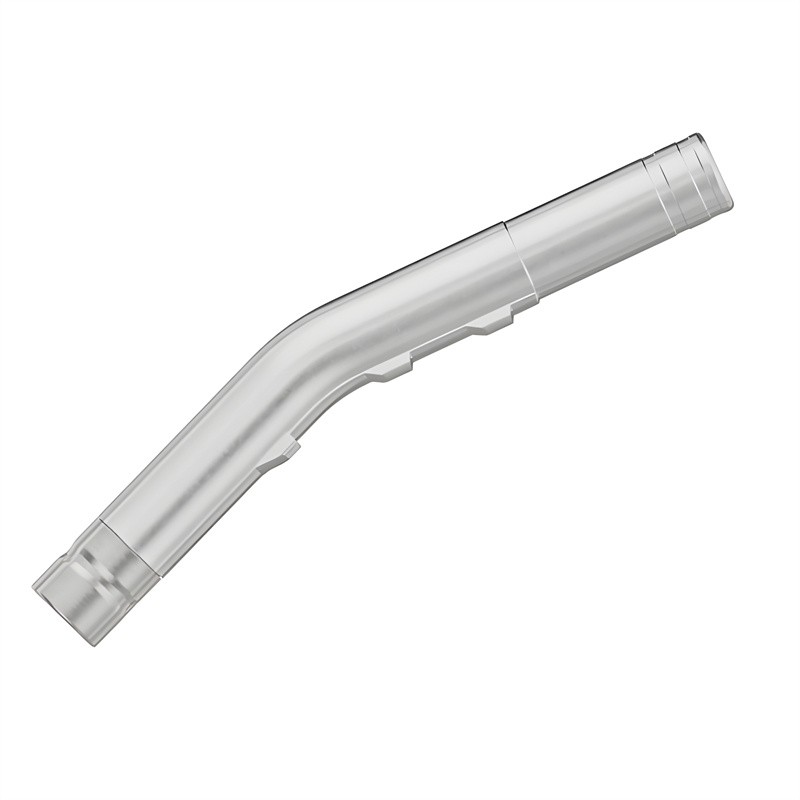

The Spout ER 042.1 U (DN 25 mm) is designed for ZVA 2 fuel - dispensing taps and their analogues. Constructed from aluminum, it features a monolithic design without a tear - off groove. The nominal bore diameter measures 25 mm, while the outer diameter of the spout is also 25 mm. This spout is not suitable for refueling light gasoline transport.
At the end of the spout, a protective rim made of stainless steel is attached. Its main function is to prevent any damage to the spout's end. At the bottom of the spout, there is a channel that ensures the proper functioning of the automatic fuel supply shut - off mechanism. The teeth at the bottom of the spout allow the gun to be installed in the tank.

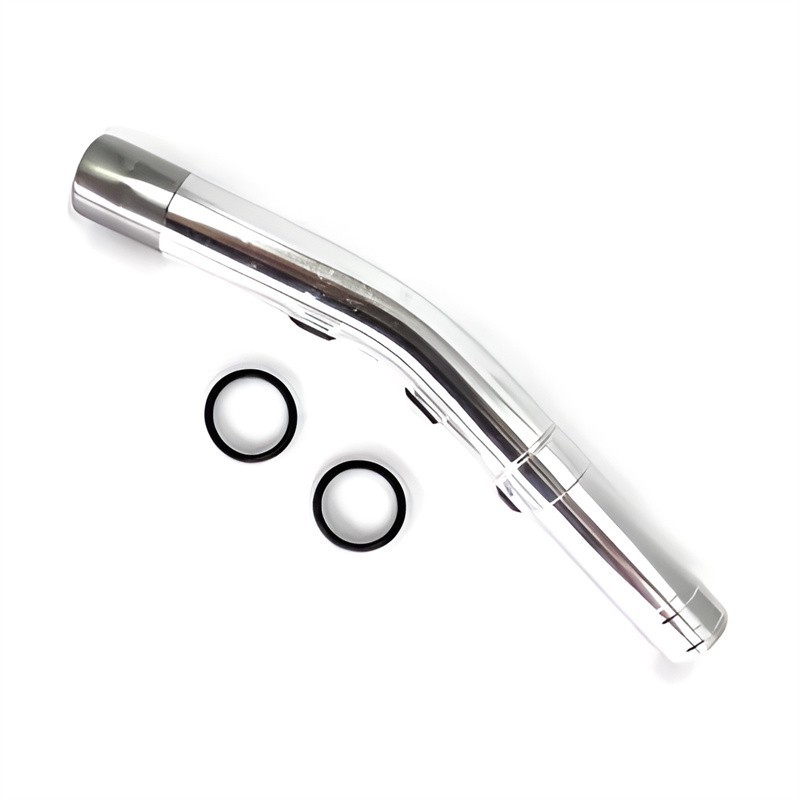

Fixation of the spout on the gun is achieved using a cotter pin, which is not included in the delivery set. To seal the connection between the spout and the tap body, two EO105 rubber rings are used, and these are included in the kit. When installing the spout, it is crucial to avoid damaging the seals.
The specifications of ER 042.1 U (DN 25 mm) are as follows: the nominal bore diameter is 19 mm, the tip outer diameter is 25 mm, and the landing diameter is 24 mm. The product is made of aluminum, and the fixing method is via a cotter pin. It is applicable to ZVA2 and its analogues.
ZVA fuel - dispensing taps have gained wide popularity because of their modular design. Thanks to the innovative solutions developed by the company's specialists, the products of this brand offer excellent maintainability and flexibility for modernization. For instance, in the case of minor breakdowns of fuel - dispensing taps, on - site repairs can be carried out without dismantling the tap. Almost any unit in ZVA fuel - dispensing taps can be replaced, which enables a wide range of equipment modernization during operation. A diverse selection of accessories and spare parts allows these guns to be adapted to work with nearly all types of fuel dispensers.
The dimensions of the spout are 24 × 6 × 4 cm, with a volume of 0.001 m³, and it weighs 0.15 kg.
