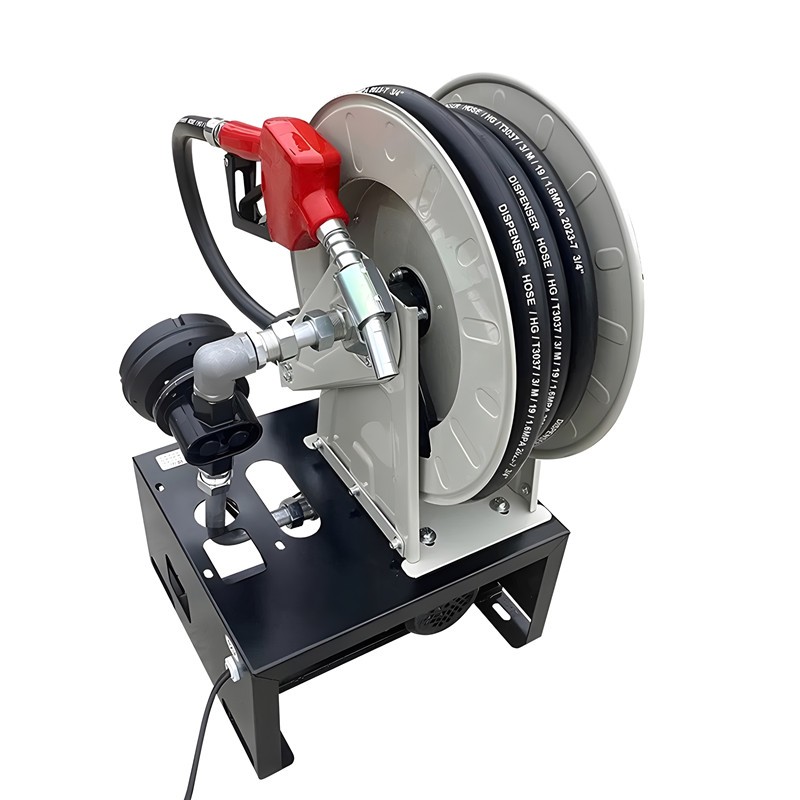

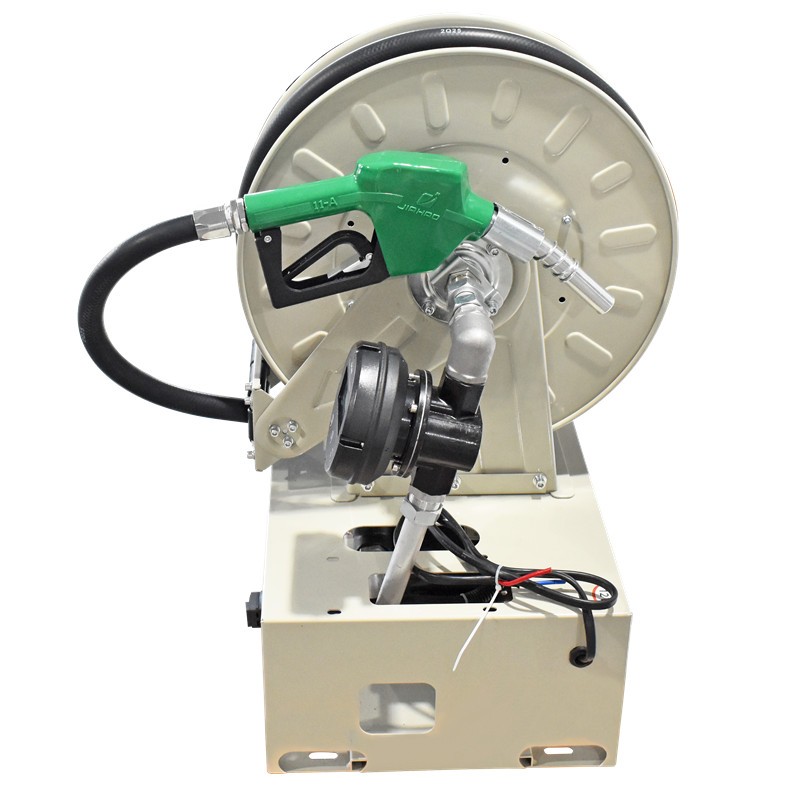

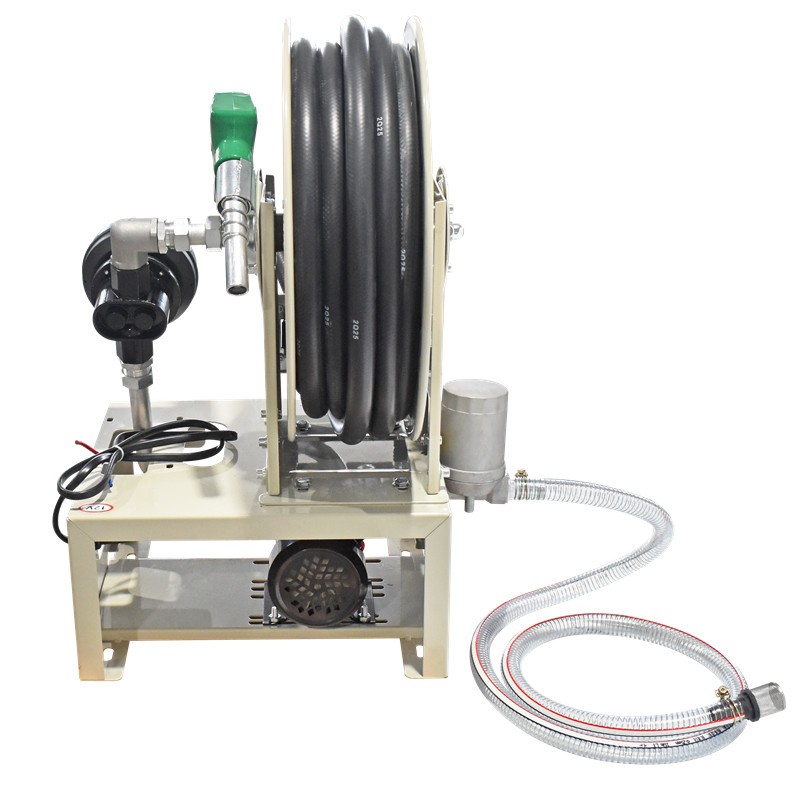

Automatic Hose Reel for Fuel diesel with nozzle
Fuel Hose Reel with High Flow Rate
Features
The arm of the fuel hose reel is equipped with 4 - drum ball bearings. These bearings greatly facilitate the unwinding of the hose, effectively preventing friction that could lead to gradual deterioration over time.
The hose can be locked at the desired length. Moreover, a ratchet mechanism is in place to prevent the unlocking of the hose when it is fully extended, ensuring safe and stable operation.
In terms of corrosion resistance, the reel undergoes a hot - dip galvanizing process. Its steel structure is molded and then coated with UV - resistant electrostatic polyester powder, protecting it from the elements and extending its service life.
Installation is easy and flexible. It comes with a rotating support plate and an adjustable arm position, allowing for various installation configurations to meet different needs.
The hose is spring - driven and retractable. It is powered by a professional coil spring and has a strong hose stop, which helps reduce pressure loss during operation.
All bolts and nuts used in the reel are made of stainless steel, enhancing its compatibility and durability.
Specifications
Suction and Head: It has a suction lift of 5m and a head of 20m.
Flow Rate: The flow rate can be either 60L/min or 120L/min.
Power: The power requirement ranges from 550 - 1100W.
Hose: The hose is 10m long with a BSP 3/4" - 1" inlet/outlet.
Pump: Optional power sources for the pump include 12V, 24V, and 220V.
Advantages
Efficient Oil Extraction: It offers efficient oil extraction capabilities. It can be mounted on a vehicle, making it portable and suitable for on - the - go refueling needs.
Motor Quality: It is equipped with a pure copper motor and an exhaust fan. This combination ensures a long service life for the equipment.

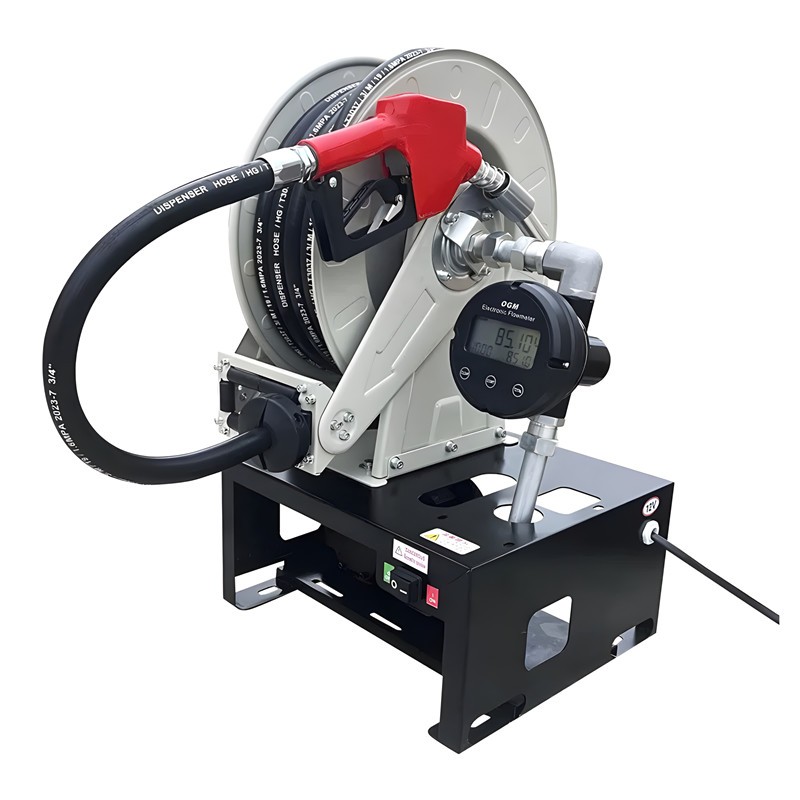

Accurate Metering: A quantitative OGM Flow meter is included, providing high - accuracy measurements.
Usage Scenarios
This fuel hose reel is suitable for a variety of usage scenarios, such as refueling at construction sites, refueling engineering vehicles, small gas stations, and agricultural machinery.
