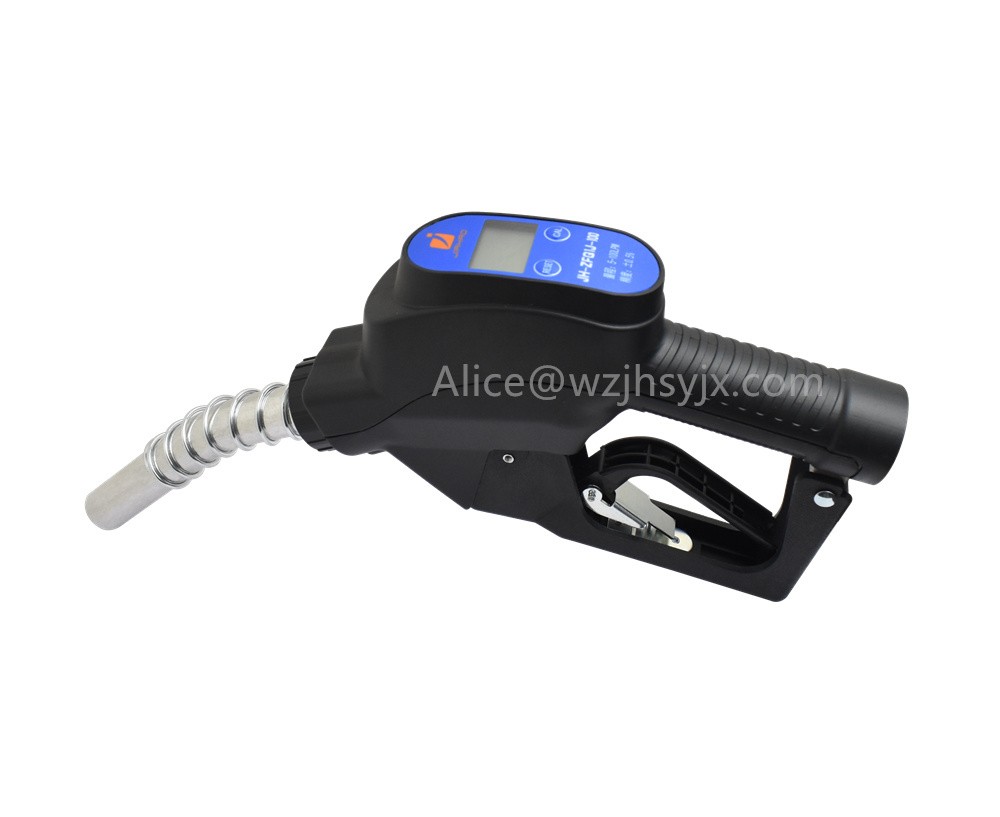

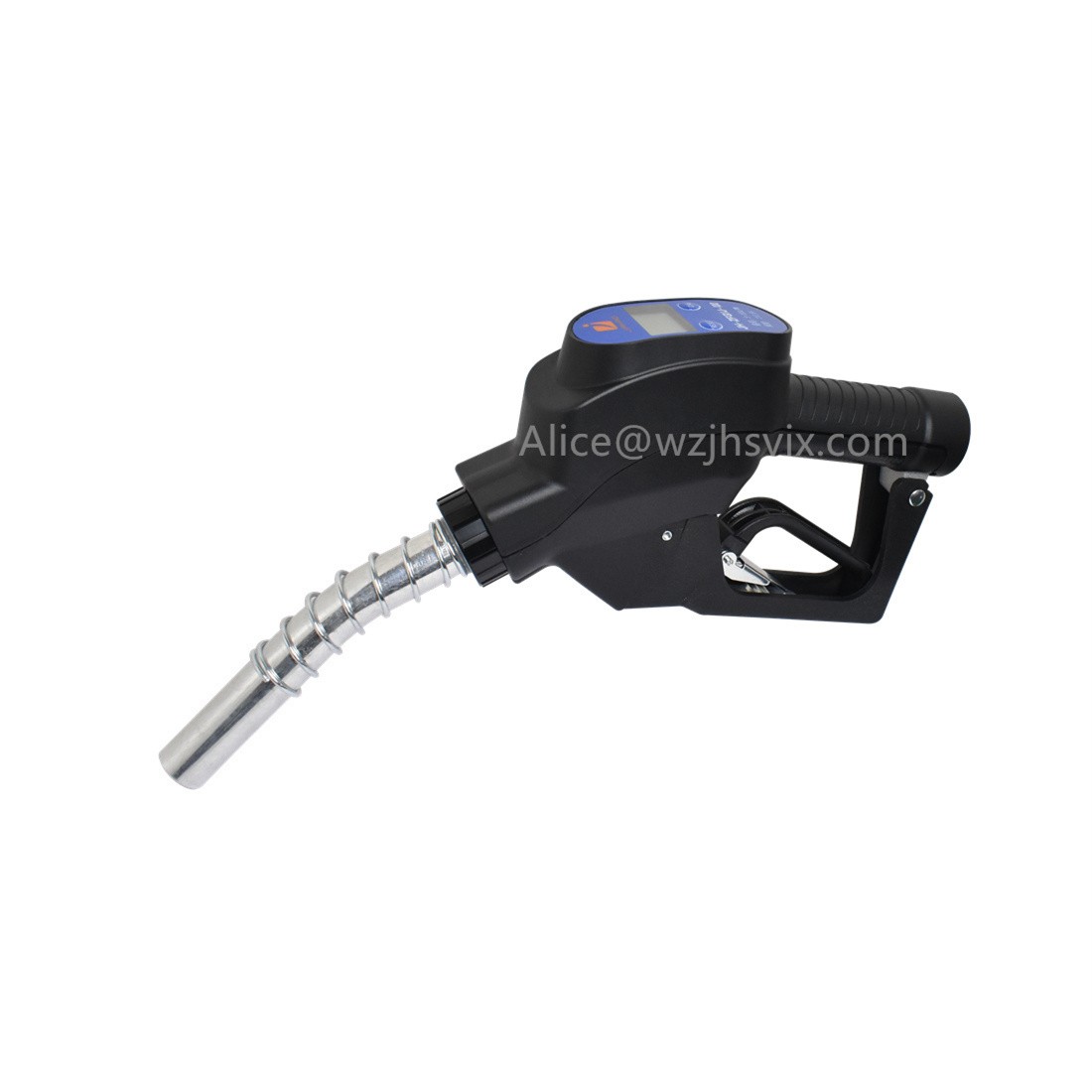

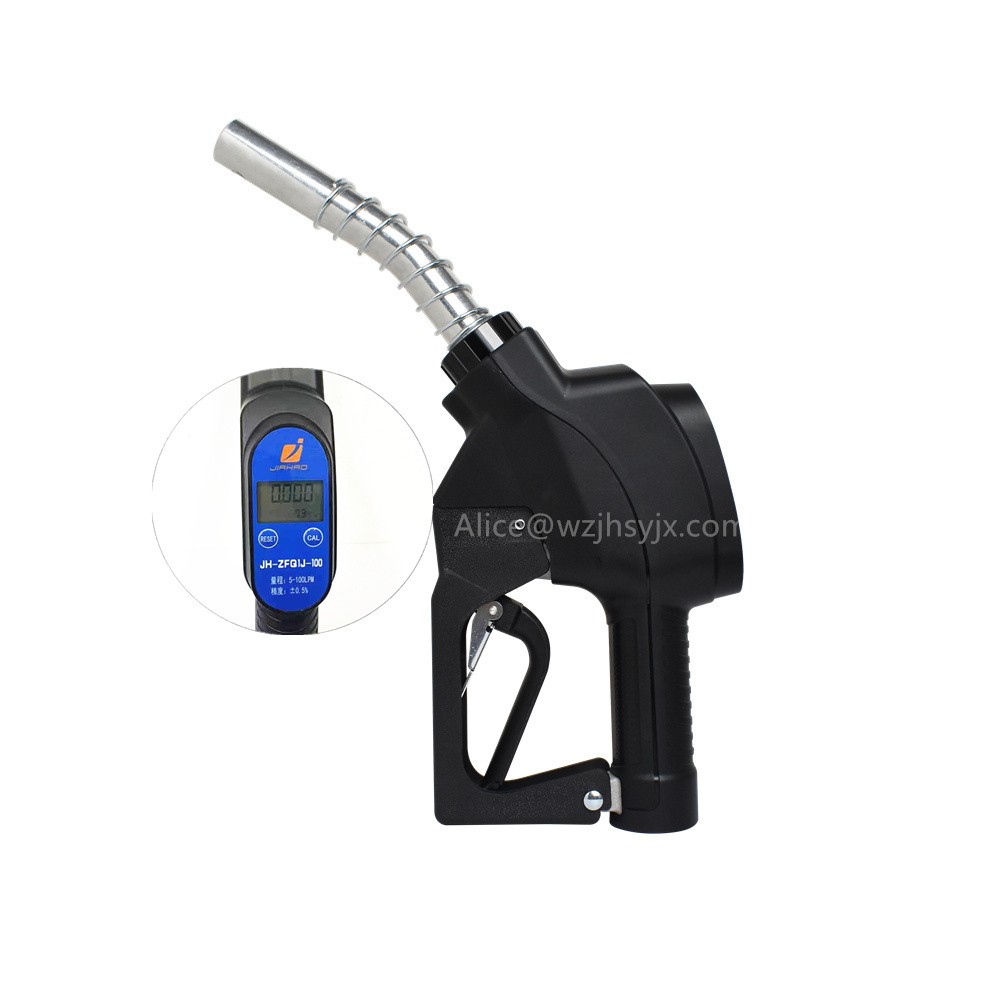

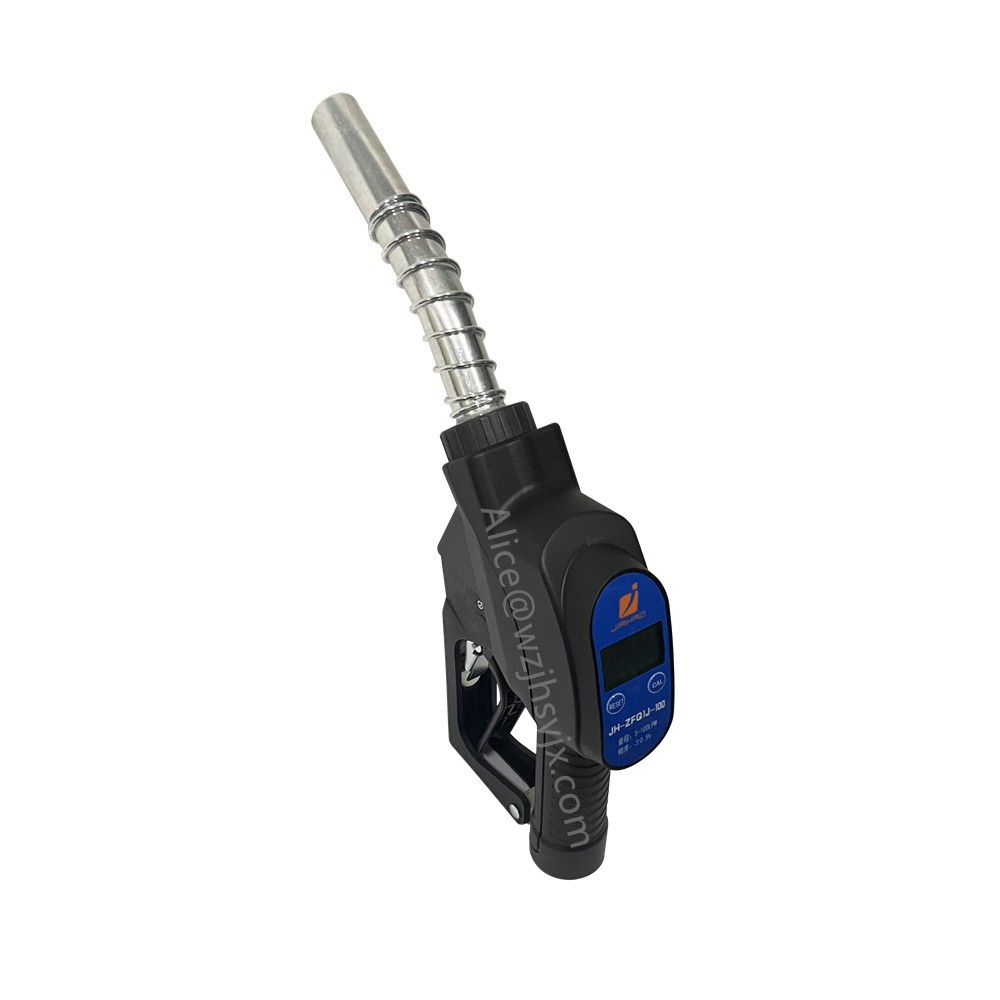

Automatic diesel nozzle with digital meter 120L
JH-ZFQ1J-100 self-sealing metering nozzle has high metering accuracy and is suitablefor filling operations of kerosene, gasoline, diesel and other light oils. The self-sealing device fused into the nozzle body design can ensure that the nozzle is automatically closed when the tank is filled, preventing the medium from overflowing.
The positioning piece is installed in the guard, the flow rate can be in 2-3 steps. The connection thread of the oil inlet can be processed into various standards according to the needs, which is convenient
for customers to choose and use. Aluminum alloy nozzle body has good electrical conductivity to eliminate static electricity in a timely and safe manner.
Automatically shuts off on back pressure
• Digital meter with 5-digit current dispensed total - resettable
• Digital meter with 7-digit cumulative total - non resettable
• Flow rates of up to 120 L/min
• Units of measure: litres, gallons, pints, and quarts
• Operating pressure of 50psi (3.5 bar)
• Operating temperature range: -10 C to 60 C
• 1" BSP swivel inlet & 19mm (3/4") 24mm and 29mm outlet spout
• Digital meter powered by 2 x AAA batteries & accurate to 0.5%
