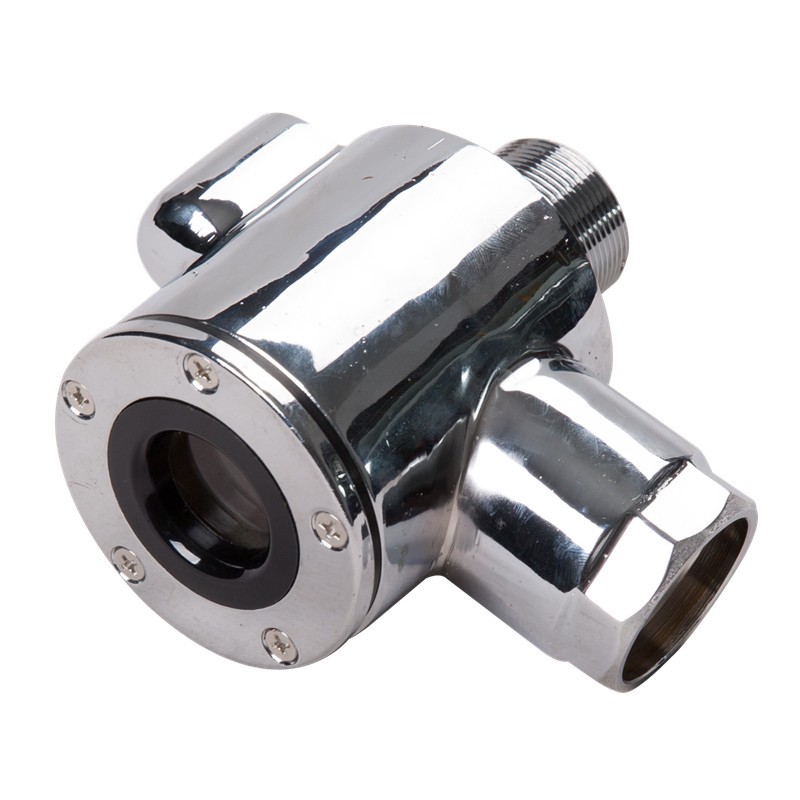

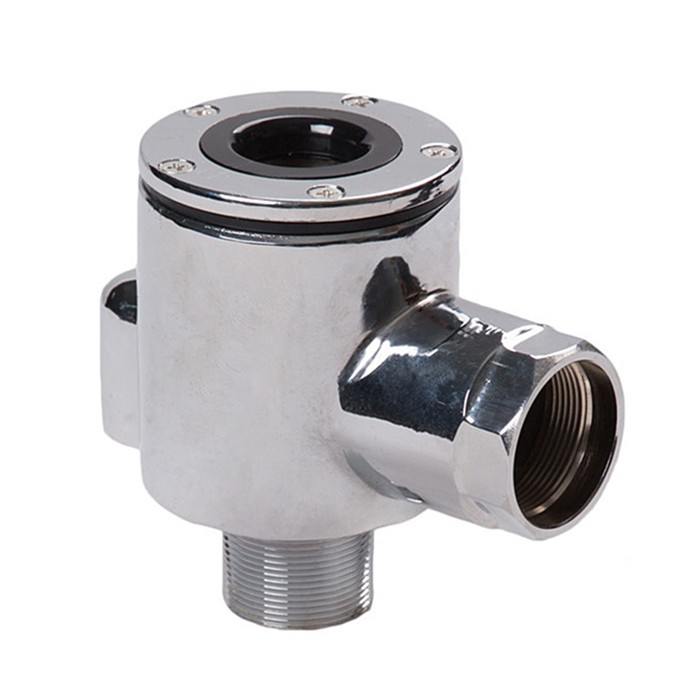

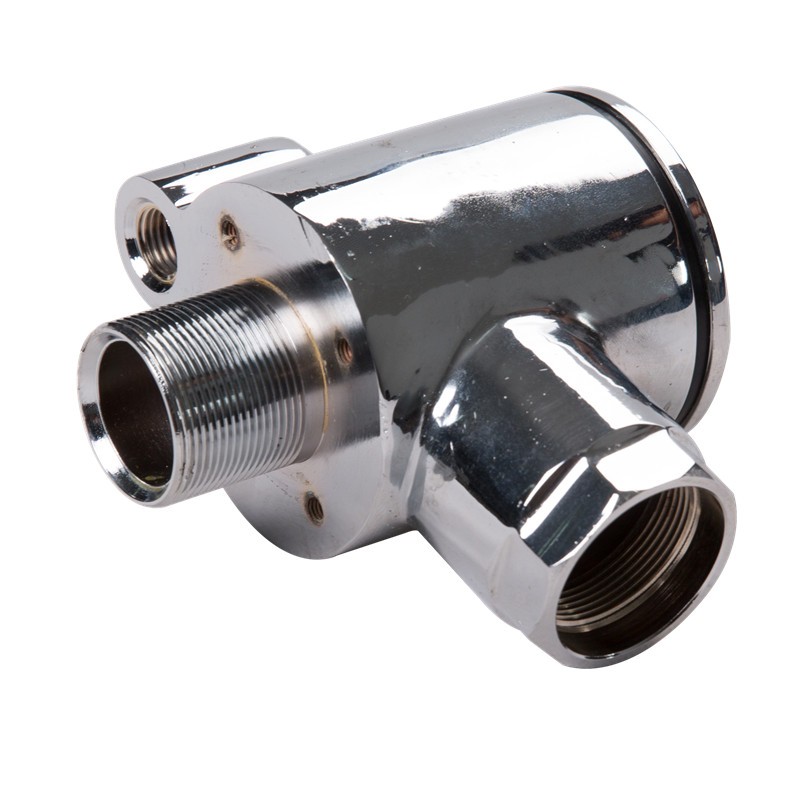

Vapor Recovery Sight Glass for Oil Station JIAHAO
Oil and gas recovery sight oil device (oil and gas separation integrated type, easy to directly replace the old oil and gas oil device,
built-in hidden oil and gas channel, make oil and gas recovery and modification more convenient and fast) universal to various brands of fuel dispensers.
There are standard general and common M34 threads, as well as HEALY special threads.
Brief outline size: 108mm*126mm, oil pipe installation thread is commonly used M34
If you need the narrow point of HEALY special thread, please take the initiative to explain to the manufacturer,
the outer diameter of the external thread end is M33, the flow diameter is 22.3mm and 25.3mm, and the diameter of the mounting screw is 35mm parallel,
M4 thread, and gas path thread G1/4 (The diameter of the inner hole is about 12mm).
The main material is cast aluminum alloy, oil-resistant and pressure-resistant sealing material. 0.6KG/pcs
