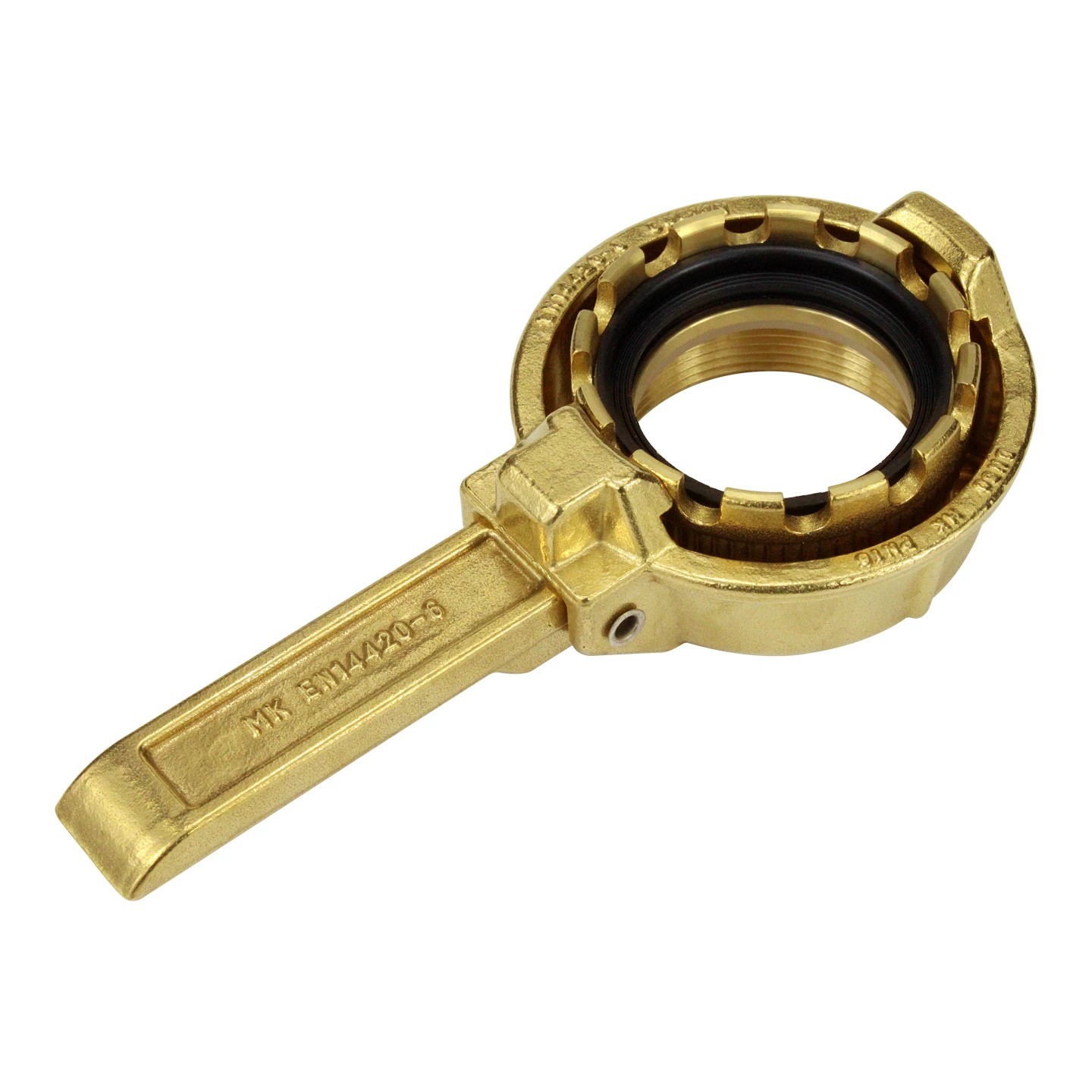

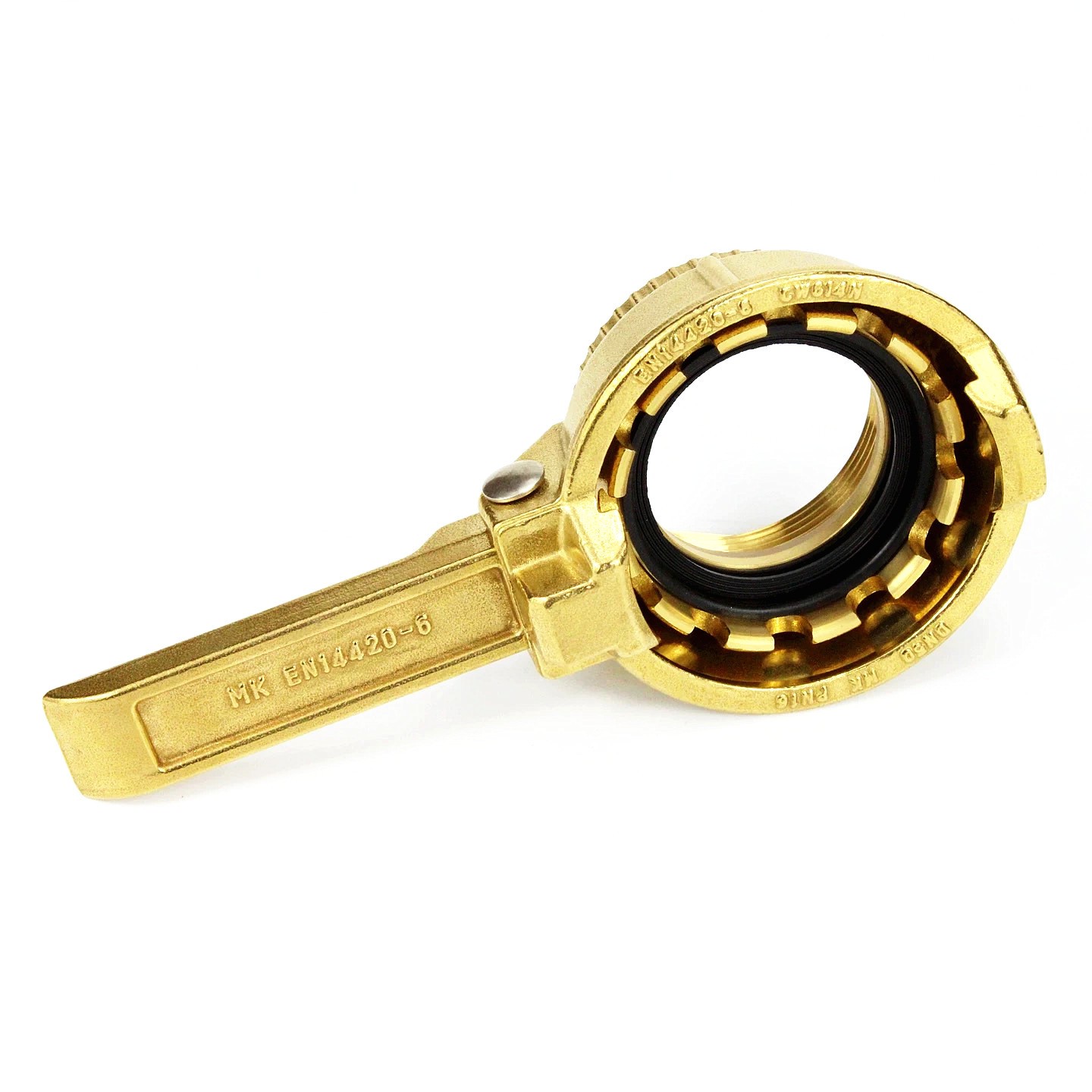

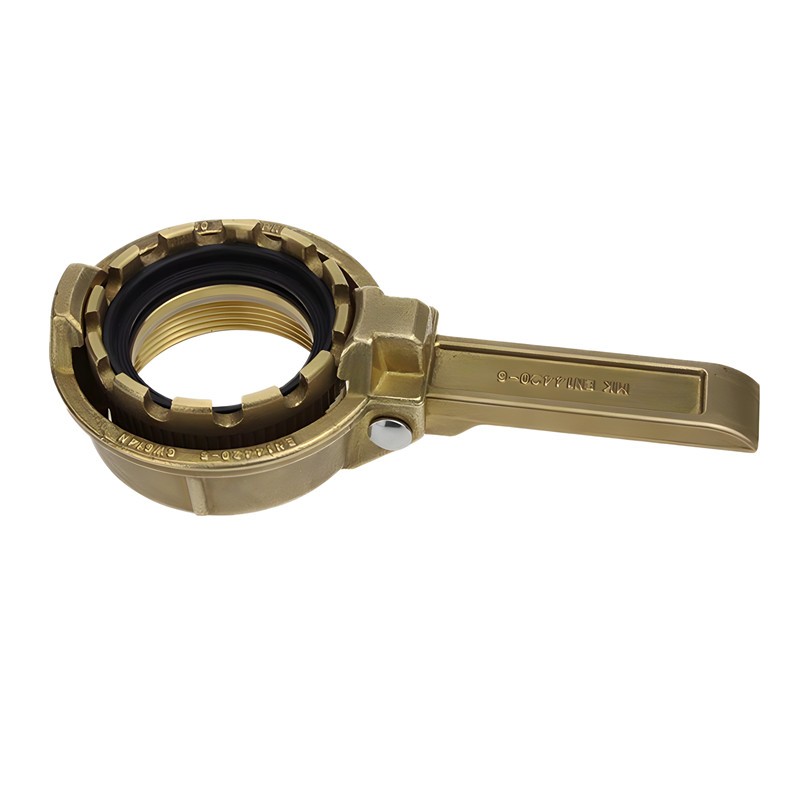

БРС МК80BR Tankwagen TW coupling
Tankwagon coupling DIN28450, TW couplings / Tank truck couplings
TW couplings acc. EN14420-6 are widely used on European tankers and industrial applications.
It consists of MK part and VK part, being locked together by a turn of the couplings and then secured by a locking handle.
It is available in brass & stainless steel in sizes 2", 3" & 4".

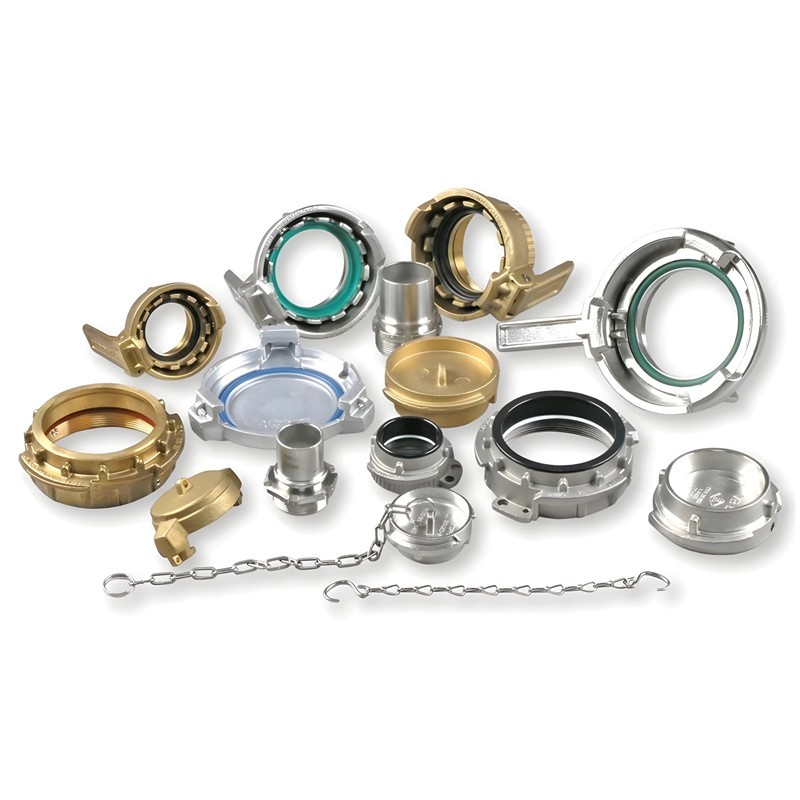

Blank caps MB & plugs VB are also available to compliment this range.
TW couplings acc. EN14420-6 are widely used on European tankers and industrial applications.
Standard: EN14420-6, DIN28450
Application: TW Coupling are used for the transport of liquid,solidand gas, with the exception of liquefied gas and steam.
Material:
1.Stainless steel AISI316/1.4408 by investment casting2.Brass CW614N by forging
3.Aluminium by forging
4.Polypropylene
Part: VK, MK, VB, MB
Size: 2", 3", 4"Gasket:NBR, PU, PTFE, Hypalon
